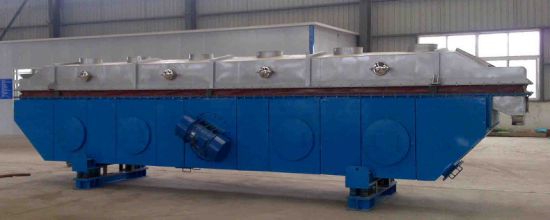

Vibrating Fluid Bed Dryer & Drying Machine (ZLG)

Quantity:
  • 60
  • Naked Packaging
  • L/C, T/T, Western Union
  • ZLG Series
  • Parallel Flow
  • Gas Atomization
  • Air-Flowing Type
  • Combined
  • Granules or Powders
  • sb
  • CE, GMP, ISO
  • Jiangsu, Changzhou
  • 8430900009
  • Transmission
  • Inactive Gas
  • Atmospheric Dryer
  • Fluidized Bed Drier
  • Continuous
  • for Food, Pharmaceutical, or Chemcial Industry
It is widely applied in chemical industry, light industry, pharmaceutical, food, plastics, grain and oil, slag, salt, sugar and other industries of powder particle materials drying, cooling, humidifying, etc.

Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%;
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life;
The fluidized state is stable and no dead angle and phenomenon of broken out;
It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted through continuos variable speed;
It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have anomaly shape;
It is effective to prevent from cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.

Principle of work
Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out hot heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and duster and the dry raw material is discharged through discharge outlet.

Scope for application
Pharmaceutical and chemical industries: All kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on;
Foodstuff and construction material industries: Less, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on;
It can also used for raw materials to add up damp or cooling and so on.

Welcome to send us your specific requirements to us.



Model
Area of fluidized-bed ( m2)
Temperature of inlet air ºC
Temperature of outlet ºC
Capacity to vapor moisture ( kg/h )
Vibration motor
model
power(kw)
ZLG0.30x3
0.9
70-140
40-70
20-35
ZDS10-6
0.75×2
ZLG0.30x4.5
1.35
35-50
ZDS10-6
0.75×2
ZLG0.45x4.5
2.025
50-70
ZDS10-6
1.1×2
ZLG0.60x4.5
2.7
70-90
ZDS10-6
1.1×2
ZLG0.45x6
2.7
80-100
ZDS10-6
1.1×2
ZLG0.60x6
3.6
100-130
ZDS25-6
1.5×2
ZLG0.75x6
4.5
120-170
ZDS25-6
1.5×2
ZLG0.9x6
5.4
140-170
ZDS30-6
2.2×2
ZLG0.60x7.5
4.5
130-150
ZDS30-6
2.2×2
ZLG0.75x7.5
5.625
150-180
ZDS40-6
3.0×2
ZLG0.9x7.5
6.75
160-210
ZDS40-6
3.0×2
ZLG1.2x8
9.6
200-280
ZDS50-6
3.7x2
