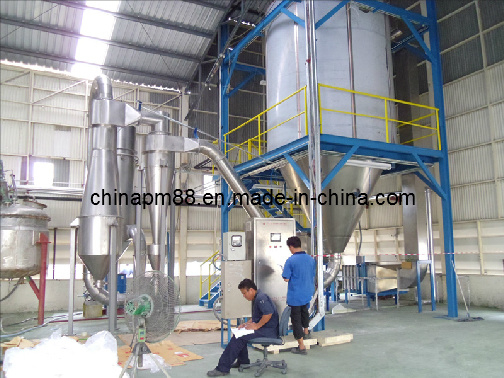

LPG High Speed Atomizer Centrifugal Spray Dryer

Quantity:
  • Shanghai, China
  • 3000units/Year
  • T/T, Western Union
  • LPG-100
  • Spray Dryer for Pharmaceutical Manufacturing
  • Drying Liquid Material to Be Granules
  • Herb Material Dryer
  • for Milk Powder Manufacturing
  • for The Drying of Cosmetics
  • SYQ
  • Strong Export Packaging
  • GMP
  • Shanghai
  • 84339090
  • Transmission
  • Powder, Solution, Cream, Strap, Bulk
  • Gas Atomization
  • Contra-Flow
  • Electricity, Steam, Coal Gas, Natural Gas, Fuel
  • Centrifugal Spray
GMP Standard Made of SUS304 Stainless Steel.Spray Dryers are relatively simple in operation which accept feed in fluid state and convert it into a dried particulate form by spraying the fluid into a hot drying medium.
Food atomization is done using high pressure nozzle, high pressure air, two fluid nozzles or centrifugal disc atomiser. The heating of drying air can be of either steam coils or thermic fluid or air heater according to the service conditions available. The hot air is distributed into the chamber from top by an air dispenser.

The final product is taken out from the spray dryer along with air to a cyclone separator for fines separation and the final powder gets collected at the bottom. Additional systems like fines recycling into the chamber for agglomeration, powder cooling, conveying, storage & bagging can also be supplied.


Application:
  • Milk Powder
  • Ceramic Slurry
  • Molasses
  • Enzymes
  • Calcium Chloride
  • Herbal Extracts
  • Ice Cream Mix Powder
  • Whey Powder
  • Polyvinyl Acetate
  • Poly Aluminum Chloride
  • Effluent Concentrates
  • Instant Coffee
  • Bakers Yeast
  • Fruit Juice Powder
  • Egg Powder
  • Dyes
  • Instant Tea
  • Magnesium Chloride
  • UF Resin
  • Protein Hydrolysates
  • Catalysts
  • Instant Chicory etc
    LPG High Speed Atomizer Centrifugal Spray Dryer
item\parameter\spec LPG
5 25 50 100 150 200-2000
inlet temperature 140-350 automatically controlled
outlet temerature ~80-90
Max.water evaporation capacity 5 25 50 100 150 200-2000
centrifugal spraying nozzle transmission mode compressed air transmission Mechanical transmission
Rotation speed rpm 25000 18000 18000 18000 15000 8000-15000
sprayingdesc diameter mm 50 100 120 140 150 180-340
Heat supply Electricity Electricity+steam Electricity+steam,fuel oil and gas Settled by users themselves
Max.Electric heating power kw 9 36 63 81 99
overall dimensions m 1.8×0.93
×2.2
3×2.7
×4.26
3.7×3.2
×5.1
4.6×4.2
×6
5.5×4.5
×7
Depends on the concrete conditions
Dried powder restoring tate % ≥95 ≥95 ≥95 ≥95 ≥95 ≥95
Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the following diagram for reference
