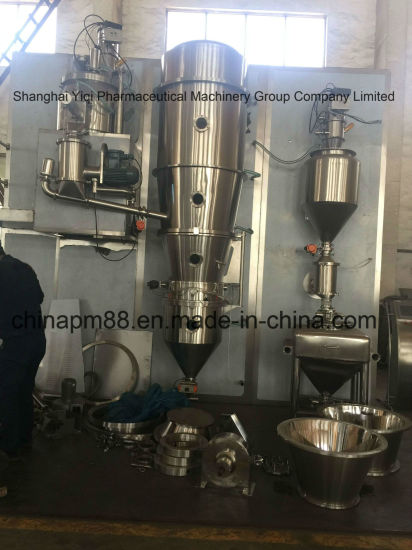

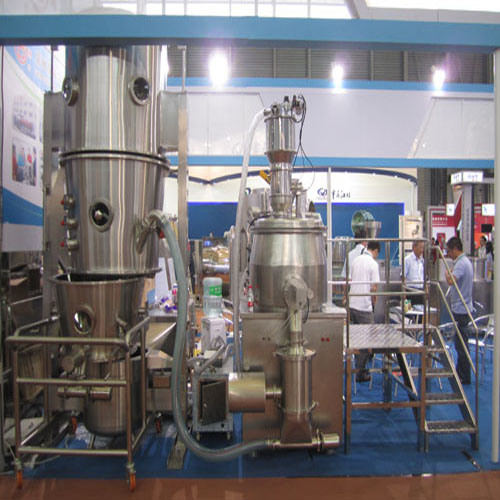

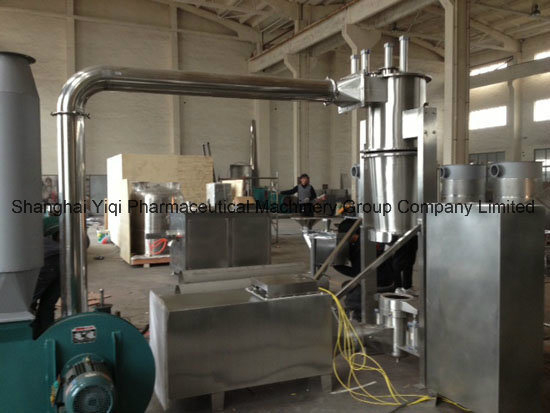

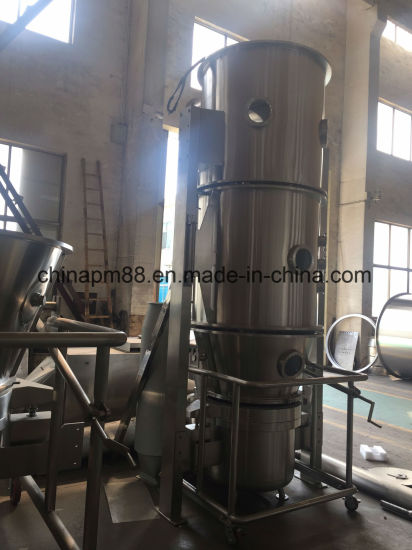

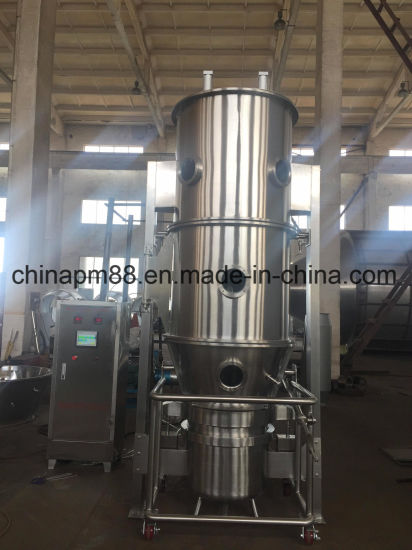

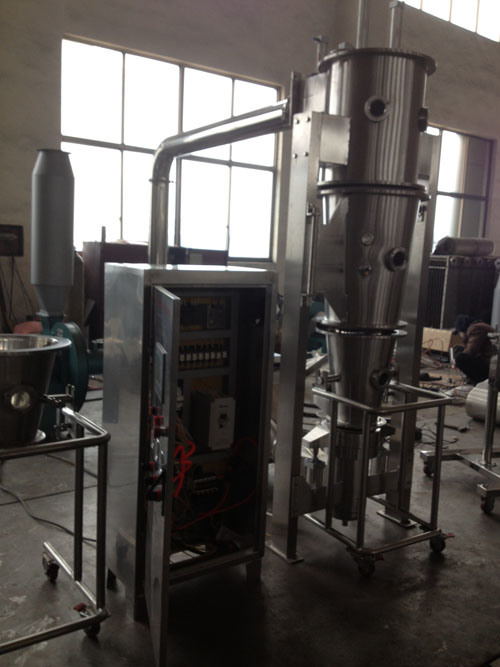

Laboratory Small Scaled Fluid Bed Drying Granulator

Quantity:
  • Shanghai, China
  • 700/Y
  • L/C, T/T, Western Union
  • DLP-1
  • Customized
  • New
  • <1 Year
  • for Laboratory Use
  • for Chemical Industry
  • czy
  • Veneer Case
  • 1kg/batch
  • Jiangsu Province
  • 8479899090
  • Preparation Machinery
  • Granules
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
Functions:
Multi-function including drying, granulating and coating in one machine.
Powder material granulating.
Chinese medicine spray drying, granulating.
Could make 10-30 meshes big granules.
Powder, granule, agglomerate material drying.
Designed, manufactured and laid out by GMP
Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low
Adopting double chamber filtering bags system, remove dust completely

Technical parameters:

Item Unit Specification
Container volume L 12
Capacity g/batch 500~1000
FAN kw 0.75
Power of electrical heater kw 1.5
Compressed air pressure Mpa 0.4-0.6
compressed air consumption M3/min 0.3
Peristaltic pump flow L/h 0~100
Temperature range ºC Room temperature~90
Electric power
380V 50HZ
