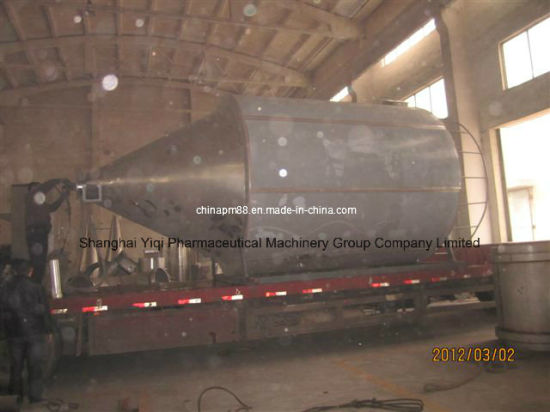

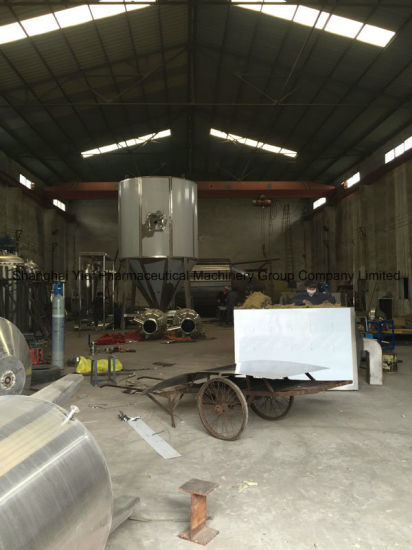

LPG Centrifugal Spray Dryer

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 3000units/Year
Payment Terms: L/C, T/T, Western Union
Model NO.: LPG-150, LPG-100, LPG-10
Trademark: SB
Specification: GMP
Origin: Shanghai
HS Code: 84339090
Spraying Equipment for Chemical Industry: Spray Dryer for Pharmaceutical Manufacturing
for Drying Liquid Into Powders: Drying Liquid Material to Be Granules
Aloe Powder Dryer: Herb Material Dryer
Chemical Products Drying: for Milk Powder Manufacturing
for Pesticide Drying: for The Drying of Cosmetics
Transport Package: Strong Export Packaging

Product Description

GMP Standard Made of SUS304 Stainless Steel.Spray Dryers are relatively simple in operation which accept feed in fluid state and convert it into a dried particulate form by spraying the fluid into a hot drying medium.
Food atomization is done using high pressure nozzle, high pressure air, two fluid nozzles or centrifugal disc atomiser. The heating of drying air can be of either steam coils or thermic fluid or air heater according to the service conditions available. The hot air is distributed into the chamber from top by an air dispenser.

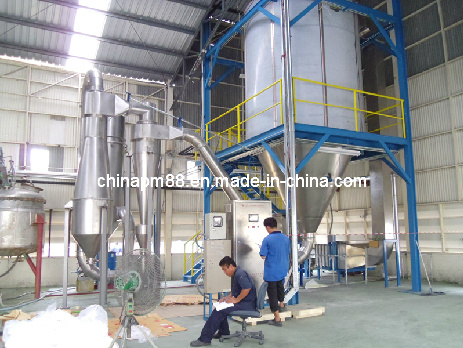

The final product is taken out from the spray dryer along with air to a cyclone separator for fines separation and the final powder gets collected at the bottom. Additional systems like fines recycling into the chamber for agglomeration, powder cooling, conveying, storage & bagging can also be supplied.

Application:

Milk Powder
Ceramic Slurry
Molasses
Enzymes
Calcium Chloride
Herbal Extracts
Ice Cream Mix Powder
Whey Powder
Polyvinyl Acetate
Poly Aluminum Chloride
Effluent Concentrates

Instant Coffee
Bakers Yeast
Fruit Juice Powder
Egg Powder
Dyes
Instant Tea
Magnesium Chloride
UF Resin
Protein Hydrolysates
Catalysts
Instant Chicory etc

item\parameter\spec	LPG
item\parameter\spec	5	25	50	100	150	200-2000
inlet temperature	140-350 automatically controlled
outlet temerature	~80-90
Max.water evaporation capacity	5	25	50	100	150	200-2000
centrifugal spraying nozzle transmission mode	compressed air transmission	Mechanical transmission
Rotation speed rpm	25000	18000	18000	18000	15000	8000-15000
sprayingdesc diameter mm	50	100	120	140	150	180-340
Heat supply	Electricity	Electricity+steam	Electricity+steam,fuel oil and gas			Settled by users themselves
Max.Electric heating power kw	9	36	63	81	99
overall dimensions m	1.8×0.93 ×2.2	3×2.7 ×4.26	3.7×3.2 ×5.1	4.6×4.2 ×6	5.5×4.5 ×7	Depends on the concrete conditions
Dried powder restoring tate %	≥95	≥95	≥95	≥95	≥95	≥95
Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the following diagram for reference
