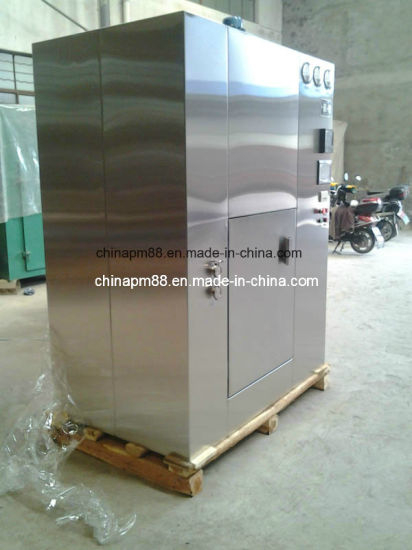

Ce Approved High Quality China Manufactured Sterilized Drying Oven (DHM)

Quantity:
  • 1 Set
  • Shanghai, China
  • 800PCS/Y
  • L/C, T/T
  • DHM-2
  • Contra-Flow
  • Gas Atomization
  • Pressure-Type
  • SYQ
  • Wooden Cases of Export Standard
  • CE, GMP standard
  • Jiangsu Province
  • 8430909090
  • Combined
  • Transmission
  • Dry Heat Oven
  • Continuous
  • for Vials, Bottles Sterilizing
  • Air Flow Drier

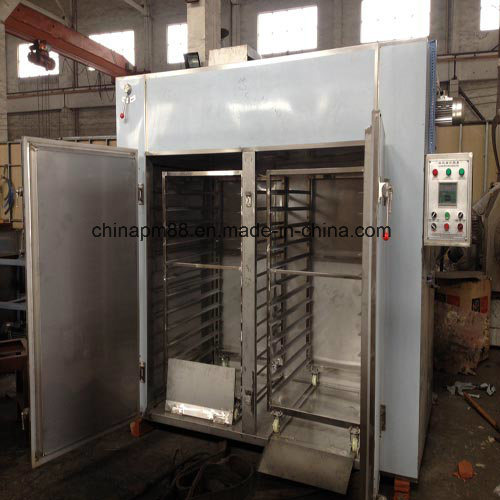

General description: the equipment is used for the stability of materials after cleaning sterilization removing pyrogen by hot air way of intermittent, put the material into the oven, turn on PLC control system, internal circulation fan, heating,
butterfly valves open at the same time, the rapid warming drying box. Under the action of internal circulation draught fan, dry and hot air through the high temperature resistant HEPA filter into the box, the formation of a uniform distribution of air delivery in vivo to box in the micro regulation, dry air absorbent surface of the water, into the heating channel evaporation discharge, dry air direction under the action of the fan flow. With water vapor, and gradually reduce the gap of supply fresh air filtration, the micro positive pressure condition in the end, constant temperature, process control. Turn on forced air cooling (water), automatic butterfly valve in the closed state, the acousto-optic prompt to open the door. Under normal circumstances a sterile room door at the end of cooling point 60 DC
in sterilization procedures can open the door (cooling temperature can be set, the general cooling temperature at 60-80DC).
This document will describe the requirements of integrated equipment.
1) using temperature: environment temperature to 250 degaree centigrade, and design temperature: environment temperature to 300 degree centigrate.
2) design of double door type, double interlocking, wall mounted.
3) Wind flow way: horizontal laminar flow.
4) the public support system: voltage: AC 220V/380V 50Hz

:
Power: three-phase five wire AC
cooling: forced air cooling.
Equipped with programmable controller, man-machine interface touch screen, differential pressure meter, automatic exhaust valve, with heating, drying, sterilization, in addition to heat, cooling, humidity, alarm and other functions.

Printer: real-time temperature display, print, sterilization, cooling temperature, time, batch number, the operator code etc.

TECHNICAL PARAMETERS
Product Model
(Shanghai yiqi pharmaceutical machinery group)
Cavity Room Dimension (mm) Overall Dimension (mm) Heating Power (kw) Maximum Amount of Circulating Air by Frequency Conversion Adjustment (m³/h) Maximum Amount of Supplementary Air by Frequency Conversion Adjustment Usage Amount of Cooling Water (kg/ batch)
Width Depth Height Width Depth Height
DMH-1 600 500 750 1700 850 1950 9 3800 426 150
DMH-2 800 800 1000 1900 1150 2100 15 4900 426 180
DMH-2 900 900 1250 2100 1250 2300 19 5600 426 180
DMH-3 1000 1000 1200 2100 1350 2300 22 6800 504 200
DMH-3A 1000 1000 1500 2100 1350 2600 25 7400 504 220
DMH-4 1000 1200 1500 2100 1550 2600 28 8200 504 250
DMH-5 1000 1400 1450 2100 1750 2550 30 9800 504 300
DMH-5A 1000 1800 1400 2100 2150 2500 40 13600 702 350
DMH-6 1000 2150 1400 2100 2500 2600 45 14400 702 400
DMH-6A 1000 2500 1400 2100 2850 2500 50 14800 702 450
DMH-7 1100 2300 1600 2200 2650 2700 55 14800 702 550
DMH-8 2000 1800 1400 3100 2150 2500 70 20400 870 750
DMH-9 2000 2000 1500 3100 2350 2600 75 21600 870 850
DMH-10 2000 2650 1500 3100 3000 2600 90 22200 870 1000
DMH-11 2500 2650 1500 3600 3000 2600 110 27200 870 1150
DMH-12 2500 3000 1600 3600 3350 2700 130 29600 870 1350
