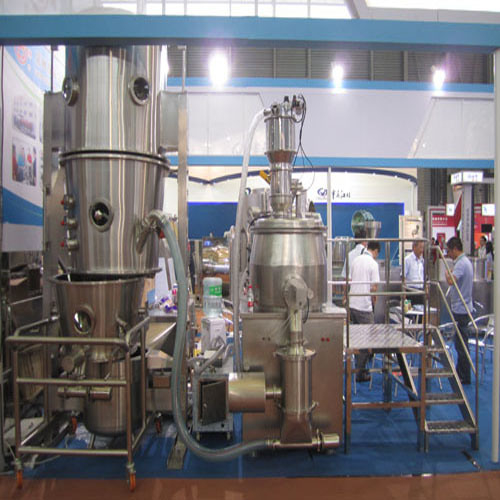

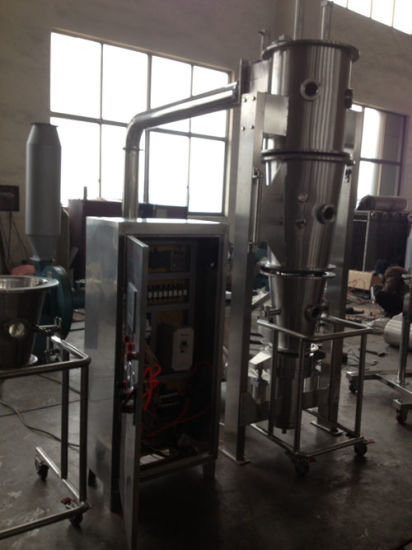

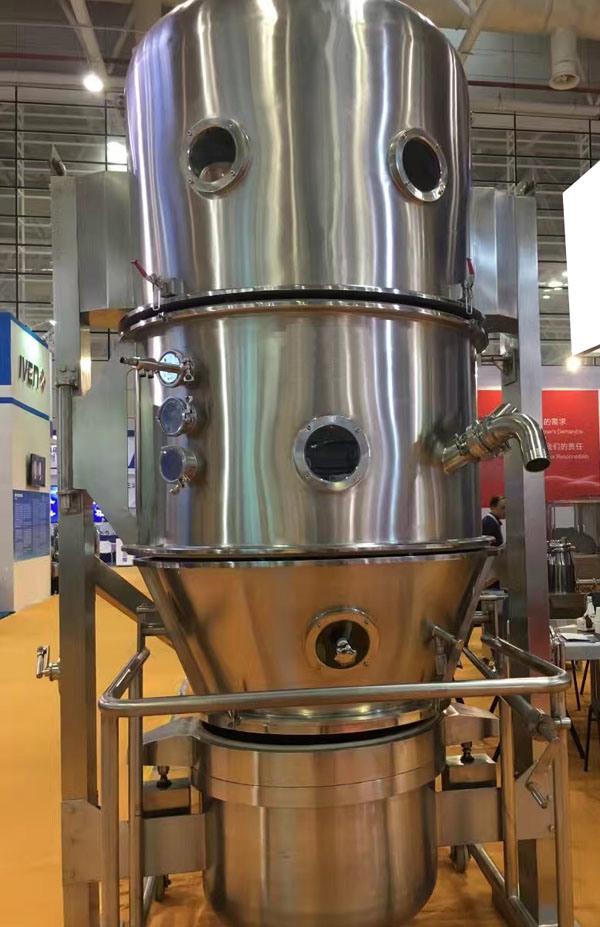

Pharmaceutical Fluidized Bed Drying Machine (FG MODEL)

Quantity:
  • Shanghai, China
  • 500/Y
  • L/C, T/T, Western Union
  • FG-50
  • Customized
  • New
  • 1 Year
  • for Pharmaceutical Industry
  • syq
  • Standard
  • GMP ISO CE
  • Shanghai, China
  • 8419309000
  • Preparation Machinery
  • Granules
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
GMP standard machine. It is main applied for drying powder or granules in pharmaceutical, foodstuff, and chemical industries.
Fluid bed to achieve fast heat transmission of medium.
Seal negative pressure operation, there is no dust.
Because of using anti-static material as filter, it is safe in operation;
The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
It is in conformity with the requirements of GMP.

Spec 3 5 30 60 120 200 300 500 1000
item unit
container raw material dim mm 300 400 700 1000 1200 1400 1600 1800 2200
volume L 12 22 100 220 420 670 1000 1500 2500
production capacity min Kg/batch 1.5 4 15 30 80 100 150 250 500
Max Kg/batch 4 6 36 72 140 240 360 600 1100
consume of steam Kg/batch 12 23 70 140 211 282 366 465 800
amount of compressed air m3/min 0.3 0.3 0.3 0.6 0.6 0.9 0.9 0.9 1.5
power of fan kw 2.2 4 5.5 11 18.5 22 30 45 75
temperature DC Adjustable from ambient to 120
collection rate % >99
time of operation min 15-30 (depends on material)
content of final product % ~0.2 (depends on material)
noise db ≤75
height of main machine mm 2100 2300 2500 3000 3300 3800 4000 4800 6200

Pharmaceutical Fluidized Bed Drying Machine (FG MODEL)
