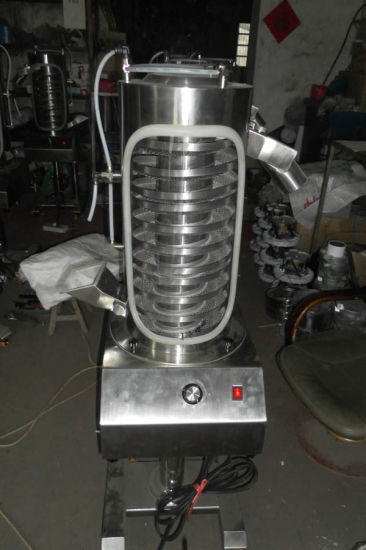

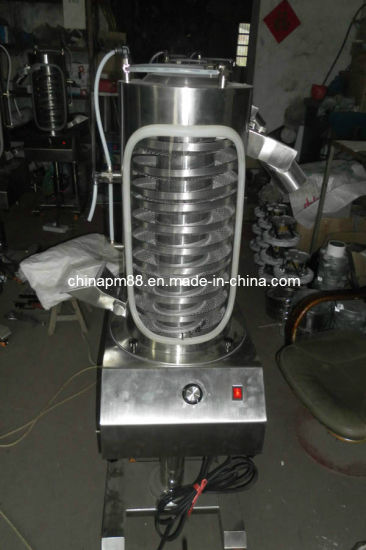

Upright Type Automatic Tablet Depowdering Machine

  • Shanghai, China
  • 60000PCS/Y
  • L/C, T/T

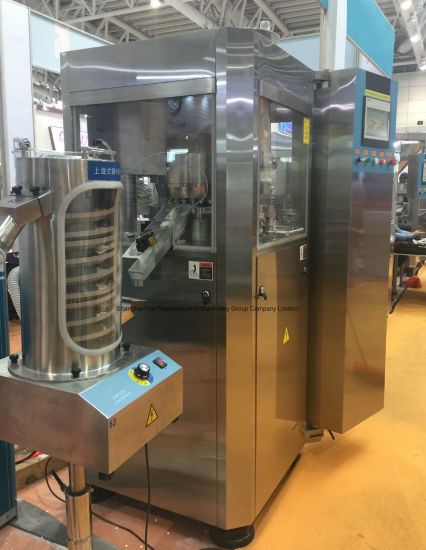

This uphill deduster is able to act as both elevating and dedusting machine. It is applied as an important auxiliary machinery with any model of tablet press machine. It is with multifunction of polishing, dedusting, and detecting the metal materials and it extremely applicable in the field of pharmacy, chemical engineering, electronics and food.


This machine is with the advantage of long dedusting path, automatic tablet polishing on all tablet sides, and high quality dedusting without damage to the tablets. The main contact parts on tablets are made of SUS316L or SUS304 comply with the standard of GMP. The main working chamber of machine is designed with block style and the discharging port of the machine is easy to be adjusted. This machine is with the structure of easy & quick installation. The Quick assembling connection structure makes the machine working more efficiently and easy disassembled. Which is easy clean with no dead corner. The machine can do 360 degree circumference adjustment, convenient production, save space, convenience for working and operation. This machine could work for 3-35mm tablets in large scale manufacturing. With the new design, the machine working stably and with low noise.

Max.working capacity(pcs/h)800000(6mm tablets)
Dedusting route(m)6
Max.lift height1220
Max.tablet diameter(mm)25
Power supply1P 220/110V 50-60Hz
Overall dimensions(mm)550*550*1350
Compressed air0.1m3/min 0.05Mpa
