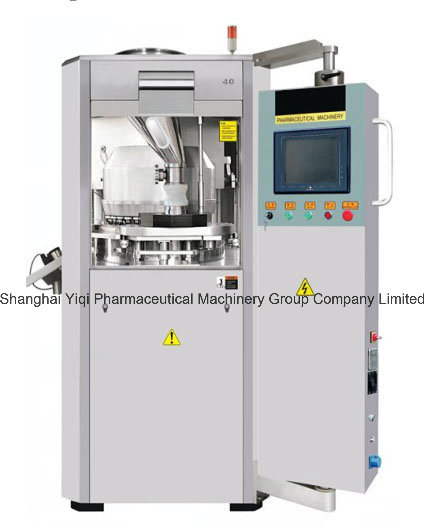

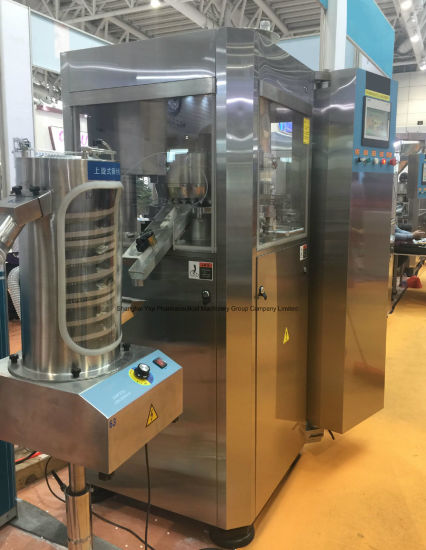

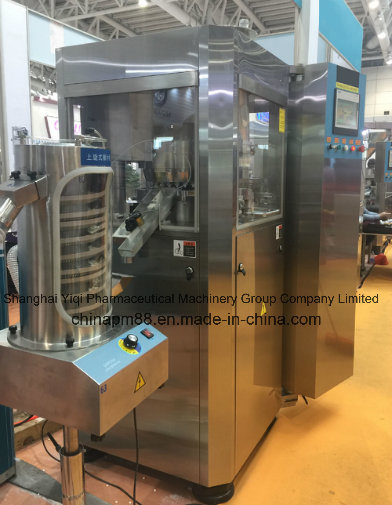

Gzpt-26 High-Speed Rotary Tablet Press Machine with Precompression Function

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
5000
Payment Terms:
L/C, T/T, Western Union, Paypal
Model NO.:
GZPT-26-32-40-45
Customized:
Non-Customized
Condition:
New
Warranty:
1 Year
Weight:
1700kg
Cbm:
2cbm
Capacity:
170000 PCS/H
Max Tablet Diameter:
25mm
Trademark:
SYQ
Transport Package:
Strong Polywood Case
Specification:
GZPT-26
Origin:
Shanghai
HS Code:
8479899090
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

This machine had realized on-line pressure checking,analyze and judgment, Automatically adjust powder filling depth, to achieve automatical control during tablet production period meantime monitoring punches & die situation and powder supply as safeguard which greatly reduce production cost, increase tablet qualitified rate.

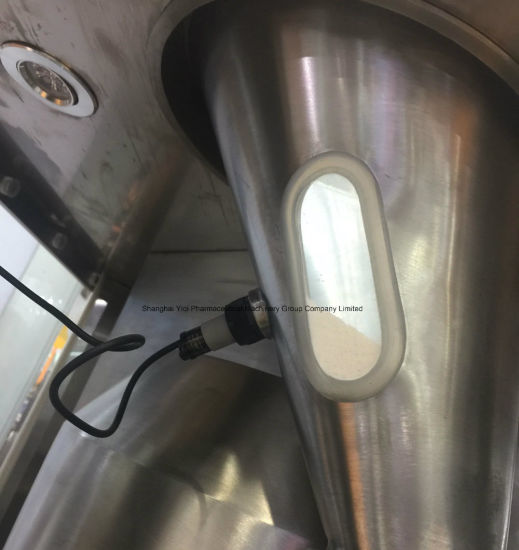

1) With f eeding material automatic detection system .
2) The force feeder device could improve liquidity and filling for the granules.
3) Wtih t ablet Rejection function in bulk or singly by detection of compression pressure.
4) Advanced lubrication system, punches installed with oil proof loops, avoiding pollution .

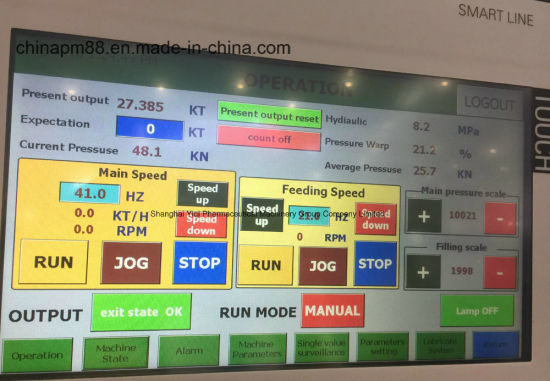

5) Automatic PLC-Touch Screen Control System .
6) GMP standard.
7) EU toolings.

Technical parameters:

Model	GZPT-26	GZPT-32	GZPT-40	GZPT-45
Type of Punch and Dies( EU)	D	B	BB	BBS
Qty of stations	26	32	40	45
Max tablet diameter(mm)	25	16	13	11
Max abnormal prolate axis size(mm)	25	18	16	13
Max. Working capacity(pcs/h)	170000	210000	260000	280000
Max. Filling Depth(mm)	20	18	18	18
Max. Main Pressure(KN)	100	80	80	80
Max. Pre-pressure	20	20	20	20
Idle load noise(DB)	<75
Power	380V, 50Hz, 9.5KW
Dimensions(mm)	7808601930
G.W	1700
