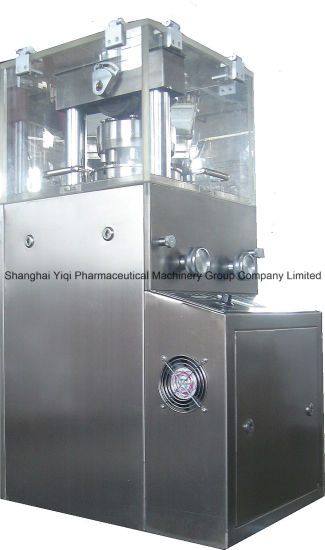

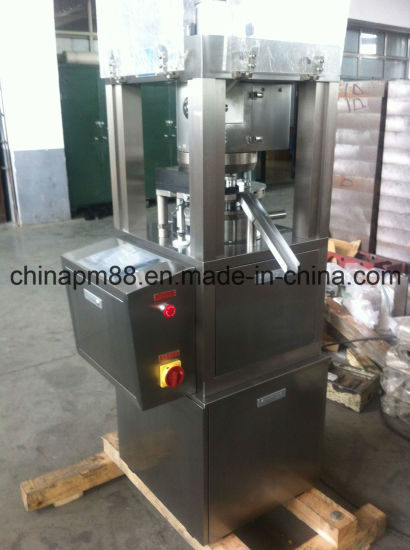

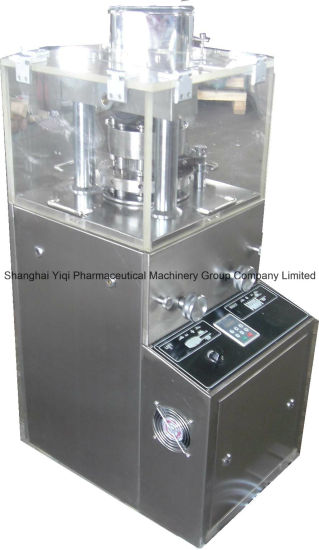

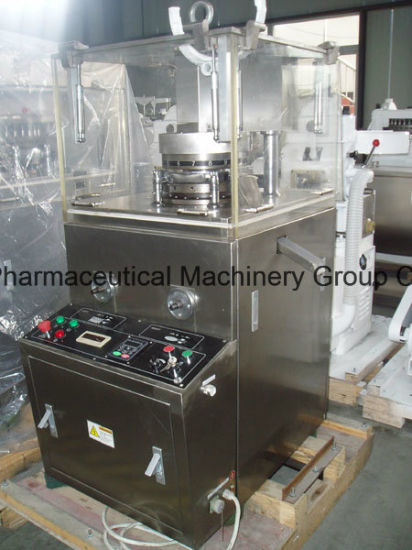

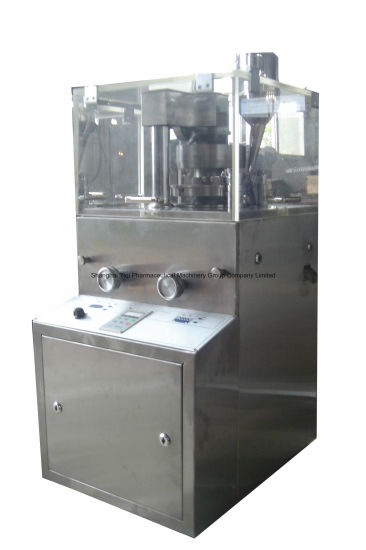

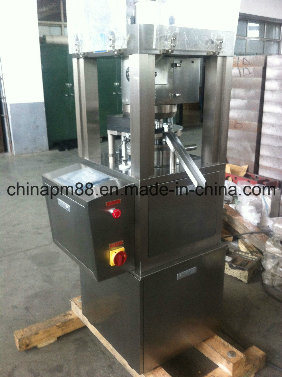

ZP 5/7/9 mini rotary tablet press
The tablet press, Mini in size and Single Rotary is an ideal choice for R&D work as well as small scale productions. It is also used to avoid wastage when high value ingredients are used for tablet formulations, also known as lab tablet press. The mini tablet press is designed with GMP considerations. It is sturdy, fitted with single sided turret of special grade Iron Casting.
1) ZP 5/7/9 rotary tablet press (Tablet Compression machine) is a single-sided press machine.
2) It continues automatic working for pressing powder raw materials into tablets. It is mainly used in pharmaceutical, chemical, food and electronic industries.
3) The cover of ZP 5/7/9 rotary tablet press is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution.
4) ZP 5/7/9 punching automatic rotary tablet press meets GMP requirement.
5) Easy cleaning and maintenance.
6) The speed is adjustable.
7) An overload protection unit is included in the system to avoid the damage of the punches and apparatus. When overloaded, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running.
| Item | unit | ZP5 | ZP7 | ZP9 |
| Dies | sets | 5 | 7 | 9 |
| Max. Pressure | kn | 60 | ||
| Max. Filling Depth | mm | 15 | ||
| Max. Dia. of Tablet | mm | 20 | ||
| Max. Thickness | mm | 6 | ||
| Capacity | Pcs/h | 9000 | 12600 | 16200 |
| MOTOR | 2.2KW 380V 50Hz | |||
| verall Size | mm | 480*630*1100 | ||
| N.W | kg | 380kg | ||

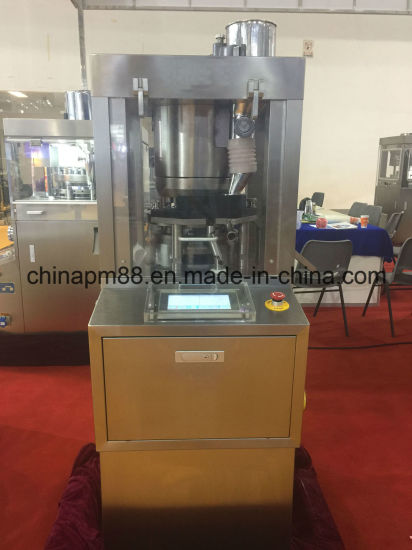

You may have other choices for R & D, the model ZPS8 is with IPT tooling, PLC & Touch screen control with pre-compression 10KN. For more details welcome to check with us. Here is the basic information:
Technical parameters:
| Model | ZPS8 | ZPS10 | ZPS20 |
| Dies (sets) | 8 | 10 | 20 |
| Type of Tooling | 1'D | 1'D | 3'/4' BB |
| Max. Pressure (Kn) | 60 | 60 | 60 |
| Max. Pre-Pressure (Kn) | 10 | 10 | 10 |
| Max. Tablet Diameter (mm) | 25 | 22 | 16 |
| Max. Filling Depth (mm) | 17 | 17 | 17 |
| Max. Thickness of largest tablet (mm) | 6 | 6 | 6 |
| Max. Turret Speed (r/min) | 5-30 | 5-30 | 5-30 |
| Capacity (pcs/hour) | 14400 | 18000 | 36000 |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 |
| Overall dimensions (mm) | 750×660×1620 | ||
| Net weight (kg) | 780 | ||
