This machine is with precompression, which is an intelligent mini rotary tablet press machine/pharmaceutical machinery. It is applied to the R & D centers of pharmaceutical industry, laboratories and other small batch production of tablets.

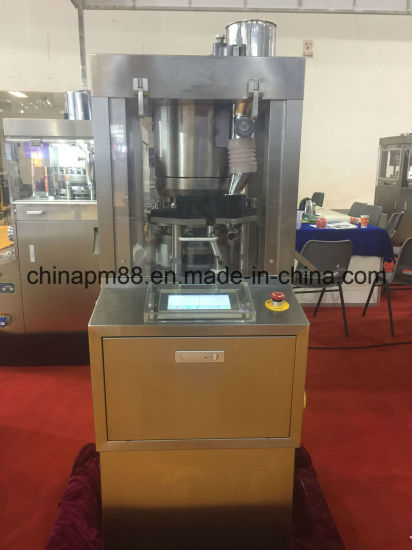

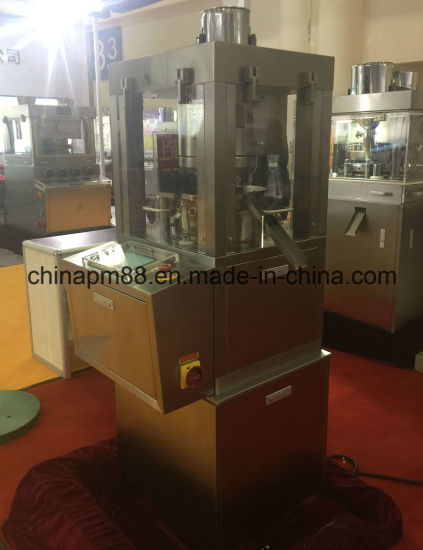

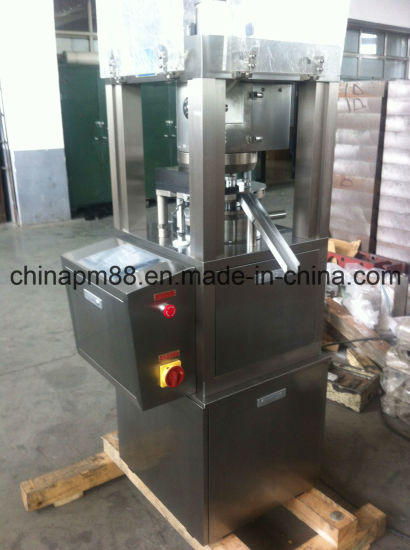

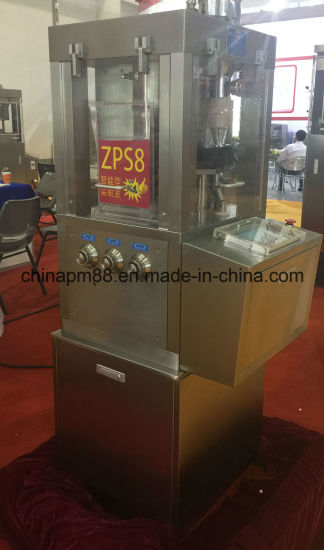

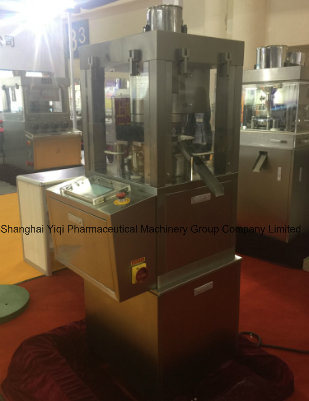

ZPS8 Mini Rotary Tablet Compression Machine
Characteristics
1. It is a single compression tablet press machine. With IPT D tooling punches and dies, which can press granular raw materials into round tablet and a variety of special-shaped pieces.
2. There are two features, pre-compression and main pressure that can improve the quality of the tablet.
3. Adopts PLC speed regulating device, convenient operation, safe and reliable.
4. PLC touch screen has a digital display, if connected with US ports, enabling tablet operating state data collection.
5. The main transmission structure is reasonable, good stability, long service life.
6. With a motor overload protection device, when the pressure overload, can shut down automatically. And have overpressure protection, emergency stop and strong exhaust cooling devices.
7. Stainless steel external casing is fully enclosed; all spare parts to be in contact with the materials are made of stainless steel or surface treated specially.
8. The compression area is enclosed with transparent organic glass, can fully open, easy to clean and maintain.
9. Optional forced feeder or ordinary feeder.
10. PLC control & touch screen can display working turntable speed. The working pressure, filling depth, pre-compression, thickness and capacity of tablets, will be displayed and the working status of each punch in immediate working pressure, and can set the average pressure of dies.
11. The impeller speed of forced feeder also can be displayed. It can display the contents of emergency stop, motor overload, system overpressure and other faults.
Technical parameters:
| Model | ZPS8 | ZPS10 | ZPS20 |
| Dies (sets) | 8 | 10 | 20 |
| Type of Tooling | 1'D | 1'D | 3'/4' BB |
| Max. Pressure (Kn) | 60 | 60 | 60 |
| Max. Pre-Pressure (Kn) | 10 | 10 | 10 |
| Max. Tablet Diameter (mm) | 25 | 22 | 16 |
| Max. Filling Depth (mm) | 17 | 17 | 17 |
| Max. Thickness of largest tablet (mm) | 6 | 6 | 6 |
| Max. Turret Speed (r/min) | 5-30 | 5-30 | 5-30 |
| Capacity (pcs/hour) | 14400 | 18000 | 36000 |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 |
| Overall dimensions (mm) | 750×660×1620 | ||
| Net weight (kg) | 780 | ||
