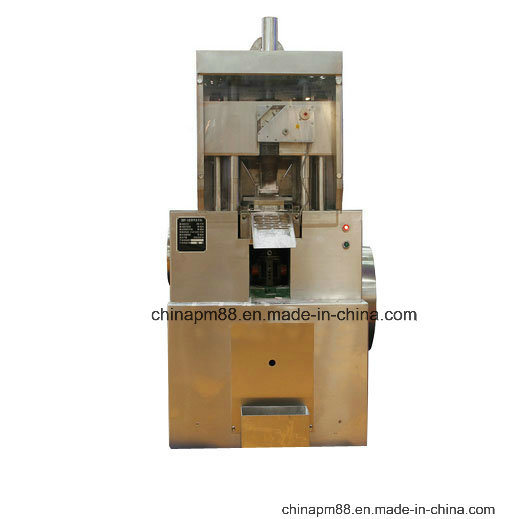

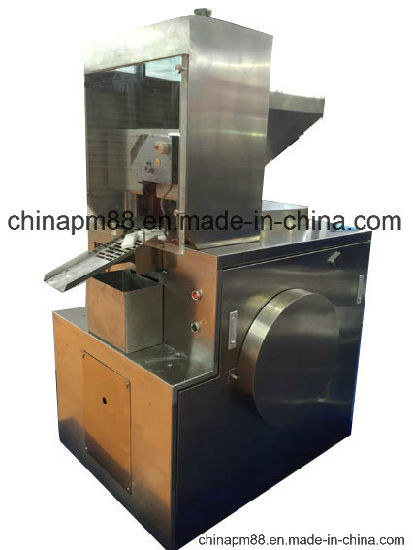

Ddy-2 Tablet Press Machine for Big Tablets

Quantity:
  • Shanghai, China
  • 8000
  • L/C, T/T, Western Union
  • DDY-2
  • Customized
  • New
  • 1 Year
  • 1100kg
  • 1040*930*1600
  • syq
  • Polywood Case
  • single punch tablet press
  • Shanghai
  • 8479909090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
It's applicable for the production of various tablets for pesticide, pharmaceutical, daily chemical industry, food, powder metallurgy and other industries, especially for manufacturing large size tablets and hard forming tablets .
This tablet press machine is to press powder and granul e raw materials into tablets. Machine is d e signed for pressing round, geometrical shape, circular tablets, applicable to pesticide, and chemical industries.

Features
1. This machine is designed and manufactured according to by technology of "under drive transmission single-punch tablet press", it's easy to prevent the contamination from drive lubricant on the tablet. GMP Standard.
2. The tablet press capacity of the machine is very high, and it's particularly applicable for pressing large size tablets and hard forming tablets.
3. Relevant tablet pressing moulds are equipped to press various round tablets, abnormal shape tablets, annular tablets or spherical products.
4. The impact and vibration of the machine is small in working conditions. It's running smoothly without any noises. It's easy to operate even without any experiences.
5. It's easy to observe the operating conditions and convenient to operate and adjust.
6. Energy-saving . It could save 50% power consumption, and with manual press when there is without power supply.
7. The machine is covered by stainless steel materials, which comply with GMP requirements. ( option)

Technical Specifications:
Model DDY-2
Max. pressure (KN) 200
(for continuous working, max.180KN)
Max.tablet pressing diameter(mm) 80
Max. annular tablet outer diameter(mm) 80
Annular tablet aperture (1/4-1/2)outer diameter
Max. filling depth(mm) 50
Tablet capacity(tablets/h) 6000
Weight(kg) 1150

We also provide rotary tablet press machine for different demands of customers, welcome to check with us.

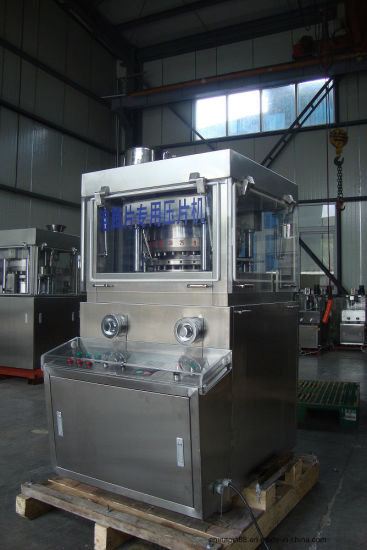

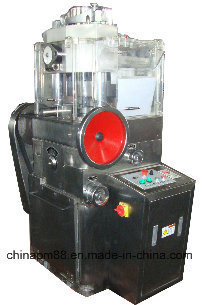

Recommend Model: ZP-17/15B
Ddy-2 Tablet Press Machine for Big Tablets
It is designed for large tablets and hard forming tablets with capacity 40000-45000pcs/h.

Main Technical Parameters
Number of the upper punch die on turntable: ................. ….. 17 /15
Max. Pressure of sheet press (kilo-Newton): ...............….…120
Max. Diameter of sheet press (mm): ......................….. 36mm
Max. depth of filling (mm): ...........................…18mm
Range of the tablet's thickness (mm)........................ 8-15 mm
Turbine transmission ratio: ...............................2:49
Revolution change of turntable (revolution/minute): ............…. 10-25
Output tablets (pieces/hour): ........................ 225 00
Net weight of the machine (kg): ............................1500
Height of the machine (mm): ...........................…..1640
Length and width of the machine (mm):.....................….900*840

For further information, welcome to write to us or call us directly.

Thanks.

Looking forward to cooperating with you.
