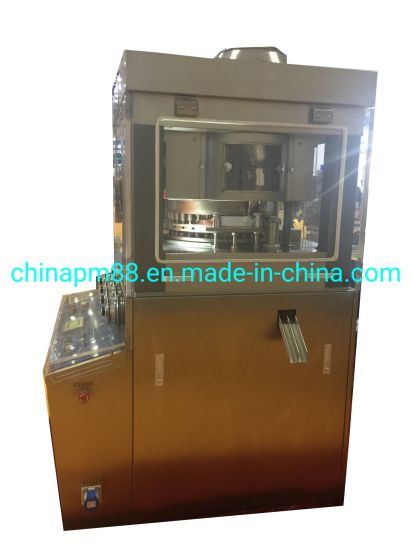

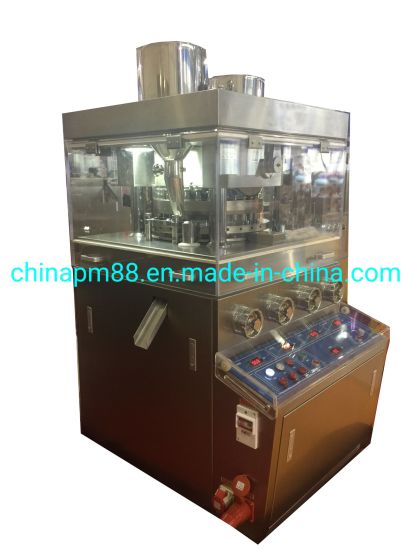

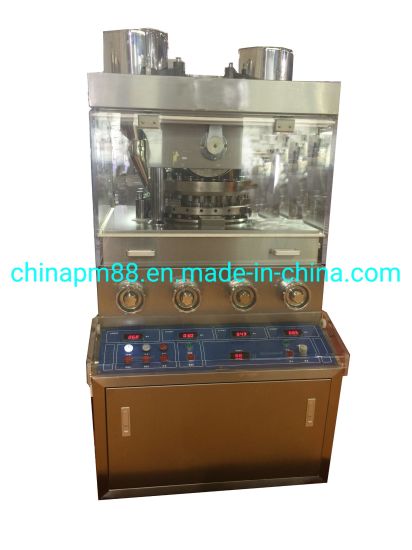

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine / Candy/ Cartoon Tablet/ Medicine/ pharmaceutical machine/ Tablet machine
Rotary tablet press machine, there are 29E, 35E and other models, in line with GMP standards. Working with punch of D type or B type, and it is assembled with force feeder, and with pre-compression system. Structural features: This model is double compression model, Non-standard mold. Could compress the granular raw materials into a larger diameter of the round tablets and various specifications of irregular shaped tablets. with the function of pre-compression and main compression, which could improve the tablet quality. hand wheel adjustment mechanism with digital display, accurate and flexible. The process of filling and thickness adjustment is simplified. variable frequency stepless speed regulating device, easy to operate, safe and reliable. equipped with overload protection device, when the pressure overload, can automatically stop. the stainless steel outer casing is completely closed. All the parts in contact with the medicine are made of stainless steel or treated by the surface, non-toxic and corrosion-resistant. turntable surface after special treatment, can prevent cross contamination. all four sides of the tablet room for transparent plexiglass, and can be opened, easy internal cleaning and maintenance. The interior is equipped with safety lighting. MAIN TECHNICAL PARAMETERS OF IPT35E | Model | IPT35E(standard) | items | IPT35E
B type, standard |
| Quantity of punches and dies (PCS) | 35 | Punching rod diameter (mm) | 19 |
| Max. compression pressure(KN) | 100 | Length of upper and lower punches | 133.35 |
| Max. tablet diameter(MM) | 18 | Medium die diameter (mm) | 30.16 |
| Max. filling depth(MM) | 19 | Medium die height (mm) | 23.812 |
| Max. tablet height(MM) | 10 | Motor(KW) | 5.5 |
| Rotation speed of the turn table(RPM) | 10-24 | Overall dimensions(MM) | 1100×1150×1680 |
| Max. capacity | 150000 | G.W (KGS) | 1950 |
