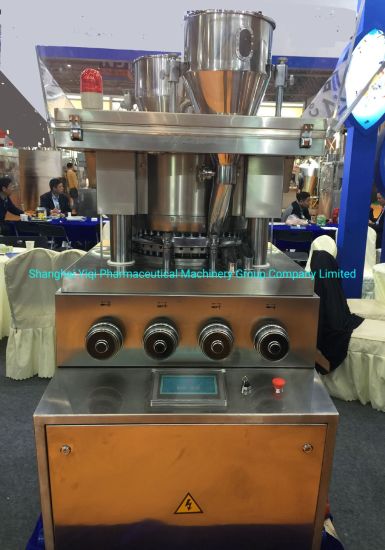

High Speed Tablet Compression Machine with Force Feeding Function Zp45

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
1000
Payment Terms:
L/C, T/T, D/P, Western Union
Model NO.:
ZP-45
Customized:
Customized
Condition:
New
Warranty:
1 Year
G.W:
2000kg
Trademark:
SYQ
Transport Package:
Wooden Case
Specification:
Capacity: 190, 000pcs/h
Origin:
Shanghai
HS Code:
8479820090
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
High Precision
Certification:
CE, GMP
Voltage:
380V
Computerized:
Computerized

Product Description

This is a new developed sub-speed rotary tablet press machine with high working capacity, heavy working pressure to compress the granule materials into various tablets such as round shape tablets, irregular shape tablets and even ring shaped tablets, applied widely to the industries of pharmaceutical, chemical, foodstuff, and electrical etc.

Features

With high working efficiency, the working capacity is up to 200,000pcs/h.
GMP standard. The outside cover and working chamber are made of stainless steel. The turntable is well treated, non-toxic, smooth, and wear-resisting.
Stable running with heavy working pressure, especially it could press the materials of difficult forming.

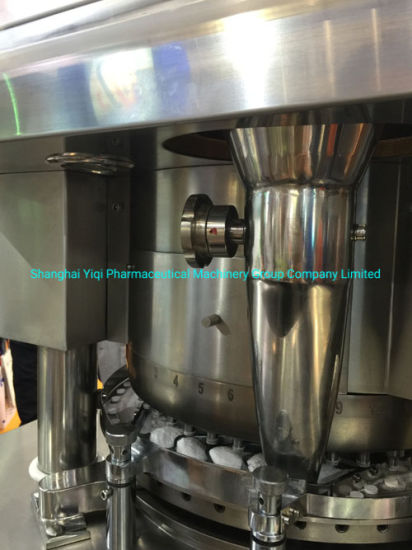

With force feeding device which improves the material fluidity and make sure for high filling precision.
With overload protection device.
Frequency control, easy operation.
The centralized lubrication system of the machine can ensure the oil supply to every lubricating part by the intellectual lubricating pump.
Easy clean and maintenance.
The transmission system is located inside the worm-gear box under the main body, and it is a fully independent part. It cannot be cross-polluted, and the transmission system is fully lubricated with low noise working.
Simply installation and easy changing parts of lower track and lower pressing roller by the new patent design.

Technical parameters

Dies (sets)	45
Max. pressure (KN)	100
Max. dia. of tablet (mm)	Φ13
Max. depth of fill (mm)	17
Max. thickness of tablet (mm)	8
Speed of turret (r/min)	5~36
Max. production capacity(tablets/hour)	190,000
Motor (kW)	5.5
Net weight (kg)	1800
Covering area (mm)	1100×940
Height including the hopper (mm)	1755
Height without the hopper (mm)	1500
