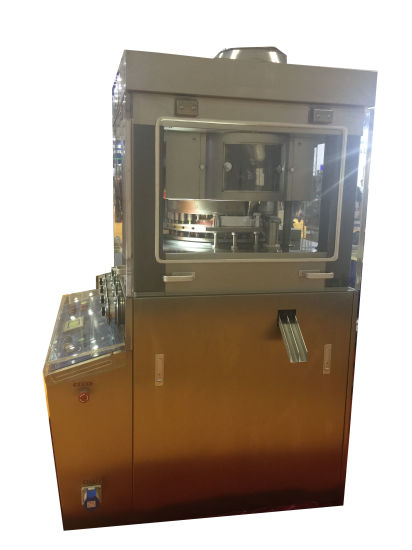

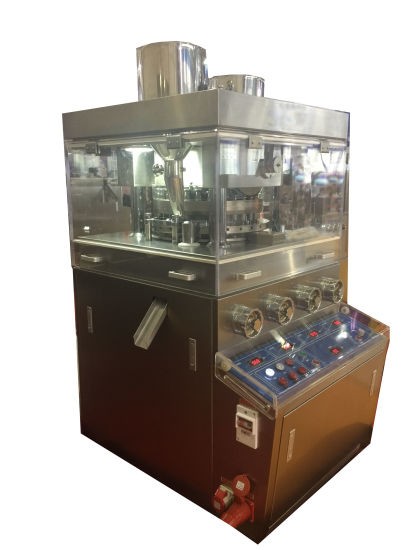

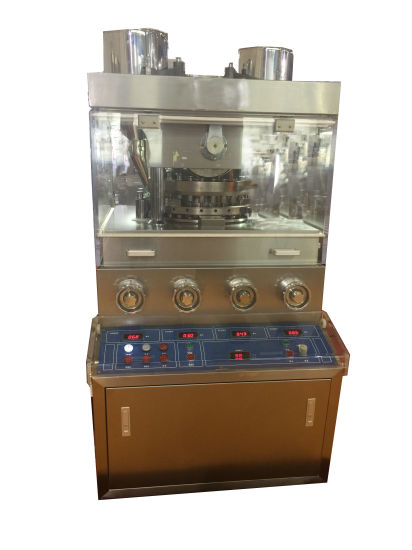

This is a Rotary tablet press With pre-compression Double compress machine, designed for big tablets with max. capacity of 100000pcs. It could compress effervescent tablets and other large tablets with max. diameter 25mm.
Structural features:
This model is double compression model, Non-standard mold.
Could compress the granular raw materials into a large diameter of the round tablets and various specifications of the
special-shaped tablets.with the function of pre-compression and main compression, which could improve the tablet quality.
hand wheel adjustment mechanism with digital display, accurate and flexible. The process of filling and thickness adjustment is simplified.
variable frequency stepless speed regulating device, easy to operate, safe and reliable.
equipped with overload protection device, when the pressure overload, can automatically stop.
the stainless steel outer casing is completely closed. All the parts in contact with the medicine are made of stainless steel or treated by the surface, non-toxic and corrosion-resistant.
turntable surface after special treatment, can prevent cross contamination.
all four sides of the tablet room for transparent plexiglass, and can be opened, easy internal cleaning and maintenance.The interior is equipped with safety lighting.
MAIN TECHNICAL PARAMETERS OF IPT29E
| Model | IPT29E(standard) | items | IPT29E(standard) |
| Quantity of punches and dies (PCS) | 31 | Punching rod diameter (mm) | 25.35 |
| Max. compression pressure(KN) | 100 | Length of upper and lower punches | 133.35 |
| Max. tablet diameter(MM) | 25 | Medium die diameter (mm) | 38.1 |
| Max. filling depth(MM) | 19 | Medium die height (mm) | 23.812 |
| Max. tablet height(MM) | 10 | Motor(KW) | 5.5 |
| Rotation speed of the turn table(RPM) | 10-24 | Overall dimensions(MM) | 1100×1150×1680 |
| Max. capacity | 83520 | G.W (KGS) | 1950 |
CHARACTERS
1.Add 2 sets of pressure regulating worm gear and worm, making pressure regulating easy to operate.
2.The filling and main pressure regulating mechanism adopts the high-precision worm wheel and worm manufacturing technology, which ensures that the filling and main pressure components are not easy to move during the compression process.
3.Main drive worm gear box to take the overall design, rigid enhancement.
4.The pressing chamber is bright and easy to clean. Adopt the whole stainless steel bottom plate, not easy to leak powder to the chassis.
5.The upper guide rail standard is interchangeable, with long wear only need to replace the guide rail circle, no need to remove the top cover, no need to replace the guide rail seat, users save time and effort and economy.
6. Touch screen with digital display function, equipped with USB interface, control the handwheel can be on the PLC screen direct reading data, which can realize every ten minutes tabletting working dynamic data, is advantageous for the factory to the production site data management, data such as input when saving product batch number, production date, production time, the production quantity information such as the better product traceability management in the future).
7.The instant pressure, average pressure, filling quantity and tablet thickness of each punching rod can be measured in real time during tablet pressing.
This machine could work with upright tablet deduster, bottle unscrambler, electronic tablet counter( for packing into bottles) , capping machine, foil sealing machine, and labeling machine to combine an automatic tablet production & packing line.
Welcome to check with us about the packing machinery.
