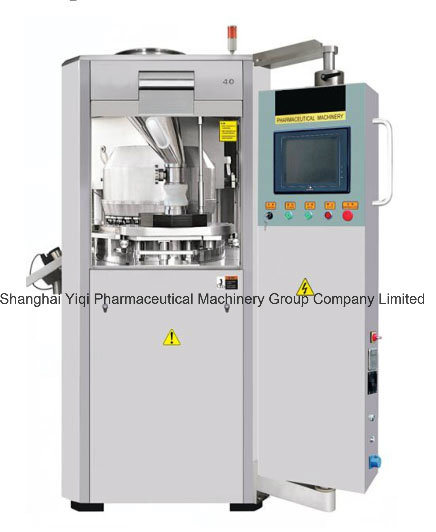

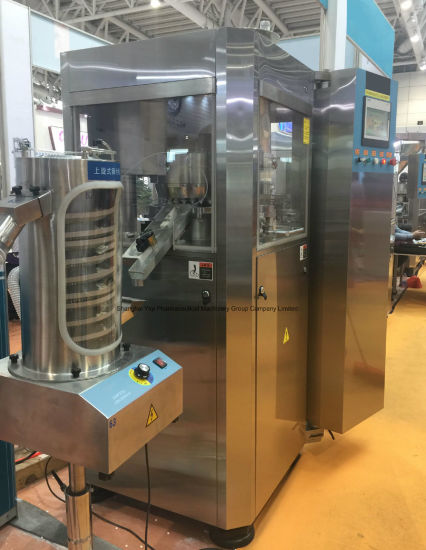

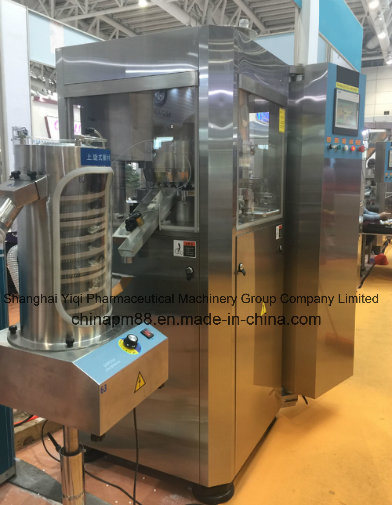

Gzpt-40 High Speed Rotary Tablet Press with Pre Pressing

Quantity:
  • Shanghai, China
  • 5000
  • L/C, T/T, Western Union, Paypal
  • GZPT-40
  • Non-Customized
  • New
  • 1 Year
  • 1700kg
  • 2cbm
  • 170000 PCS/H
  • 25mm
  • SYQ
  • Strong Polywood Case
  • GZPT-26
  • Shanghai
  • 8479899090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
This machine had realized on-line pressure checking,analyze and judgment, Automatically adjust powder filling depth, to achieve automatical control during tablet production period meantime monitoring punches & die situation and powder supply as safeguard which greatly reduce production cost, increase tablet qualitified rate.

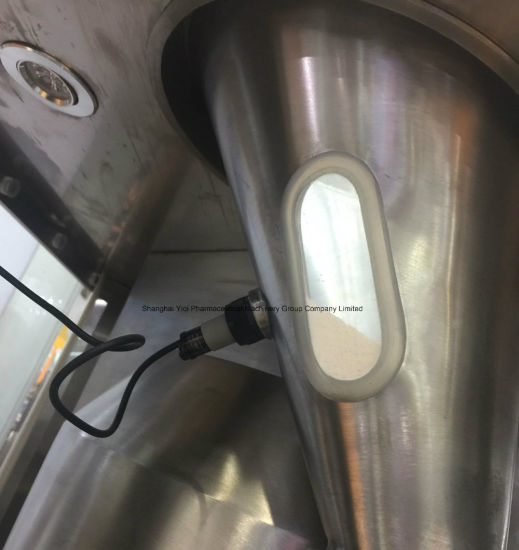

1) With f eeding material automatic detection system .

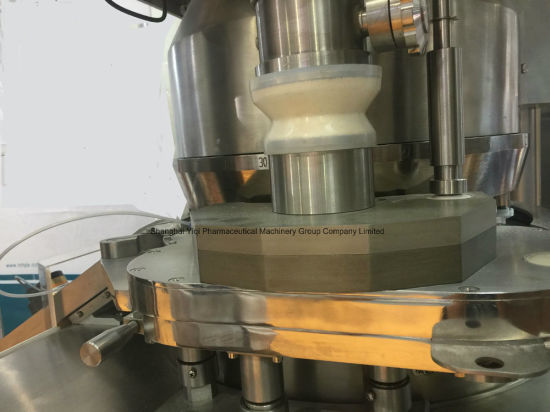

2) The force feeder device could improve liquidity and filling for the granules.
3) Wtih t ablet Rejection function in bulk or singly by detection of compression pressure.
4) Advanced lubrication system, punches installed with oil proof loops, avoiding pollution .

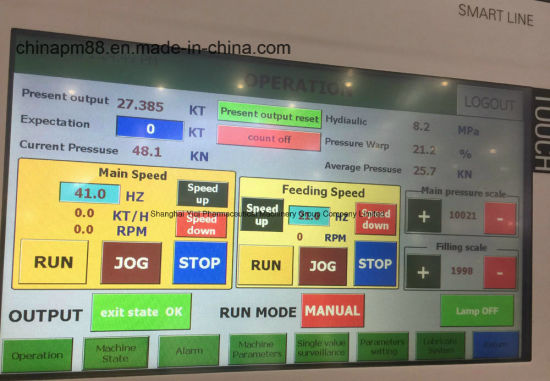

5) Automatic PLC-Touch Screen Control System .
6) GMP standard.
7) EU toolings.

Technical parameters:
Model GZPT-26 GZPT-32 GZPT-40 GZPT-45
Type of Punch and Dies( EU) D B BB BBS
Qty of stations 26 32 40 45
Max tablet diameter(mm) 25 16 13 11
Max abnormal prolate axis size(mm) 25 18 16 13
Max. Working capacity(pcs/h) 170000 210000 260000 280000
Max. Filling Depth(mm) 20 18 18 18
Max. Main Pressure(KN) 100 80 80 80
Max. Pre-pressure 20 20 20 20
Idle load noise(DB) <75
Power 380V, 50Hz, 9.5KW
Dimensions(mm) 780*860*1930
G.W 1700


Gzpt-40 High Speed Rotary Tablet Press with Pre Pressing
