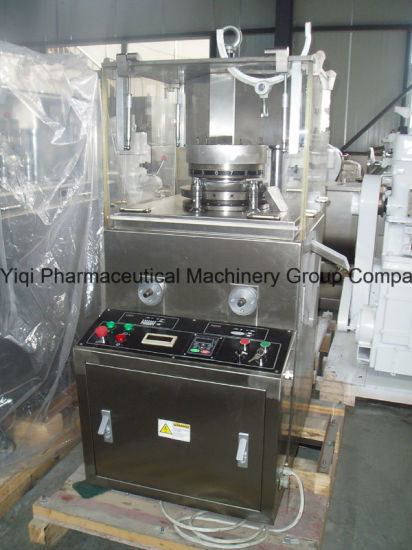

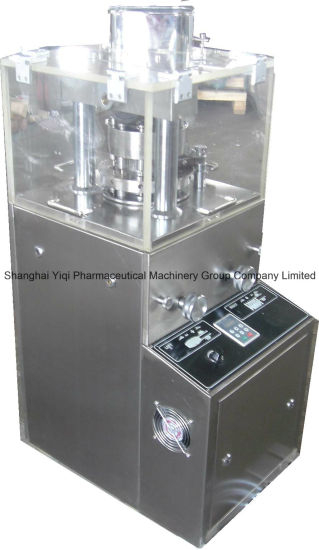

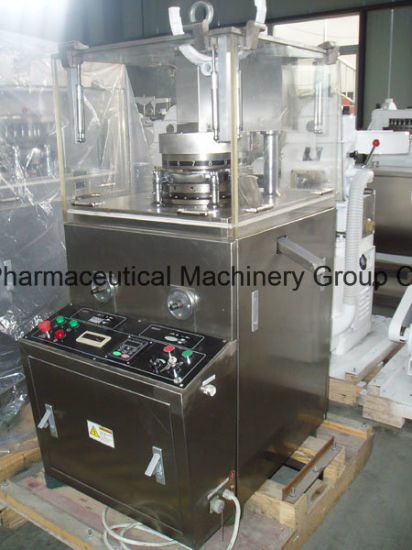

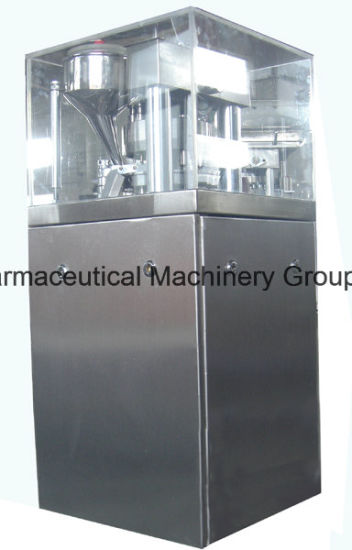

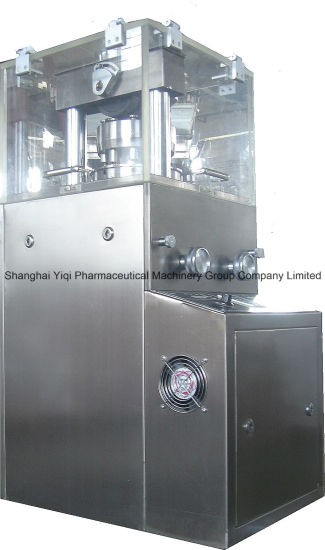

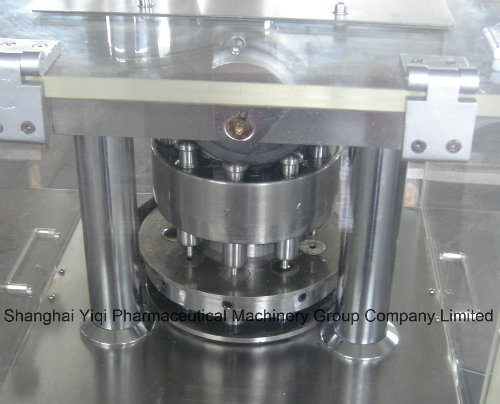

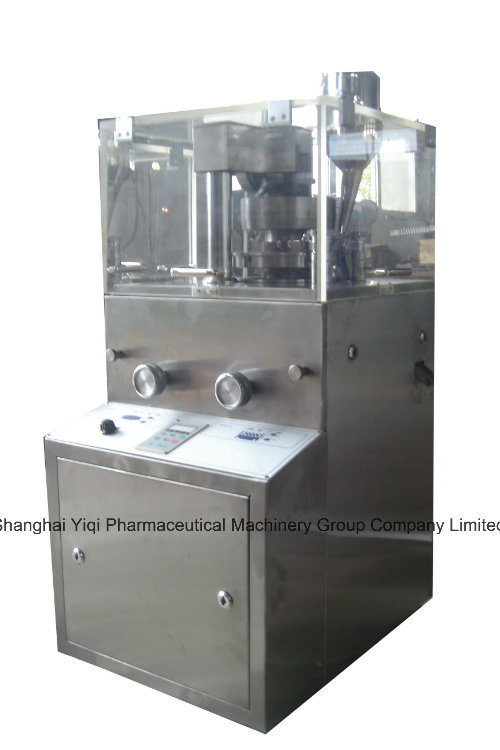

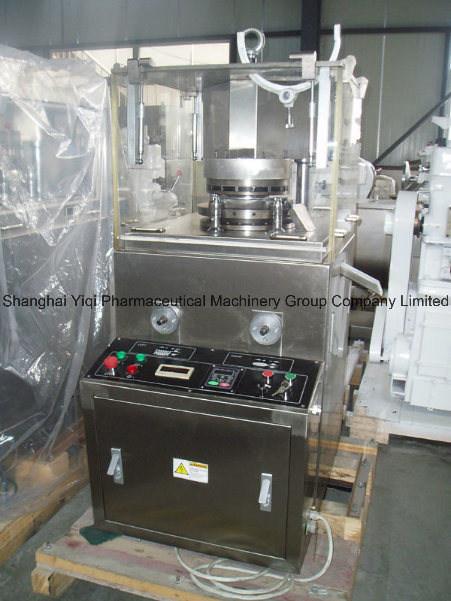

ZP 5/7/9 rotary tablet press
1) ZP 5/7/9 rotary tablet press (Tablet Compression machine) is a single-press tablet making machine.
2) It continues automatic working for pressing powder or granule raw materials into tablets. It is mainly used in pharmaceutical, chemical, food and electronic industries.
3) The cover of ZP 5/7/9 rotary tablet press is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution.
4) ZP 5/7/9 punching automatic rotary tablet press meets GMP requirement.
5) Easy cleaning and maintenance.
6) The speed is adjustable.
7) An overload protection unit is included in the system to avoid the damage of the punches and apparatus. When overloaded, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running
| Item | unit | ZP5 | ZP7 | ZP9 |
| Dies | sets | 5 | 7 | 9 |
| Max. Pressure | kn | 60 |
| Max. Filling Depth | mm | 15 |
| Max. Dia. of Tablet | mm | 20 |
| Max. Thickness | mm | 6 |
| Capacity | Pcs/h | 9000 | 12600 | 16200 |
| MOTOR | 2.2KW 380V 50Hz |
| verall Size | mm | 480*630*1100 |
| N.W | kg | 380kg |
This machine could be applied in laboratory or for small scaled manufacturing.

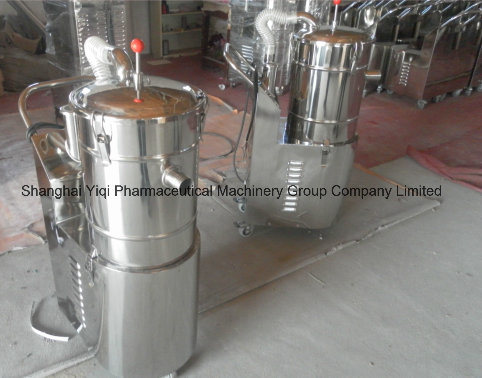

It could be used together with dust collector.

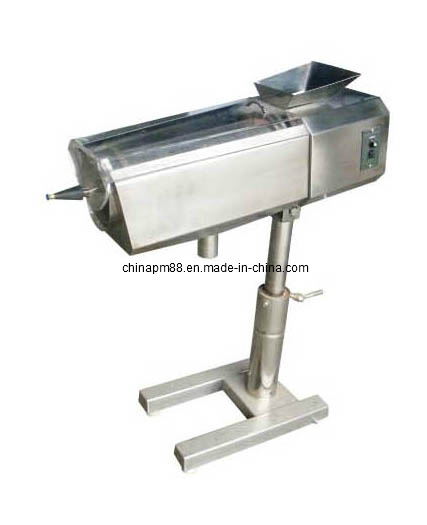

It could be combined used with tablet de-duster:
