This is a tablet making machine and it's a necessary pharmaceutical machinery, which is designed for pressing tablets by granulated materials for hospital, clinic, university for education, and for R& D in lab.

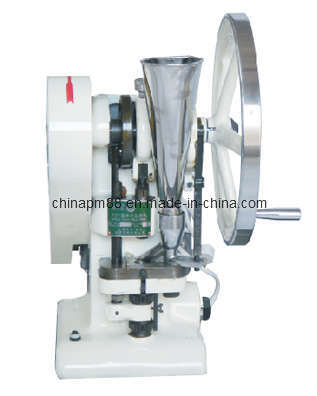

The Single-punch tablet press is a tablet pressing machine driven by motor or manually. One punch die set is included. Filling depth, tablet thickness, and punch pressure are all adjustable. Our Single-punch tablet press is an ideal equipment for laboratory, research department and small manufacturers. Welcome to check with us and we'll recommend you right model. If possible please provide tablet dimensions and shapes. Thanks.

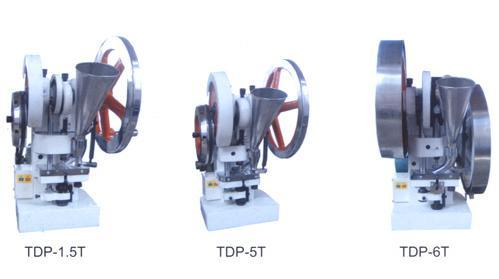

Model
| TDP-1.5
| TDP-5
| TDP-6
|
Max. Pressure (kN)
| 15
| 50
| 60
|
Max. dia. of tablet (mm)
| 12
| 20
| 25
|
Max. Depth of fill (mm)
| 12
| 16
| 16
|
Thickness of largest tablet (mm)
| 6
| 6
| 6
|
Production capacity (pcs/h)
| 5000
| 4500
| 5000
|
. Motor (KW)
| 0.55
| 0.75
| 1.1
|
Overall size(mm)
| 700*370*800
| 700*400*800
| 700*500*900
|
Net weight
| 48
| 125
| 140
|
