Application

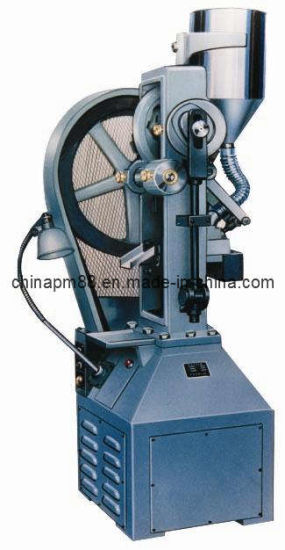

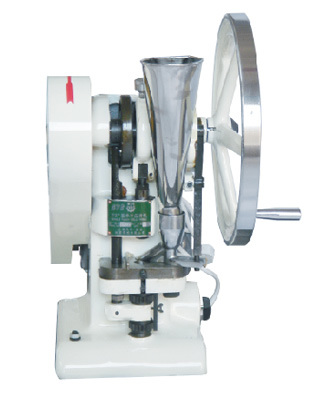

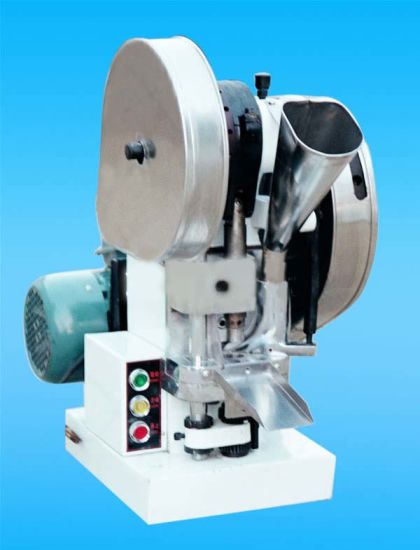

This unit is a medium continuous automatic tablet press which is one of the essential equipment for pressing granular raw materials into tablets or medicinal granules in pharmaceutical, chemical, food, electronic industries.

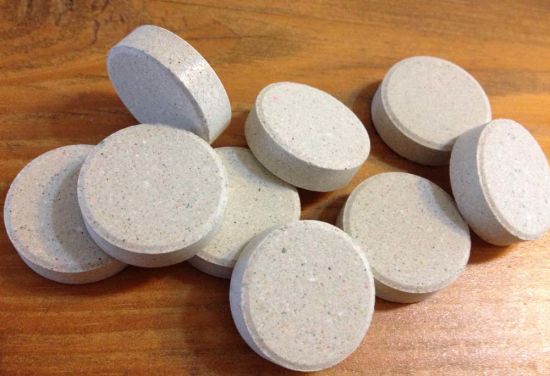

It can be used to press pharmaceutical tablets, coffee pills, powder metallurgical parts electronics components, various tablets of pesticide and fertilizer etc in small-batch production, laboratory and hospital. The machine can press irregular shaped or annular tablets, pesticide, and the tablets both side with impressed trademarks, letters and simple patterns.
Model
| THP
| THP-I
| THP-II
|
Max. Pressure kN
| 40
| 100
| 100
|
Max. dia. of tablet mm
| 30
| 40
| 50
|
Max. Depth of fill mm
| 25
| 45
| 45
|
Max. Thickness of largest tablet m)
| 22
| 35
| 35
|
Inner of fill circular tablets mm
| 5-10
| 6-14
| 6-14
|
Depth of fill circular tablets mm
| 25
| 25
| 45
|
Net weight kg
| 520
| 750
| 770
|
Production capacity (pc/h
| 3000
| 2760
| 2760
|
Motor kW
| 1.1
| 2.6
| 3.7
|
Overall size mm
| 685 x 565 x 1610
| 666 x 860 x 1824
| 666 x 860 x 1824
|
