Single Punch Tablet Press Machine (TDP Series)

  • Shanghai, China
  • 6000PCS/Y
  • T/T, Western Union
  • TDP
  • Customized
  • New
  • <1 Year
  • It Is Used for Individual or for R & D in Lab
  • It Also Could Press Different Shaped Tablets
  • SYQ
  • Standard Packaging
  • CE
  • Shanghai
  • 8419820090
  • Preparation Machinery
  • Tablet
  • Precision
  • ISO
  • 220V
  • Non-Computerized

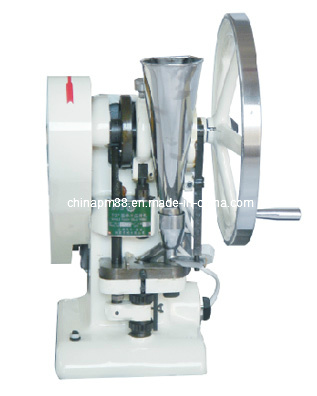

It is designed for pressing different shaped tablets for R & D in lab, hospital or individually. The Single-punch tablet press is a pressing machine driven by motor or manually. One punch die set is included. Filling depth, tablet thickness, and punch pressure are all adjustable. Our Single-punch tablet press is an ideal equipment for laboratory, research department and small manufacturers.
Die and punch (set) 1
Max. pressure 1.5 T
Max. Dia. of tablet 12 mm
Max. Depth. 12 mm
Max. depth of tablet 6 mm
Throughput 5000 pcs/h
Motor power 370w/380v 550w/220v
Dimension 570×380× 630 mm

Single Punch Tablet Press Machine (TDP Series)
