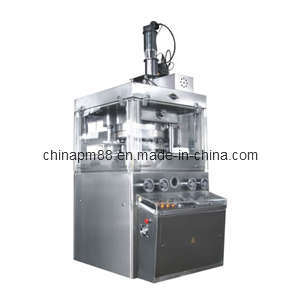

ZPT-17 / ZPT-19 tablet press - Medical Machinery
Main Application of ZPT-17 / ZPT-19 none standard tablet press:
It could be used to produce large tablets for pharmaceutical, chemical, and food industry.
Technique Parameters of ZPT-17 / ZPT-19 tablet press:
Punching Dies 17sets 19sets Dia. Meter of stamp 42mm 35mm
Max. Working pressure 80Kn 80Kn Length of upper punching bar 166m 166m
Max. Dia. Of tablet 45mm 40mm Length of lower punching bar 182mm 193mm
Max. Thickness of tablet 20mm 20mm Machine accommodation area 1330× 1050mm
Max. Depth of Fill 35mm 28mm Machine height 1870mm
Max. Output 15300 17100 Net weight 2200kg
Max. Working Dia. 430mm Motor model Y132S-6
Speed of rotary table 5-15r/min Power 3kw
Dia. Of punching die 46mm Speed 950r/min
Dia. Of center form 58mm Voltage 380V. 50Hz
