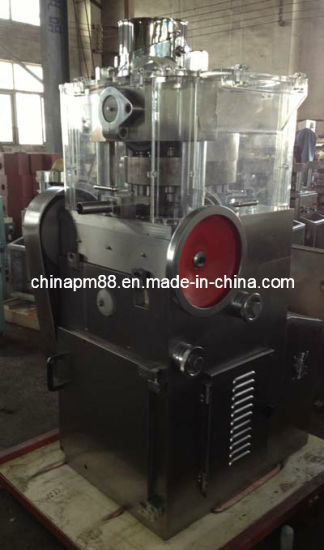

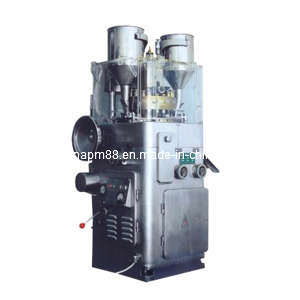

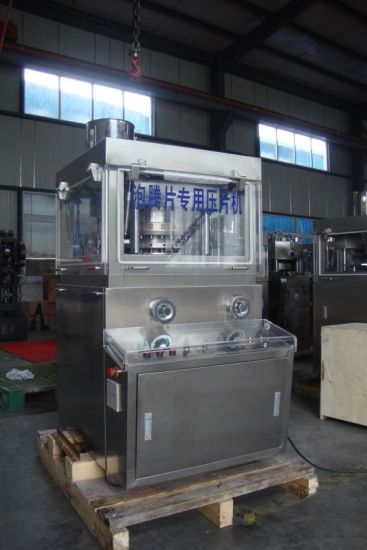

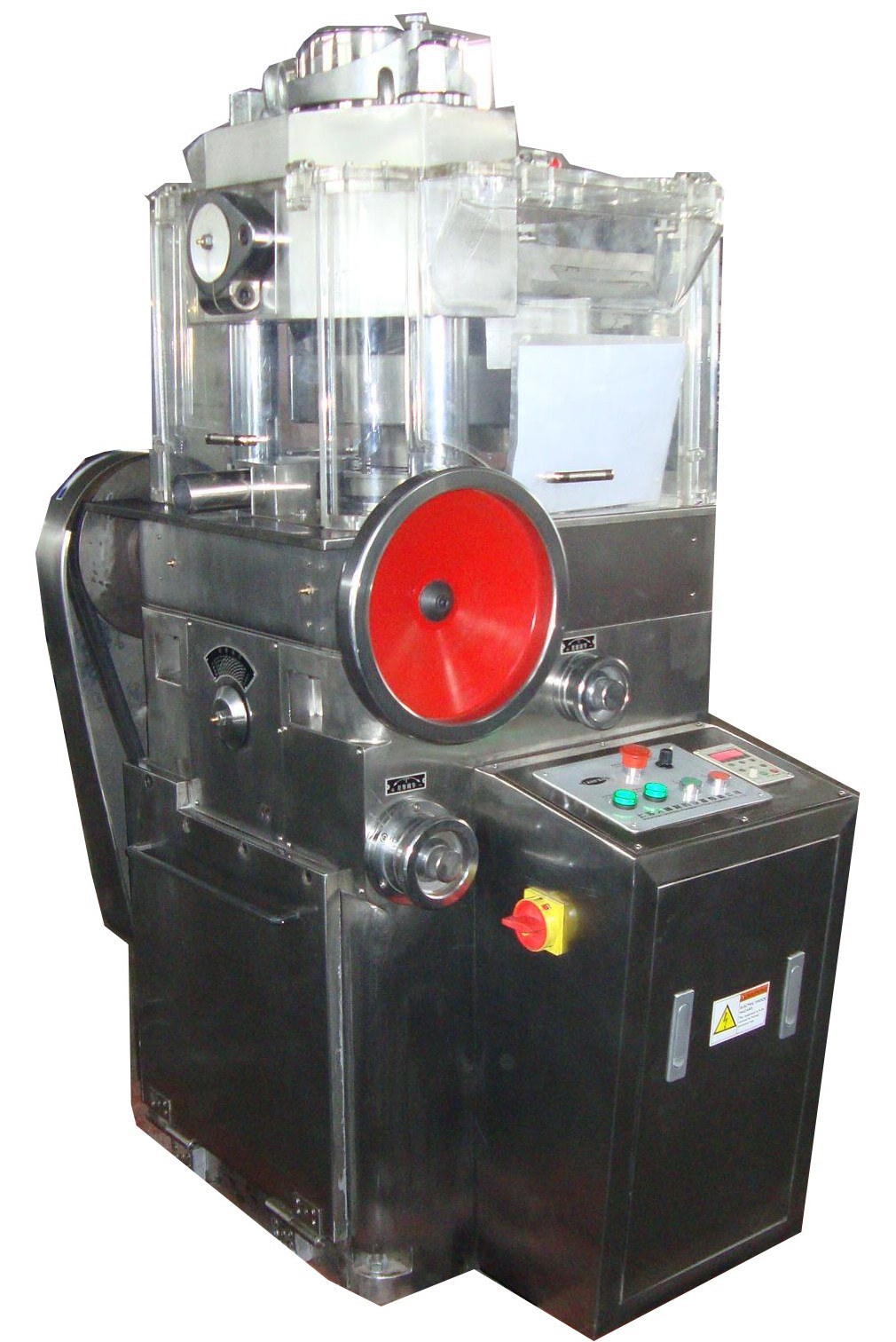

zpw21rotary tablet press is designed for pressing tablets from various kinds of granular materials.
zpw21rotary tablet press can press not only round tablets but also different geometrical shape tablets, double-layer and annular tablets. the tablets may have the impressed letters on both sides. the turret carries 21 sets of movable-punches and dies. so, 21 tablets press will be pressed for each rotation of the turret.
operating principle of zpw21 rotary tablet press:
during operation, the depth of the filling material and the thickness of the tablets can be adjusted. the pressure for tablet pressing is set by the hydraulic drive system and a pressure gauge in zpwrotary tablet press is to show the pressure value. an overload protection unit is included in the system to avoid the damage of the punches and apparatus when overloaded. the machine stops automatically.
new zpw21rotary tablet press is designed to meet the gmp standard.
zpw21 upgraded generation is an improved version with it's pressing area is sealed with four polymath methacrylate doors to be isolated with outside environment. the material contact parts are made of stainless steel and their surface is specially antisepticised to avoid pollution.
tablet press, is also can be called as tablet press machine, pill press machine, tablet compression machine and tablet making machine, is for pressing powder raw materials into tablets.
technique parameter of zpw21 rotary tablet press: YOU MAY ALSO CHECK ZP-17b FOR BIG TABLETS MANUFACTURING, OR please send us your tablet information, we'd like to recommend you right model of machinery.
|Number of the upper punch die on turntable ||17 |
|Max. Pressure of sheet press (kilo-Newton): ||120 |
|Max. Diameter of sheet press (mm): ||36mm |
|Max. depth of filling (mm): ||18mm |
|Range of the tablet's thickness (mm): ||8-15mm |
|Turbine transmission ratio: ||2:49 |
|Revolution change of turntable (revolution/minute): ||10-25 |
|Output tablets (pieces/hour): ||22500 |
|Net weight of the machine (kg): ||1500 |
|Height of the machine (mm): ||1640 |
|Length and width of the machine (mm): ||900*840 |
