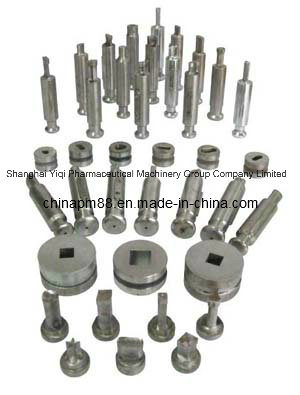

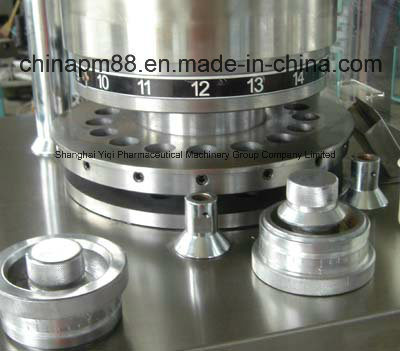

Punch and Dies for Rotary Tablet Press Machine

Quantity:
  • Shanghai, China
  • 80000PCS/Y
  • L/C, T/T
  • ZP-35D, ZP-19, ZP-5, ZP-17D
  • Vertical
  • 4
  • 1
  • CE, ISO 9001:2000
  • Design Punch for Customers
  • Customer Provdes The Technical Information
  • syq
  • Wooden Packaging for Export Standard
  • GMP
  • Shanghai, China
  • 84798200
  • Hot Chamber Die Casting Machine
  • Soluble Die Casting
  • Electronic Accessories
  • Machining Center
  • Copper Alloy
  • Polishing
We provide service of manufacture punch and dies for customers by customized design.
Welcome to contact with us and confirm about the measurements with us. We also provide designing service for customers.

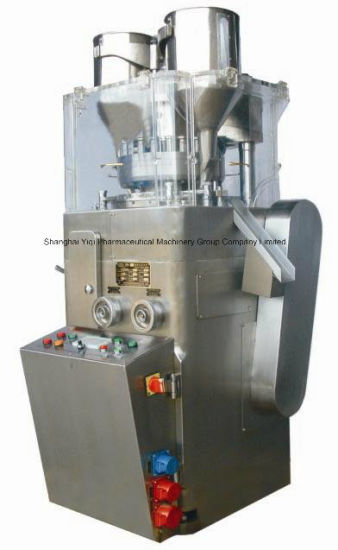

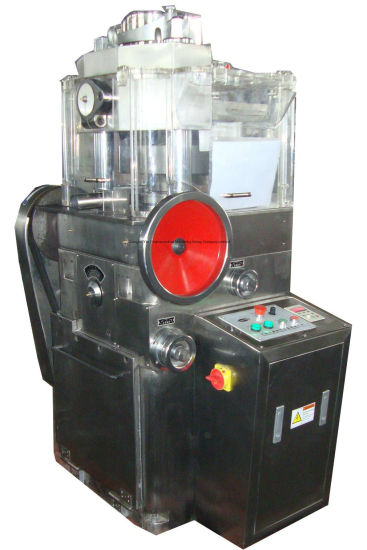

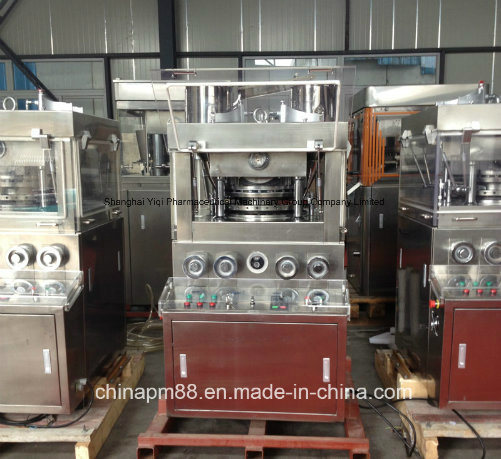

Model ZP-21 ZP-23
Dies(sets) 21 23
Max working Pressure(KN) 100 100
Max. Diameter of tablets 50 45
Thickness of tablets 12-22 12-22
Max. Filling Depth(mm) 25 25
Max. working capacity(pcs/h) 21000 23000
Diameter of rotary table(mm) 445 445
Rotation speed(rpm) 10-25 10-25
Diameter of middle mould(mm) 45 45
Height of middle mould(mm) 30 30
Diameter of up and down punch pole(mm) 32 32
Length of up punch pole(mm) 175 175
Length of Down punch pole(mm) 180 180
Overall Dimensions(mm) 1000x1250x1900 1000x1250x1900
Net Weight(KG) 3200 3200
Motor Model YU132M4A YU132M4A
Motor(KW) 7.5 7.5
Voltage(V) 380 380
