Pharmaceutical Tablet Making Machine & Tablet Press Machine (ZP-5-7-9)

  • Shanghai, China
  • 600
  • L/C, T/T, Western Union
  • ZP-5, 7, 9
  • Customized
  • New
  • 1 Year
  • with 5, 7, or 9 Stations
  • Standard Packaging
  • GMP, CE Approve
  • Shanghai
  • 8419820090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized

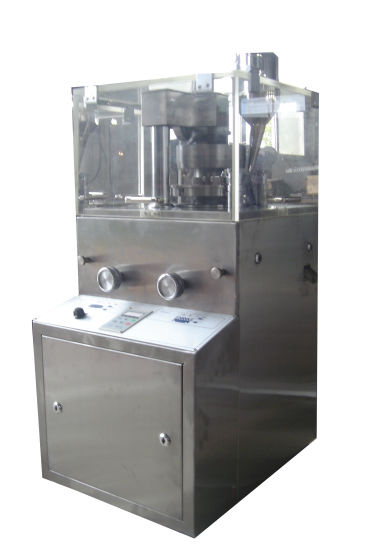

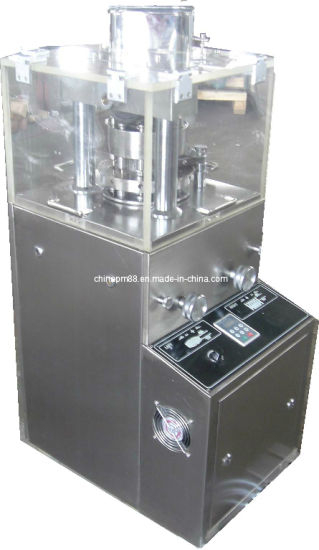

ZP 5/7/9 mini rotary tablet press

The tablet press, Mini in size and Single Rotary is an ideal choice for R&D work as well as small scale productions. It is also used to avoid wastage when high value ingredients are used for tablet formulations, also known as lab tablet press. The mini tablet press is designed with GMP considerations. It is sturdy, fitted with single sided turret of special grade Iron Casting.

1) ZP 5/7/9 rotary tablet press (Tablet Compression machine) is a single-sided press machine.
2) It continues automatic working for pressing powder raw materials into tablets. It is mainly used in pharmaceutical, chemical, food and electronic industries.
3) The cover of ZP 5/7/9 rotary tablet press is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution.
4) ZP 5/7/9 punching automatic rotary tablet press meets GMP requirement.
5) Easy cleaning and maintenance.
6) The speed is adjustable.
7) An overload protection unit is included in the system to avoid the damage of the punches and apparatus. When overloaded, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running. There are two types machine for this model of ZP-5, 7, 9: one is with 2.2kw with bigger pressure for max. 20mm tablets and the other is less powerful with 1.5kw motor and for max. dia= 12mm tablets. Welcome to write to us and check with us which one is good for you. Pharmaceutical Tablet Making Machine & Tablet Press Machine (ZP-5-7-9)
ITEM Series number
5 7 9
Dies(sets) 5 7 9
Max. Pressure(KN) 40
Max. Dia. of Tablet(mm) 12
Max. Depth of Filling(mm) 15
Max. Thickness of Tablet(mm) 6
Production Capacity(pc/h) 9000 12600 16200
Motor 1.5KW 380V 50Hz
Net Weight 186KG
Outline dim.(mm) 450 x 635 x 1100
