This machine is widely applied for the pharmaceutical or food industries.
We manufacture all models of drying ovens and design them according to the specific requirements of customers. Before manufacture, please provide at least the following information:
A. Working capacity.
B. Working temperature.
C. Size or volume of the machine required.
D. Heating method: Steam or electrical heating...
E. The nature of material. Is it heat sensitive?
F. The material of machine: I. E SUS304, Moc SUS316? Or else?
G. Any else requirement.

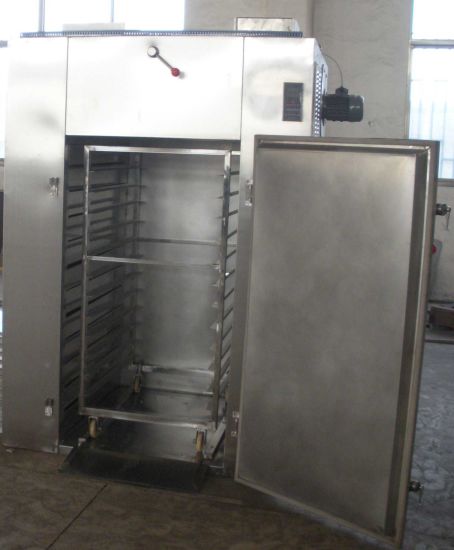

CT-C-O is a small drying equipment for laboratory or hospital or small sized manufacturer. It is a non standard drying machine with single door, a trolly, 24baking pans, convenient and energy saving.
The most remarkable feature of the oven is that most hot air circulates in the oven. So it increases heat transferring and saves energy. The forcible ventilation of hot air will reduce temperature difference in the oven. Before use, please adjust fan blade and make it is at best state.
Welcome to send us your specific requirements.
Working Capacity | 180-240kg/batch |
| Power of Fan | 0.9KW |
| Steaming Pressure | 0.2-0.8Mpa |
| Heating Temperature | 50~140degree centigrade |
| Heat Distribution Area | 30 m 2 |
| Air volume | 7000 m 3 /h |
| Temperature tolerance | ±2degree centigrade |
| Baking tray | 96pcs |
| cart | 4 |
| Size of baking tray(mm) | 460×640×45 |
| Oven size(mm) | 2300×2200×2200 |
