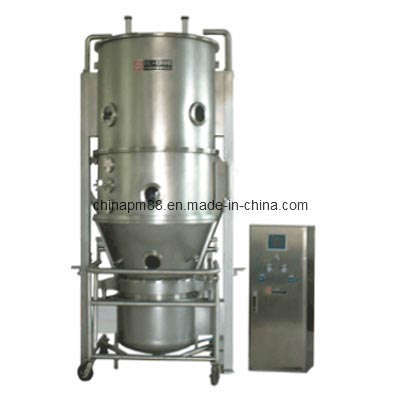

Pharmaceutical Fluid Bed Dryer Machine (FG MODEL)

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 500/Y
Payment Terms: L/C, T/T, Western Union
Model NO.: FG-50, 100, 150, 300, 500
Customized: Customized
Condition: New
Warranty: 1 Year
for Drying Granules: for Pharmaceutical Industry
Trademark: syq
Transport Package: Standard
Specification: GMP ISO CE
Origin: Shanghai, China
HS Code: 8419309000
Type: Preparation Machinery
Finished Dosage Form: Granules
Precision: High Precision
Certification: CE, GMP, ISO
Voltage: 380V
Computerized: Computerized

Product Description

GMP standard machine. It is main applied for drying powder or granules in pharmaceutical, foodstuff, and chemical industries.
Fluid bed to achieve fast heat transmission of medium.
Seal negative pressure operation, there is no dust.
Because of using anti-static material as filter, it is safe in operation;
The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
It is in conformity with the requirements of GMP.

Spec			3	5	30	60	120	200	300	500	1000
item		unit	3	5	30	60	120	200	300	500	1000
container raw material	dim	mm	300	400	700	1000	1200	1400	1600	1800	2200
container raw material	volume	L	12	22	100	220	420	670	1000	1500	2500
production capacity	min	Kg/batch	1.5	4	15	30	80	100	150	250	500
production capacity	Max	Kg/batch	4	6	36	72	140	240	360	600	1100
consume of steam		Kg/batch	12	23	70	140	211	282	366	465	800
amount of compressed air		m3/min	0.3	0.3	0.3	0.6	0.6	0.9	0.9	0.9	1.5
power of fan		kw	2.2	4	5.5	11	18.5	22	30	45	75
temperature		DC	Adjustable from ambient to 120
collection rate		%	>99
time of operation		min	15-30 (depends on material)
content of final product		%	~0.2 (depends on material)
noise		db	≤75
height of main machine		mm	2100	2300	2500	3000	3300	3800	4000	4800	6200
