This machine is designed for pressing round tablets from various kinds of granular
Materials. It is a primary machine to fit batch production of tablets.
It's application is very wide for chemical industry, electronics industry, food, and pharmaceutical industry. It could compress chemical powder, electronics components such as battery, ceramic powder, and also for verterinary medicine tablets.
Especially it could compress galss masaics continuiously with strong compress pressure.
The machine pressure is strong, the operation is convenient, rotary continuous operation, suitable for batch production, on the mechanical buffer device can avoid part of the overload caused by damage and can suppress all kinds of shapes, all kinds of Mosaic.
Glass Mosaic press is used for glass powder pressed into specific block, through the transmission principle of form a complete set piece device automatically push, Richard pills to sintering plate.Our company is a professional manufacturer of tablet press, professional production of various kinds of special pressure machine, tablet press, chicken powder block special pressure machine, carbon powder press press, glass Mosaic and so on. During operation, the speed of the turret rotation, the depth of the filling material and
The thickness of the tablets can be adjusted. The mechanical buffer unit will
Prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder
Material can be reused. This machine has won the fine Quality Product Prize awarded
By the China National Medical Management Bureau.

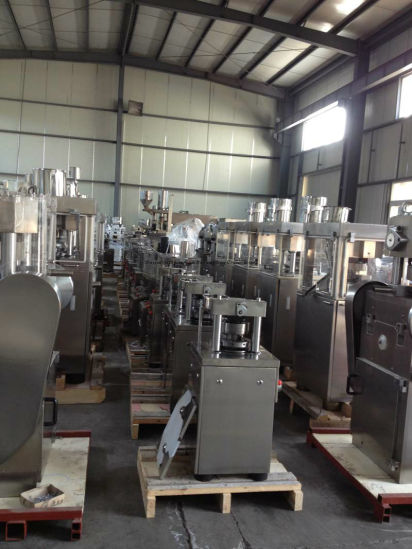

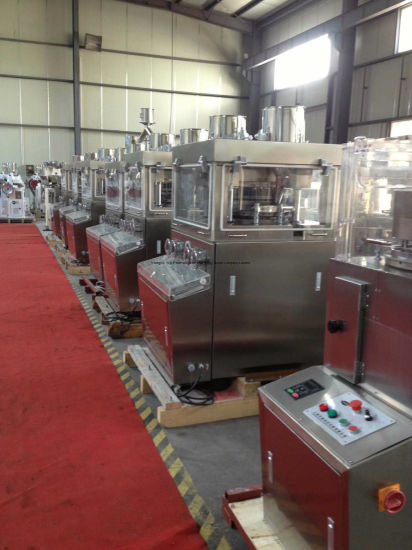

Factory show room:
| Model Number | ZP-33 |
| Punch & Dies(PCS) | 33 |
| Max. Pressure (KN) | 40 |
| Max. Diameter(MM) | 12 |
| Max. filling depth(MM) | 15 |
| Max. tablet thickness(MM) | 6 |
| Turret Speed(R/M) | 11-28 |
| Max. Working Capacity(tablets per hour) | 43000-110000 |
| Motor(KW) | 2.2 |
| Overall dimension(MM) | 950×960×1600 |
| G.W(Kg) | 850 |
