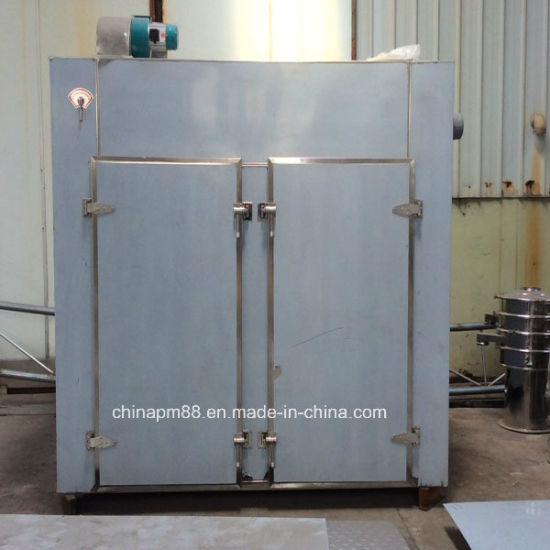

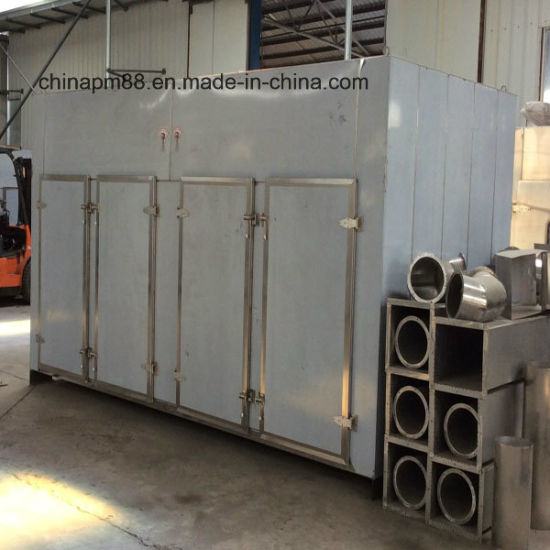

GMP Standard Pharmaceutical Drying Oven (CT-C Series)

Quantity:
  • Shanghai, China
  • 5000PCS/Y
  • L/C, T/T, Western Union
  • CT-C series
  • Hot Air Circulation Drying Oven
  • Continuous
  • for Food Industry
  • for Drying Sugar
  • for Chemical Industry
  • Oven
  • Contra-Flow
  • Pastes
  • Pressure Atomization
  • Air-Flowing Type
  • SYQ
  • Standard Packaging
  • CE
  • Shanghai
  • 8419820090
  • Fixed
  • Rotary Atomization
  • Contra-Flow
  • Transmission
  • Powder, Solution, Cream, Strap, Bulk
  • Inactive Gas, Superheated Steam, Effluent Gas, Air

Application:
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: Raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff,
dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.


Features:
1. hot air circulat
ing in the oven. The Heat efficiency is high and the energy is saved.
2. By forced ventilation function, adjustable air distribution plates are inside of the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection.
3. The whole machine is low noise. The operation is in easy. The temperature is controlled automatically. The installation and maintenance are easy.
4. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
Explanation:
1. Options of heat source: Steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: Steam heating 50-130 º C, Max. 140 º C.
3. Electricity and far infrared: 50-300 º C. Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5. For CT-C-I, electric heated, rated power consumption: 15Kw, real consumption: 5-8Kw.
6. The special requirements should be indicated at the time of order.
7. Please consult as for any special requirements.
8. For operation temperature of over 140 º C or less than 60 º C, please indicate when order.

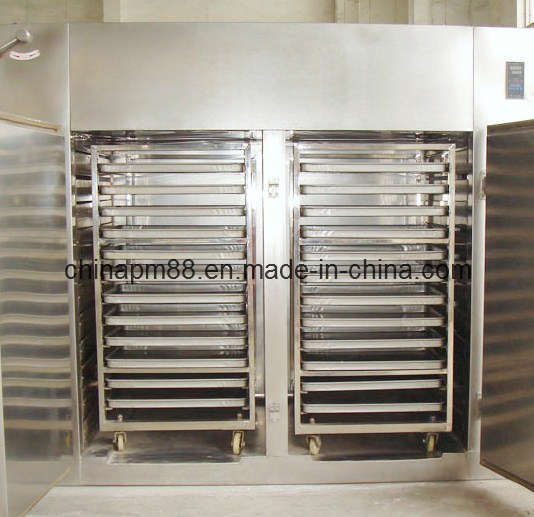

9. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
10. Baking plate dimensions: 460*640*45mm




GMP Standard Pharmaceutical Drying Oven (CT-C Series)


Welcome to send us your specific requests.

Technical Parameters:
Model Items Accessories
Evaporation Area (M2) Efficient Volume (M2) Drying Capacity (KG/Lot) Radiatro Area (M2) Steam Consuption (KG/H) Electric Heating Power (KW) Fan Volume(/h) Fan Power (KW) Temperature difference inside the oven (º C)
Overall Dimensions W X D X H (mm)
Equipped Drying Cart (Set) Drying Pallet to be Equipped (PCS) Total Weight (KG)
CT-C-0 7.1 1.3 50 10 10 6-9 3450 0.45
± 2
1400*1200*2000 1 24 820
CT-C-I 14.1 2.6 100 20 18 15 3450 0.45 ± 2 2300*1200*2000 2 48 1580
CT-C-II 28.3 4.9 200 40 36 30 6900 0.45*2 ± 2 2300*2200*2000 4 96 1800
CT-C-IIA 28.3 4.9 200 40 36 30 6900 0.45*2 ± 2 4460*1200*2290 4 96 1880
CT-C-III 42.4 7.4 300 80 54 45 10350 0.45*3 ± 2 3300*2200*2000 6 144 2100
CT-C-IIIA 42.4 7.4 300 80 54 45 10350 0.45*3 ± 2 2300*3220*2000 6 144 2210
CT-C-IV 56.5 10.3 400 100 72 60 13800 0.45*4 ± 2 4460*2200*2290 8 192 2800
CT-I 14.1 2.6 100 20 20 15 1400 1.1 ± 2 2480*1200*2375 2 48 1220
CT-II 28.3 4.9 200 40 40 30 5000 1.1 ± 2 2480*2200*2438 4 96 1530
CT-III 42.4 7.4 300 80 60 45 9800 2.2 ± 2 3430*2200*2620 6 144 2110
CT-IV 56.5 10.3 400 100 80 60 9800 2.2 ± 2 4460*2200*2620 8 192
