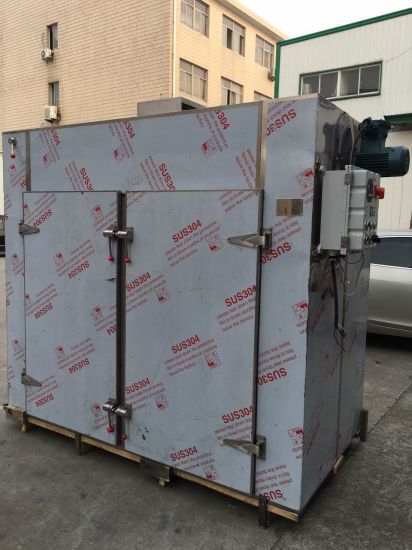

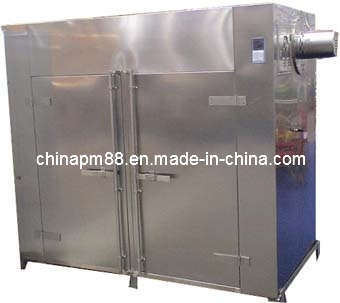

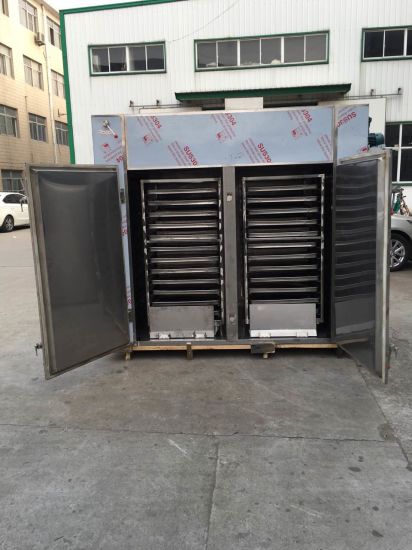

This is a GMP standard pharma oven, which is designed with even flow hot air circulate throughout the trays utilized the vapor or the electricity as heating sources or steam heating using boiler. The axial flow blower exchange the heat to the heat exchanger by this means heating the air. The hot air layer through the trays proceed materials. The fresh air enters the oven from air inlet to proceed supplement, then the exhausts out the hole for draining the moisture. It will continuously supply the fresh air and exhausts the wet hot air, thus to maintain the appropriate relative humidity in the oven. So that to enhance the heating conductoin and to save the energy resources. It utilizes the function of enforce ventilation to reduce the temperature difference between the top and bottom. The user can proceed temperature adjustments prior to operating so it can make the temperature difference between the top and bottom at the optimal state.
This hot air circulation oven is widely used in pharmaceutical, herbal, chemical and other similar industries.
We could manufacture the following models according to the user's specific purpose:
1. Single door oven with 12 trays.
2. Single door oven with 24 trays.
3. Double doors with 2carts and 48trays.
4. Double doors with 4carts and 96 trays.
5. Double doors with 6 carts and 144trays.
6. Any customized oven.
| Working Capacity | 180-240kg/batch |
| Power of Fan | 0.9KW |
| Steaming Pressure | 0.2-0.8Mpa |
| Heating Temperature | 50~140 degree centigrade |
| Heat Distribution Area | 30 m 2 |
| Air volume | 7000 m 3 /h |
| Temperature tolerance | ±2 degree centigrade |
| Baking tray | 96pcs |
| cart | 4 |
| Size of baking tray(mm) | 460×640×45 |
| Oven size(mm) | 2300×2200×2200 |
