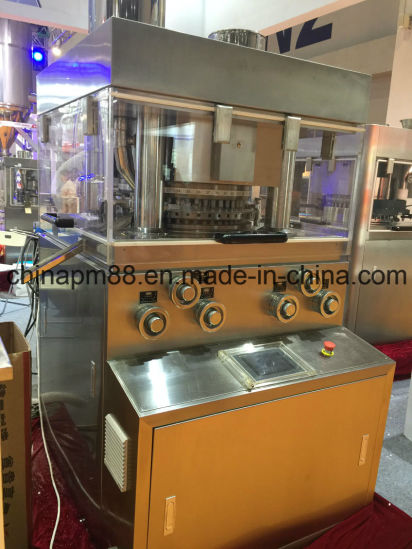

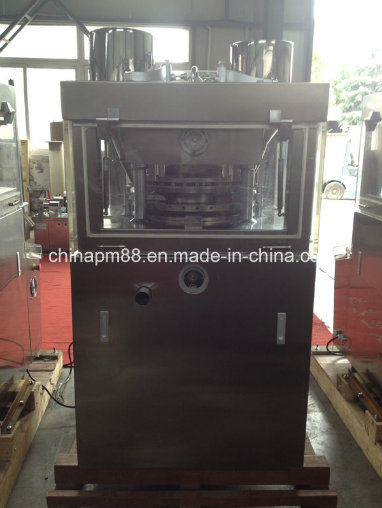

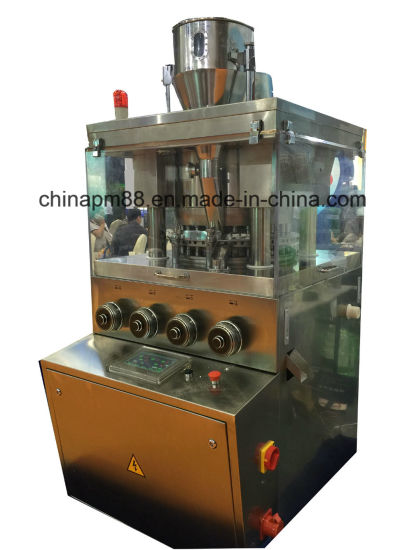

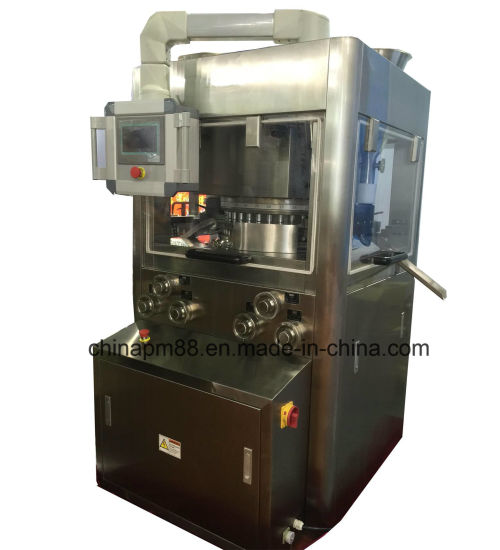

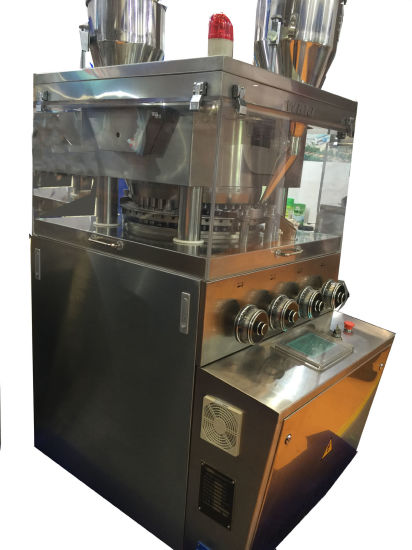

China High Speed Ipt Tooling Rotary Tablet Press (HSZP-35)

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 500
Payment Terms: L/C, T/T, Western Union
Model NO.: HSZP-35
Customized: Customized
Condition: New
Warranty: 1 Year
with 198000PCS/H High Working Capacity: for Max. 25mm Tablets.
Trademark: SYQ
Transport Package: Wooden Case
Specification: GMP, CE
Origin: Shanghai
HS Code: 84798990
Type: Preparation Machinery
Finished Dosage Form: Tablet
Precision: High Precision
Certification: CE, GMP, ISO
Voltage: 380V
Computerized: Computerized

Product Description

Main application

HSZP35/37 rotary tablet press machine is widely applied in the pharmaceutical industry, food industry, chemical industry, electronics and other industries etc.

Features

1. With high working pressure, pre-pressing function, the duration of compression time is prolonged, and improved the quality of tablet manufacturing.
2. High rotation speed, double sides compression, increased the working capacity.

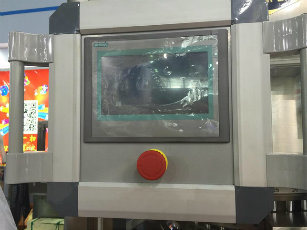

3. PLC control and touch screen.
4. Fully closed working chamber.
5. Parts are made of stainless steel or through special surface treatment, which will prevent cross pollution. GMP standard.

China High Speed Ipt Tooling Rotary Tablet Press (HSZP-35)

Technical Parameters

items	HSZP-35	HSZP-37
Number of stations	35	37
Type of tooling	IPT	IPT
Max. Pressure(KN)	80	80
Max. Pre-pressure(KN)	60	60
Max, filling depth(mm)	18	18
Max. Tablet diameter(mm)	25	23
Capacity(pcs/h)	189,000	199,800
Max. Turret speed	45	45

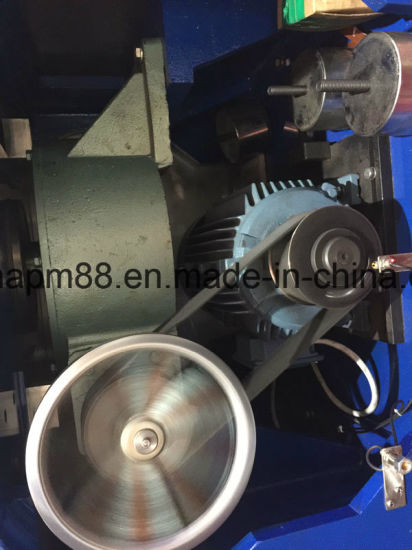

Main motor power(KW)	7.5	7.5
Height of machine with hopper(mm)	1900	1900
Height without hopper(mm)	1750	1750
Dimensions(mm)	1170*1290	1170*1290
Weight(kg)	3500	3500
