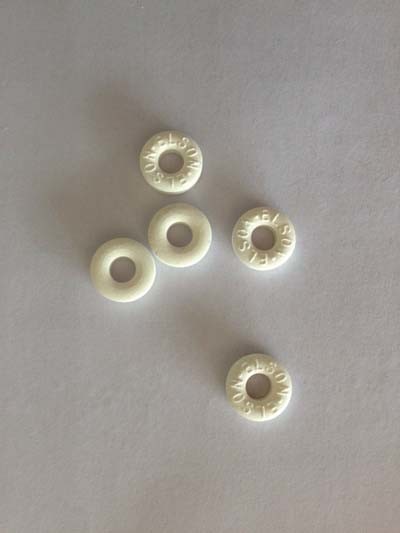

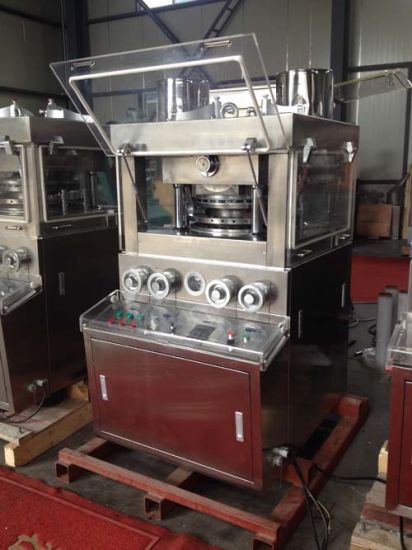

This machine is a double pressing machine, it could press round tablets and irregular tablets in the industry of chemical, pharmaceutical, food, and electronics.It could press double layered tablets(double colors). IT COULD BE APPLIED FOR PRESSING: Calcium tablets, Vitamin Tablets, and big tablets of health care products.
3.Max.Diameter of tablet pressing:22mm
4.Large working capacity:135000PCS/h.
5.With overload protection system.
6.With powder suction case.
7.Mould could be generally replaced by ZP19, ZP33, ZP35 and ZP37 tablet press machine.
|Model ||ZPW31 |
|Dies (sets) ||31 |
|Max. Pressure (KN) ||80 |
|Max. Dia. of tablet (mm) ||22 |
|Max. Filling Depth (mm) ||15 |
|Thickness of largest tablet (mm) ||6 |
|Turret speed (r/min) ||14-36 |
|Production capacity (pc/h) ||135000 |
|Motor (kW) ||3 |
|Overall dimensions(mm) ||1230*950*1670 |
|Net weight (kg) ||1700 |
