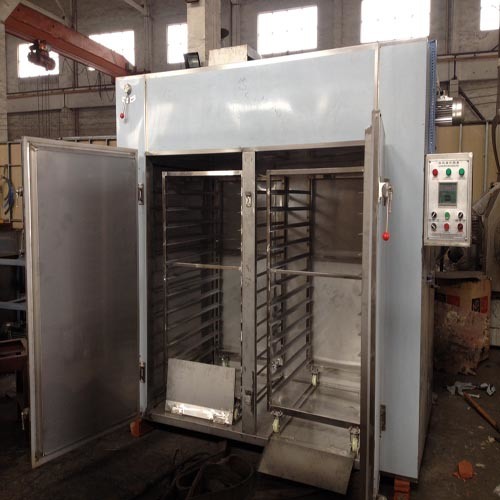

General description: the equipment is used for the stability of materials after cleaning sterilization removing pyrogen by hot air way of intermittent, put the material into the oven, turn on PLC control system, internal circulation fan, heating,
butterfly valves open at the same time, the rapid warming drying box. Under the action of internal circulation draught fan, dry and hot air through the high temperature resistant HEPA filter into the box, the formation of a uniform distribution of air delivery in vivo to box in the micro regulation, dry air absorbent surface of the water, into the heating channel evaporation discharge, dry air direction under the action of the fan flow. With water vapor, and gradually reduce the gap of supply fresh air filtration, the micro positive pressure condition in the end, constant temperature, process control. Turn on forced air cooling (water), automatic butterfly valve in the closed state, the acousto-optic prompt to open the door. Under normal circumstances a sterile room door at the end of cooling point 60 DC
in sterilization procedures can open the door (cooling temperature can be set, the general cooling temperature at 60-80DC).
This document will describe the requirements of integrated equipment.
1) using temperature: environment temperature to 250 degaree centigrade, and design temperature: environment temperature to 300 degree centigrate.

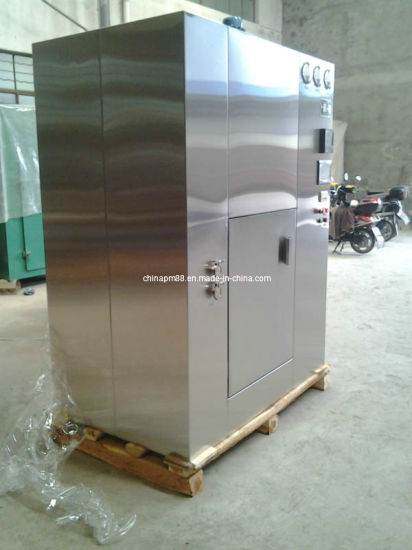

2) design of double door type, double interlocking, wall mounted.
3) Wind flow way: horizontal laminar flow.
4) the public support system: voltage: AC 220V/380V 50Hz
:
Power: three-phase five wire AC
cooling: forced air cooling.
Equipped with programmable controller, man-machine interface touch screen, differential pressure meter, automatic exhaust valve, with heating, drying, sterilization, in addition to heat, cooling, humidity, alarm and other functions.
Printer: real-time temperature display, print, sterilization, cooling temperature, time, batch number, the operator code etc.
