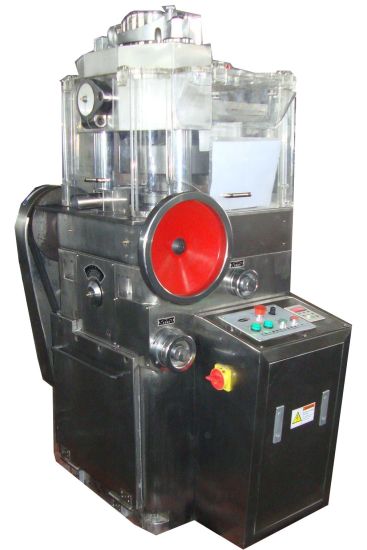

Big Tablet Pressing Rotary Tablet Press Machine (ZP-17B)

Quantity:
  • Shanghai, China
  • 1000PCS/Y
  • L/C, T/T, Western Union
  • ZP-17B
  • Customized
  • New
  • 1 Year
  • for Pressing Special Shaped Tablets,
  • for Compression of Vitamin Tablets
  • syq
  • Wooden Case
  • ISO
  • Shanghai
  • 8479820090
  • Preparation Machinery
  • Tablet
  • Precision
  • CE, ISO
  • 380V
  • Non-Computerized
Applications
ZP-15B, ZP-17B rotary tablet press machine is with large pressing pressure and could press big tablets for a variety of applications. It is suitable not only to the pharmaceutical and foodstuff industry but also the chemical, ceramic, electronic and battery industry for pressing different granular materials into tablets.

Characteristics
1.This rotary tablet press requires easy maintenance.A worker can monitor the working conditions of this machine through the plastic window.
2.It is of adjustable speed.
3.Round tablets or other special tablets are all available with this tablet press.
4.This rotary tablet press could press two layers tablet.
5.It could be enclosed with organic glasses and stainless steel.

Technical Parameters

Station 15A 15B ( with the cover)
Max pressure (kn) 100 100
Max tablet diameter (mm) 38 38
Max filling depth(mm) 25 25
Max thickness(mm) 12 12
Capacity (PCS/h) 9000-22000 9000-22000
Power(kW) 5.5--7.5 5.5--7.5
Outside size(mm) 900× 800× 1640 900× 800× 1640
Weight(kg) 1400 1400.

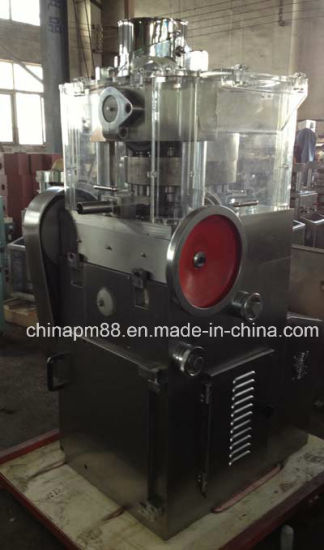

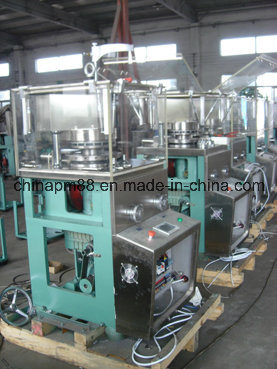

Big Tablet Pressing Rotary Tablet Press Machine (ZP-17B)

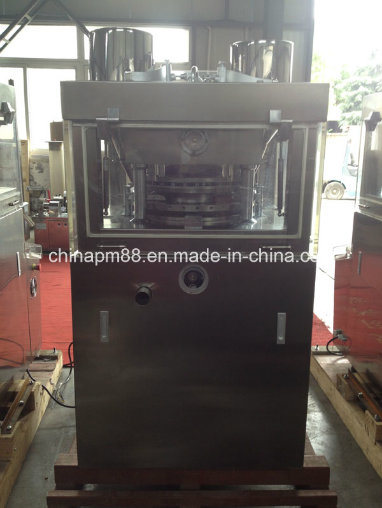

Big Tablet Pressing Rotary Tablet Press Machine (ZP-17B)
For effervescent
manufacturing, we designed special machine:

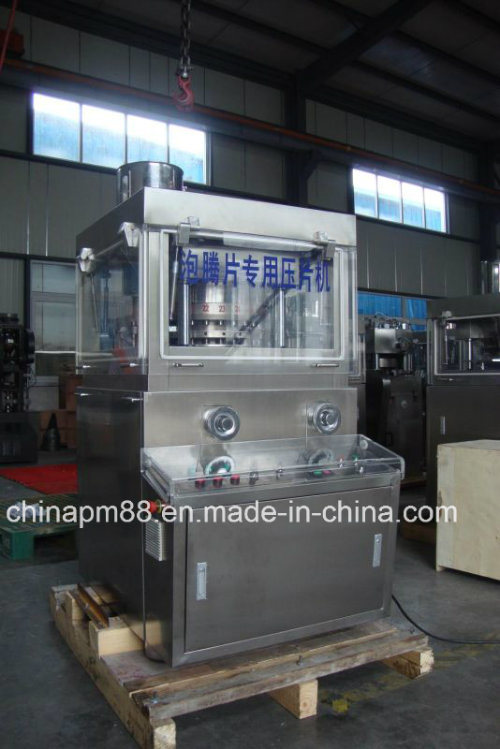

Big Tablet Pressing Rotary Tablet Press Machine (ZP-17B)
Welcome to check with us for more information according to your specific requirements.

Technical parameters of ZP-13, 15, 17, 19, 21 for big tablets manufacturing:
Dies 13 15 17 19 21
Max. Pressure(KN) 150 150 120 120 80big
Max. Diameter of tablets(mm) 50 45 40 30 30
Max. Filling Depth(mm) 18-25 18-25 18-25 18-25 18
Largest tablet thickness(mm) 8-15 8-15 8-15 8-15 9
Rotation Speed(rpm) 10-25 10-25 10-25 10-25 10-36
Working capacity(pcs/h) 7800-19500 9000-23000 10200-25500 11400-28500 45000
Dimensions(mm) 900*800*1640 900*800*1640 900*800*1640 900*800*1640 900*800*1640
G.W(kg) 1500 1500 1500
