Automatic Uphill Type Tablet Deduster

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
60000PCS/Y
Payment Terms:
L/C, T/T, Western Union
Model NO.:
D
Condition:
New
Warranty:
1 Year
for All Types of Tablets:
Uphill Deduster Made of Stainless Steel
Trademark:
syq
Transport Package:
Strong Wooden Case for Export
Specification:
CE
Origin:
Jiangsu China
HS Code:
8479820090
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Certification:
CE, GMP, ISO
Voltage:
220V
Computerized:
Non-Computerized
Customized:
Non-Customized

Product Description

It is with multi-function of polishing, dedusting, and detecting the metal materials and especially
applicable in the field of pharmaceutical, chemical engineering, electronics and food industry.
It is applied as an important auxiliary machinery with any model of tablet press machine.

Features:

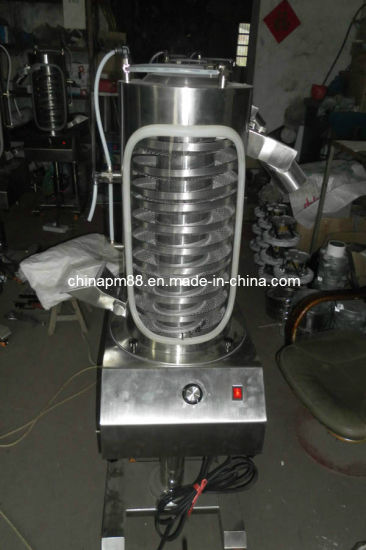

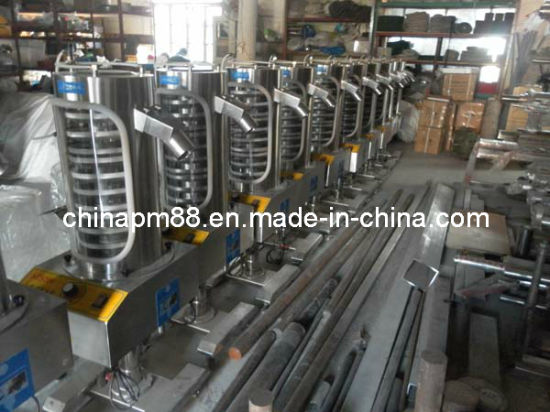

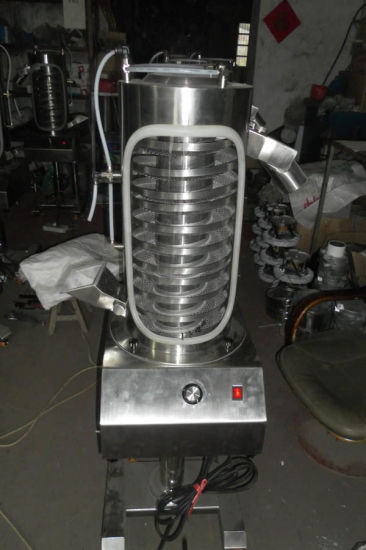

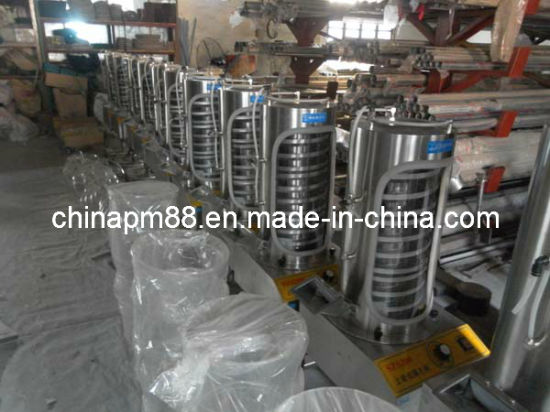

This machine is with the advantage of long dedusting path, automatic tablet polishing on all tablet sides, and high quality dedusting without damage to the tablets. The main contact parts on tablets are made of SUS316L or SUS304 comply with the standard of GMP. The main working chamber of machine is designed with block style and the discharging port of the machine is easy to be adjusted. This machine is with the structure of easy & quick installation. The Quick assembling connection structure makes the machine working more efficiently and easy disassembled. Which is easy clean with no dead corner. The machine can do 360 degree circumference adjustment, convenient production, save space, convenience for working and operation. This machine could work for 3-35mm tablets in large scale manufacturing. With the new design, the machine working stably and with low noise.

model	SZS230
Max.working capacity(pcs/h)	800000(6mm tablets)
Dedusting route(m)	6
Max.lift height	1220
Max.tablet diameter(mm)	25
Power supply	1P 220/110V 50-60Hz
Overall dimensions(mm)	5505501350
Weight(kg)	70
Compressed air	0.1m3/min 0.05Mpa
Vacuum	2.7M3/Min-0.01Mpa
