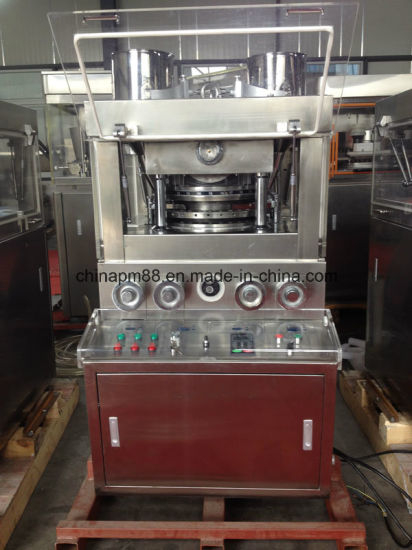

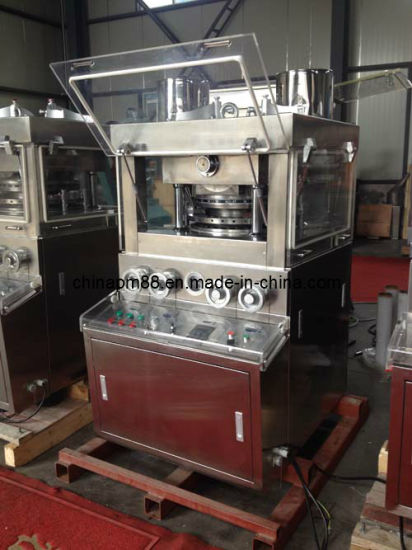

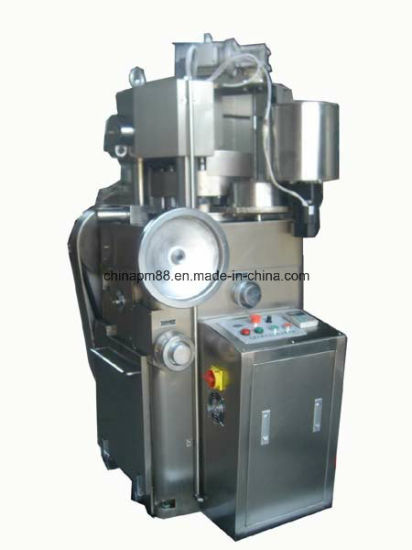

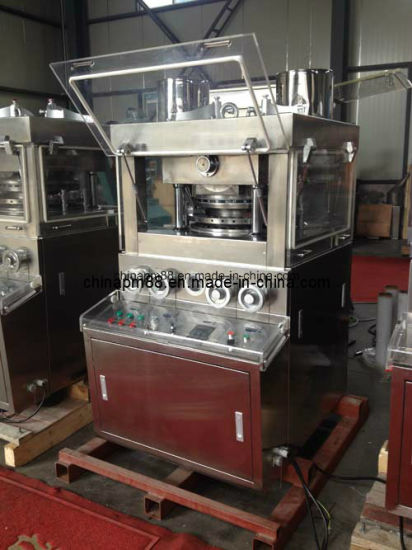

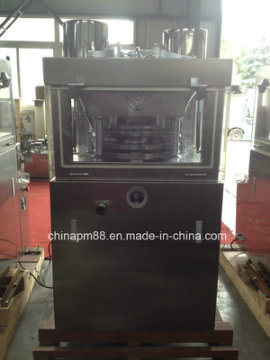

Annular Shape Tablet Pressing Machine

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
3000PCS/Y
Payment Terms:
L/C, T/T, Western Union
Model NO.:
ZP-31
Customized:
Customized
Condition:
New
Warranty:
1 Year
This Is Designed for Candy Manufacturing:
This Machine Could Be Applied for Food Industry
This Machine Is for All Kinds of Tablets:
Could Press Polo Candy Shaped Tablets
with Long Working Life:
Easy Operation and Maintenaince
for Pharmaceutical, Food Industry:
Max. Tablets Dia 24mm
Trademark:
syq
Transport Package:
Strong Wooden Case
Specification:
CE, GMP
Origin:
Shanghai
HS Code:
8479820090
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

This machine is a double press rotary tablet press machine. It is with durable working life, and easy operation.

Main technical data

Number of filling of rotary table 31pairs
Maximum working pressure: 800V
Maximum tablet diameter: 4-24mm
Maximum tablet thickness: 6mm
Maximum filling depth: 15mm
Maximum production: 0.125million tablet/hour
Working diameter of rotary table: 420mm
Speed of rotary table: 10-24 r/m
Diameter of stamp: 34mm
Height of middle stamp 22mm
Diameter of upper/lower stamping lever 26mm
Length of upper/lower stamping lever 115mm
Machine's coverage area: 1230*950mm
Height of machine: 1670mm
Net weight of machine: 1700kg
Motor model: Y132S-6
Power: 3kw
Rotation speed: 950r/m
Voltage: 380V
1). This machine integrates automatic rotation, frequency-conversion, speed-adjusting with continuous tablet pressing. It is mainly used for the manufacture of tablet in pharmaceutical ,chemical, food, electronic etc.
2). This machine applies to the pressing of granular material of which powder content(over100 hole) is below 10% and it can't be used for the pressing of half solid, damp granular. Low melting point, easy damping material and the powder without granulator.
3). This machine can produce round, special-shaped and character-engraved tablets 4-20mm.

Model	ZPW29, 31
Dies (sets)	29 or 31
Max. Pressure (KN)	80
Max. Dia. of tablet (mm)	24
Max. Filling Depth (mm)	15
Thickness of largest tablet (mm)	6
Turret speed (r/min)	14-36
Production capacity (pc/h)	125000-135000
Motor (kW)	3
Overall dimensions(mm)	12309501670
Net weight (kg)	1700
