NJP-800 capsule filler is suitable to fill the medicine, and chemicals (powder, pellet, granule, pill) into hard capsules, also can be used for filling vitamin, foodstuff and animal drug, etc. It is welcomed and applied by the factories of pharmaceutical, foodstuff, and chemicals worldwide.
Salient Features
1. Electrical Appliance control system approved to CE, and international standard.
2. Fully closed rotating table and dosage stations for integration of the whole capsule filling plants, which conforms to GMP norms.
3. Large cam mechanism keeps the rotating table of mould together with the whole equipment running in balance, and completely guarantees the machine operating with highest precision and accuracy.
4. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
5. Quick and accurate part changing system, easy to remove rotary table and ring carrier assembly.
6. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
7. Touching-Screen, PLC program control panel with LCD.
Easy speed selection and closed capsule length adjustment.

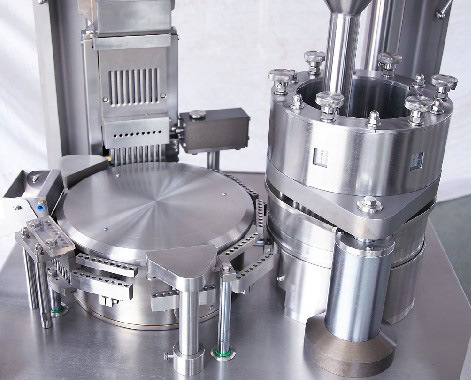

New Design of Fully Enclosed Rotating Table
Features:
. With high efficiency, accuracy, and energy saving...
Easier to clean, dismantle and re set-up the mould...
The working station cam runs under the good lubricating condition, extends the operating life of change parts...
Improved the inner design of Mould rotating table, Import 90 PCS beeline bearings for each machine from Japan directly, guaranteed the equipment precision and extended the life of machine.
New Design of Fully Enclosed Dosage Station
Features:
. Easier to clean; Keep the dosage in accuracy...
Enlarged the size of dosage pan (3cm larger), which increased the powder flowing uniformity in the dosage pan, according to the international standard...
Adopt three dimensional control elements; Take the undersurface plane of dosage as datum, so as to eliminate the natural transmutation of the dosage pan and copper saucer. Patent design in China.
This model is CE approved and GMP STANDARD.
| Model | NJP-800C-2 |
| Working Capacity | 800 capsules/min |
| No. of Dose | 6 |
| Size of Hard Capsule | 00#, 0#, 1#, 2#, 3#, 4# |
| Total Power | 9KW |
| Main Motor | 2.2KW |

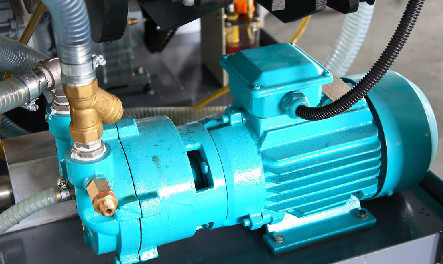

| Vacuum pump | 2.2KW |
| Dust collector | 3KW |
| Noise | <80DB |
| N.Weight | 1100Kg |
| Machine Dimension | 840mm (L) x 960mm(W) x 1800mm(H) |
| Accuracy | + 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity. |
