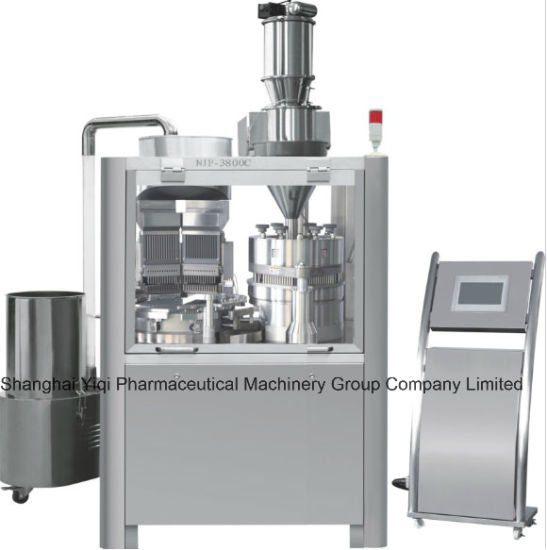

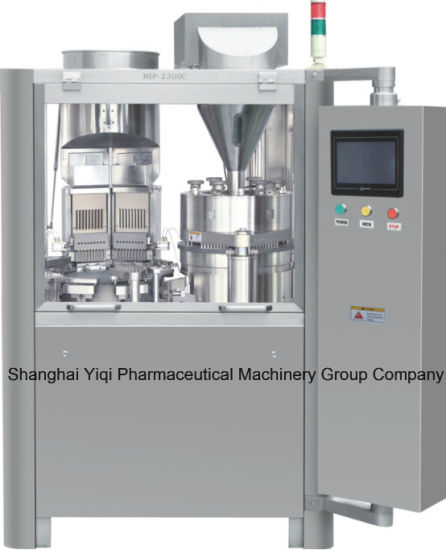

High Precision Powder/Granule/Pellet Automatic Capsule Filling Machine (NJP-2000C)

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
800/Y
Payment Terms:
L/C, T/T, Western Union
Model NO.:
NJP-2300C
Customized:
Customized
Condition:
New
Warranty:
1 Year
for Medium Scaled Manufacturing:
with Speed of 2000PCS/Min
Fully Automatic Capsule Filler:
for Large Batch Manufacturing
PLC Control and HMI:
with Ce Approval
Stable Running with Durable Working Life:
Electrical Components Are World Famous Brands
Capacity:
120000/H
Trademark:
SYQ
Transport Package:
Standard
Specification:
GMP
Origin:
Shanghai
HS Code:
8422303090
Type:
Preparation Machinery
Finished Dosage Form:
Capsule
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

Application
Pharmaceutical medicine, and chemicals (powder, Pellet, granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.

Features
a. Touch Screen, PLC branded SIEMENS.

Capsule vacuum positioned mechanism to make the capsule qualified over 99%.

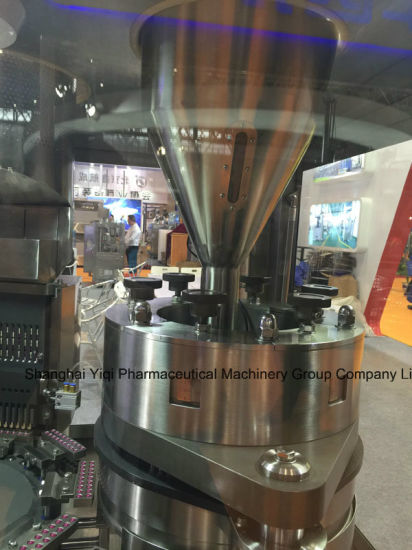

c. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
d. Easy speed selection and closed capsule length adjustment.
e. Electrical Appliance control system, with CE approval.
f. Quick and accurate part changing and set up, easy removal rotary table and ring carrier assembly.
g. Fully closed dosing stations and rotating plate.
Enlarged cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.

Technical parameters:

Model	NJP-2000C-2
Working Capacity	2000 capsules/min
No. of Dose	18
Size of Hard Capsule	00#, 0#, 1#, 2#, 3#, 4#
Total Power	8KW
Main Motor	2.2KW
Vacuum pump	2.2KW

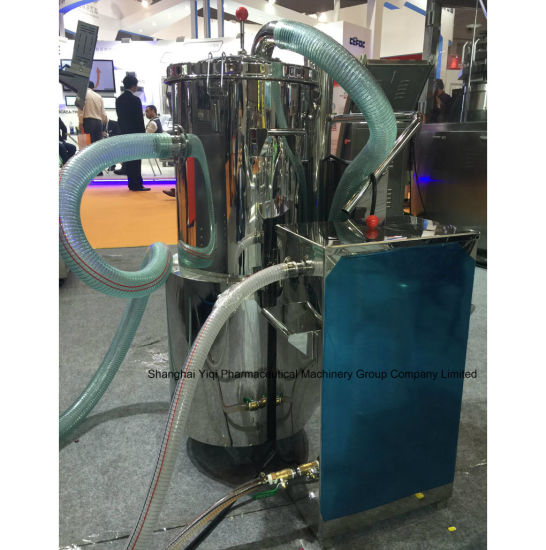

Dust collector	3KW
Noise	<80DB
N.Weight	1500Kg
Machine Dimension	1010mm (L) x 10800mm(W) x 2000mm(H)
Accuracy	+ 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity.
