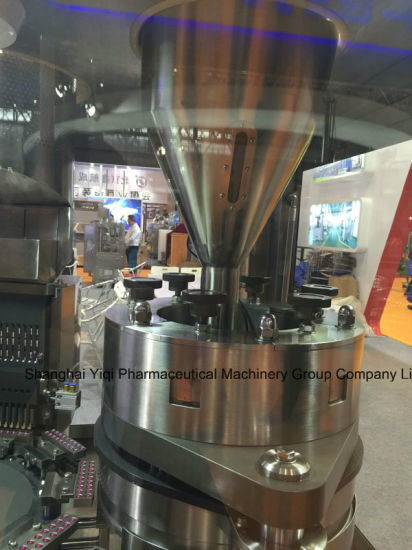

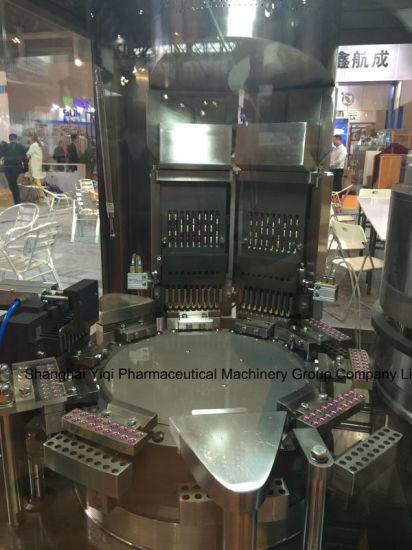

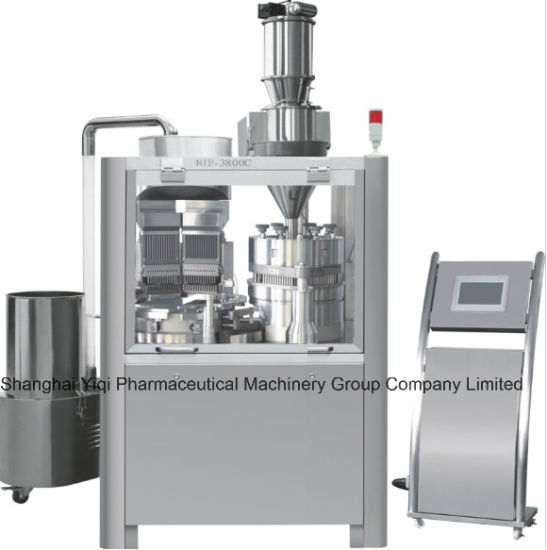

Automatic Hard Capsule Encapsulation Machine (NJP-6000C)

Quantity:
  • NJP-6000C
  • Shanghai, China
  • 5000
  • L/C, T/T, Western Union
NJP-6000C is a mass production equipment.
The high precision fully automatic capsule Filling Machine is used to fill powderor granules in the form of slug in hard gelatin capsules.
It is working with high speed, a high performance that incorporates latest international
design and is built with precision using most appropriate material and up to date manufacturing systems. Different models are available for various output requirements. It is designed to cater various formulations with option to fill powder, granules and pellets.

Its automatic filling demands very high accuracy besides high productivity, ease of operation
and minimum maintenance. This machine has been specifically designed to meet all these
Requirements.

Features
1. Tamping Mechanism enables capsules to be filled with a weight variation of 2 %.

2. Faulty capsule and filled capsule ejection stations with individual air controls.

3.Quick changeover for a variety of capsule sizes with minimal follow-up adjustments and
maintenance requirements.

4. closed system protect your product from contaminants, and allow a dust-free production
environment for better health and easier cleaning

5.Adjustable gap between dosing disk and tamping plate ensures minimum spillage of powder.

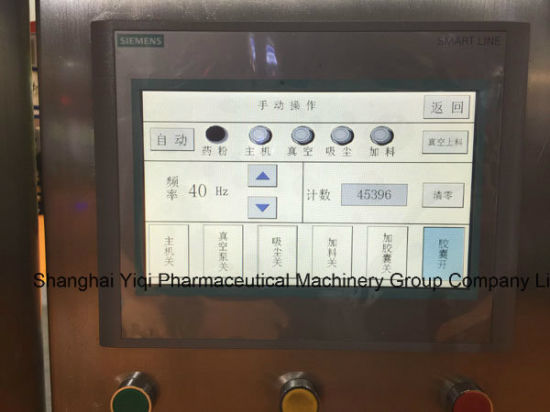

6. PLC & Touch screen control system.

7.All contact parts are made of corrosion resistant stainless steel 316.

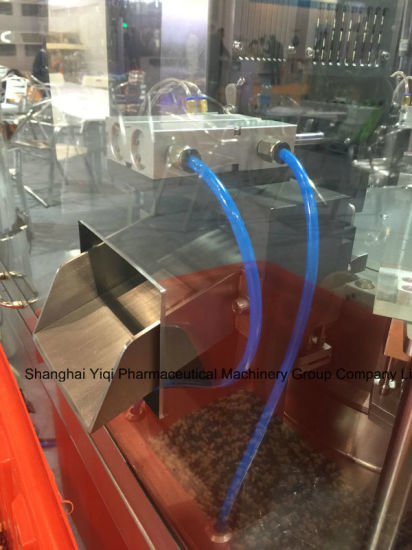

8.Automatic vacuum removal of the air in the dosing tube to give more accurate weight of
the filled capsules.

9. Add the extra function of capsule control switch. Control the capsule outside of the machine that makes more safe

10.  click-moving control system, easy operation and clearness.
11. Safety System
Machine stops automatically in the event of following problems through safety interlock system.
· No capsules
· No powder/no granules
· Door open

Technical Parameters
ModelNJP-6000C
Max.Capacity360000 capsules/hr
No. of segment bores43
Machine weight3000kg
Machine Dimension1500*1250*2200mm
Power supply380V,  50/60 HZ (For customer to designate)
Total power11kw
Vacuum-0.02~0.06Mpa
Compressed air1pressure 0.3-0.4Mpa   air consumption 0.2m³ /min
Noise< 80DB (A)
Filling percentageEmpty capsule 99.9%
Full capsule over 99.5%
Capsule size00#-5#
Filling± 3%-± 4%
suitable for fillingpowder ,granule ,pellet , mini tablet
