Pharmaceutical Auxiliary Hydraulic Pressure Feeding Lifting Machine

Quantity:
  • 5000/Y

  • Standard Export Packaging

  • L/C, T/T, Western Union

  • NTS series

  • Customized

  • New

  • 1 Year

  • It Is an Auxiliary Machine for Capsule Filler

  • syq

  • GMP

  • China

  • 8419820090

  • Preparation Machinery

  • Capsule

  • Precision

  • GMP, ISO

  • 380V

  • Non-Computerized

It is an important auxiliary machinery for pharmaceutical, chemical or food industry for lifting material and feeding.

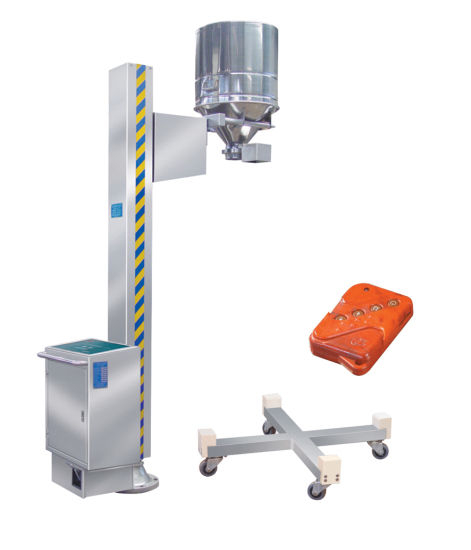

This hydraulic Pressure Compression Lift Feeding Machine is mainly applied to the transfer and lift of solid materials such as powder and granules used in pharmacy and chemistry industry enterprises, etc. It is matched with the main workmanship equipment to use such as blending machine, granulator, tablet press, film coating machine, capsule filling machine, etc., optimizing production workmanship procedure, preventing powder pollution and deducing labor intensity as well.
Any parts touching the material and exposed surfaces of the machine are made of quality glaze stainless steel, with glabrous, even and smooth inner and outer walls, without dead angle, so as to comply with the requirements of medicine GMP standards.


Models and Specifications Unit NTS-50 NTS-100
Max. Lift Weight (Hooper is not included) Kg 50 100
Max. Height of Hooper from the ground H1 mm 1800 2900
Max. Height of the Machine H2 mm 3020 3800
Height of the Machine (compression) H mm 2020 2010
Load Distance A mm 450 450
Motor Power of Oil Pump KW 0.75 0.75
Quantity of Oil Used L 7.7 7.7
Overall Dimensions (compression) mm 1630×660×2020 1630×660×2010
