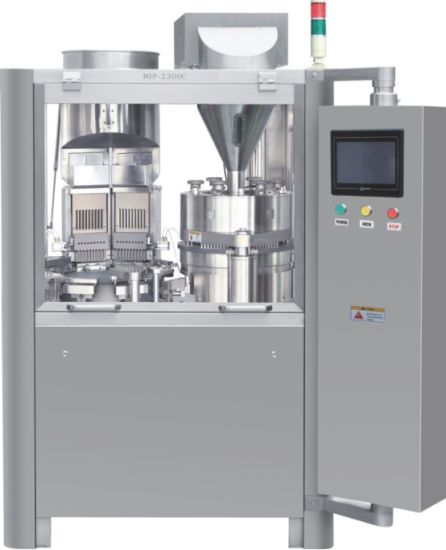

High Precision Fully Automatic Capsule Filling Machine (NJP-2300)

Quantity:
  • Shanghai, China
  • 600/Y
  • L/C, T/T, Western Union
  • NJP-2300C
  • Non-Customized
  • New
  • 1 Year
  • PLC & Touch Screen
  • 1500kg
  • th
  • Wood Case
  • 2300pcs/min
  • Zhejiang Province
  • 8479820090
  • Pharmaceutical Packaging Machinery
  • Capsule
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
This capsule filler is applied to fill powder or granules in the form of slug in hard gelatin capsules.

These are high speed, a high performance machine that incorporates latest international
design and is built with precision using most appropriate material and up to date manufacturing
systems. Different models are available for various output requirements.

It isdesigned to cater various formulations with option to fill powder, granules and pellets.


Its automatic filling demands very high accuracy besides high productivity, ease of operation
and minimum maintenance. This machine has been specifically designed to meet all these
requirements.

Features

1. Tamping Mechanism enables capsules to be filled with a weight variation of 2 %.

2. Faulty capsule and filled capsule ejection stations with individual air controls.

3.Quick changeover for a variety of capsule sizes with minimal follow-up adjustments and
maintenance requirements.


4. closed system protect your product from contaminants, and allow a dust-free production
environment for better health and easier cleaning


5.Adjustable gap between dosing disk and tamping plate ensures minimum spillage of powder.

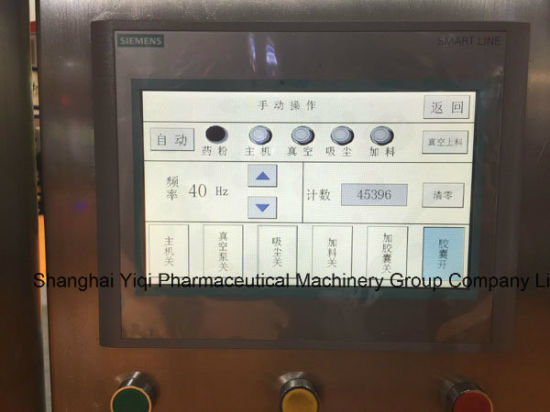

6.Unit goes with touch panel, control by PLC.

7.All contact parts of medical powders are made from a corrosion resistant stainless steel 316.

8.Automatic vacuum removal of the air in the dosing tube to give more accurate weight of
the filled capsules.

9. Add the extra function of capsule control switch to Control the capsule outside of the machine that makes more safe.

10. click-moving control system, make and easier operation and clearness.

Technical Parameter

Model 2300C
Output (pcs/h) 138000
Weight (kg) 1500
Size(mm) 1120×1020×2000
Power supply 380/220V 50HZ
Motor power Motor 2.2KW, vacuum 2.2KW , dust collect 3KW
NO.of bores 18
Vacuum 63m3/h-0.04-0.08Mpa
Dust collect 24.5Kpa 210m3/h
Noise <80DB(A)
Filling percentage Empty capsule 99.99%, full rate 99.5%over
Applicable for 00,0,1,2,3,4,5#
Dose deviation ±2%-±3%
Control system Touch screen,transducer, PLC...
Material All material contact parts use SUS316
Suitable for filling powder ,granule ,pellet ,mini tablet

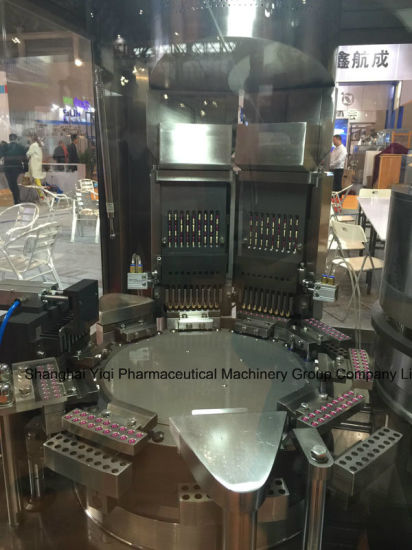

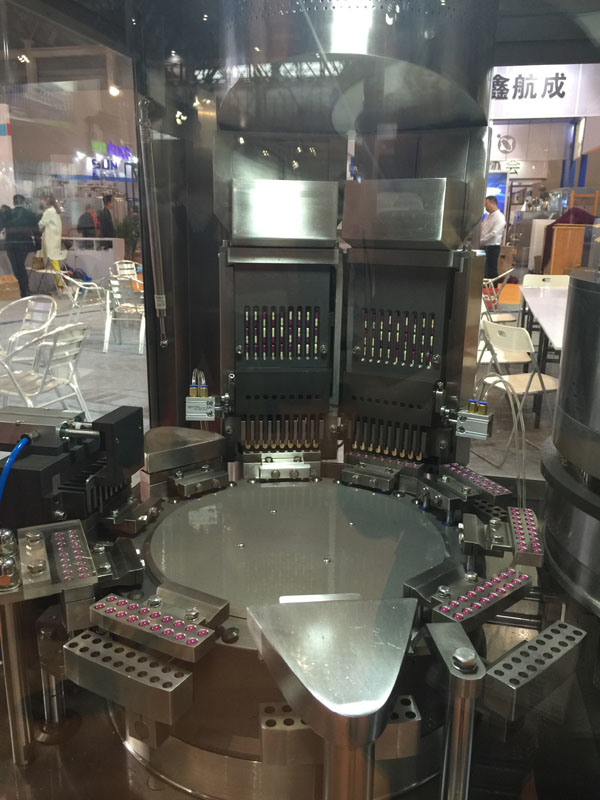

High Precision Fully Automatic Capsule Filling Machine (NJP-2300)
More features and innovation:


1 with RU125 cam index box instead of RU100, increased the configuration level, improved the machine stability and using life.
  • Moulding with 18 holes and reached the capacity of 2300pcs/min, the actual working capacity could be 120000pcs/h and it could keep continuous working over 18hrs per day.

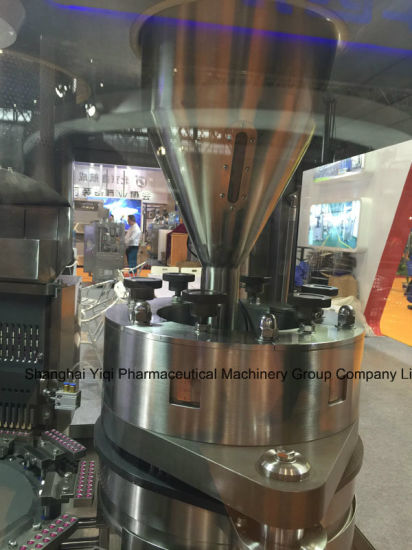

  • Enlarged the dosing disc 3cm, and efficiently improved the filling precision and the material filling evenly in the dosing disc, which is higher than national standard.
  • Adding with dust proof ring on the mould rotation table, makes sure sealing well during machine running and reduced the maintenance problem.
  • By the reference position of lower dosing disc,with 3 dimensional adjustment structure, reduced the natural deformation of dosing disc and copper pad disc, in that case, the distance even and reduced the leaking of materials. It makes the installation and cleaning easy and convenient, improved the working efficiency.
  • Capsule opening and locking are controlled automatically, safely and convenient.
  1. with manual control, easy for operation and mould cleaning.

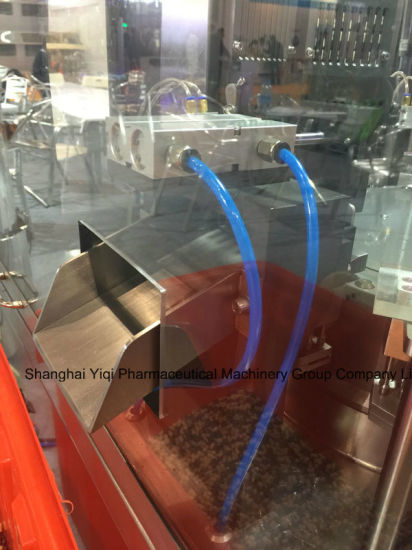

  2. Broken capsule ejection and separating with medicine materials. Medicine materials could be recycled.
  3. Man-machine operation. Automatic warning for material lacking, and automatic shut down for machine error.
  4. Designed quantity sensing system. With showing of filling quantity on the touch screen.
  5. Could be option: the printing function for manufacturing date, batch numbers, and production quantity etc.
