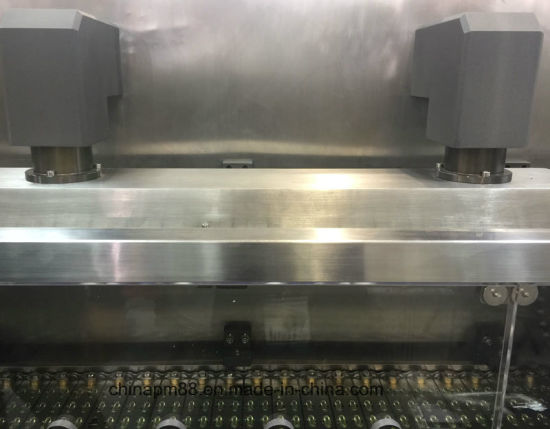

This machine is a new design of hard capsule filling machine for oil, paste, solution, suspension liquid filling in hard capsules. It is widely applied in pharmaceutical, food, and health care product manufacturing industry.
It is a high precision liquid filling machine for hard capsules, the precison control is within ±1.5% with high quality components imported from Japan, Germany.

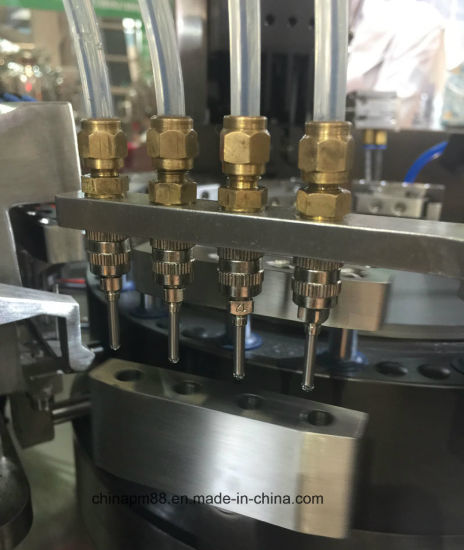

This machine system is with servo feed system, it adopts automatic frequency control of motor speed, new convenient dosing filling system.

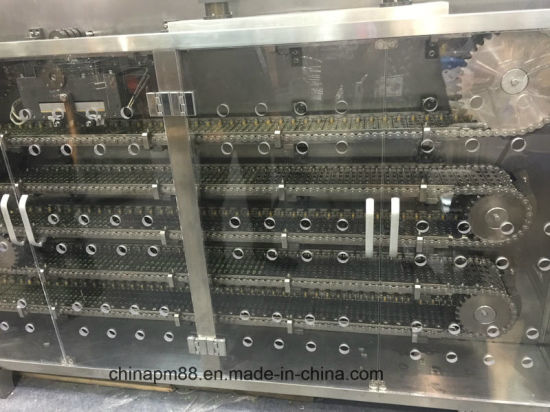

The sealed capsules will be cooled in a long working route with an air cooling machine.
The finished products is well sealed and cooled and never stick with each other.
The machine is PLC controlled, easy operation.
Technical Parameters: | Working capacity | 300pcs/min |
| Filling Material | Oily liquids, solution, suspension, or paste |
| Die number | 6 |
| Capsule type | 00-3# gelatin capsules, methylcellulose capsules, vegetable capsules |
| Power supply | 380V, 50Hz, 3P (or customized) |
| Total power(kw) | 6 |
| G. W(kg) | 1200 |
| Overall dimensions(mm) | 3800*900*1700 |
