Application

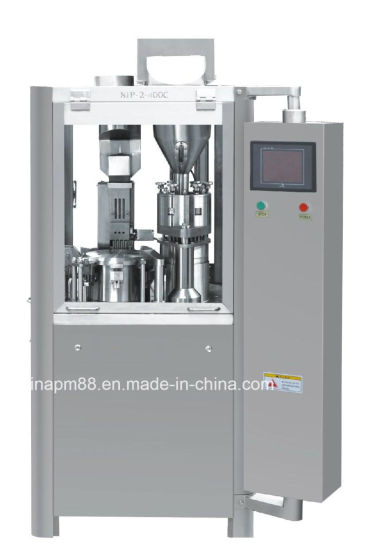

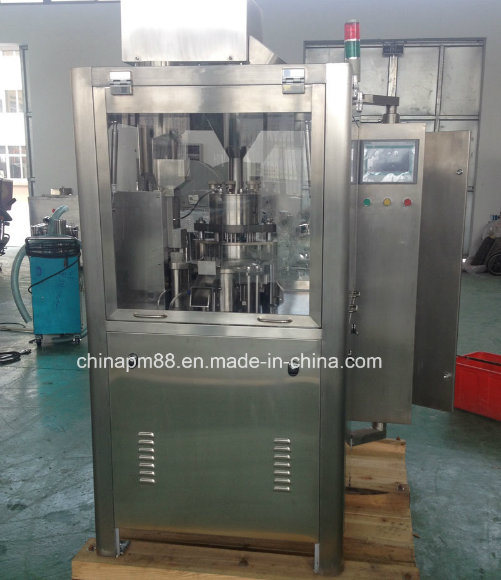

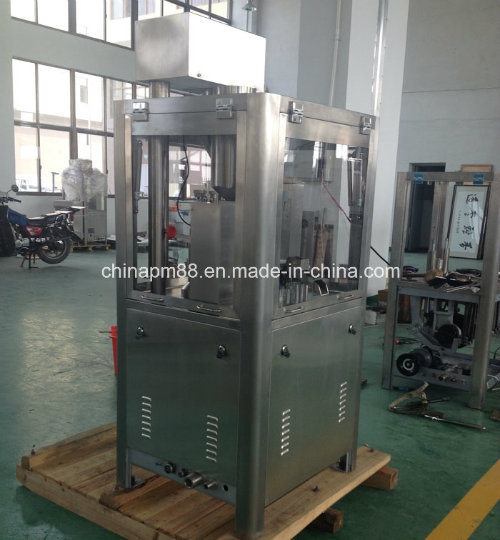

This model NJP-400 is a new design and it is widely applied by the pharmaceutical scientific researching institute, hospital, and small-scaled pharmaceutical factory. It is suitable to fill the medicine, and chemicals (powder, pellet, granule, pill) in to hard capsules, also can be used to fill vitamin, foodstuff and animal drug, etc.
It has been replacing the semi-automatic capsule filling machine with its high working efficiency and the outstanding features step by step.
Salient Features
1. Electrical Appliance control system approved to CE, and international standard.
2. Fully closed rotating table and dosage stations for integration of the whole capsule filling plants, which conforms to GMP norms.

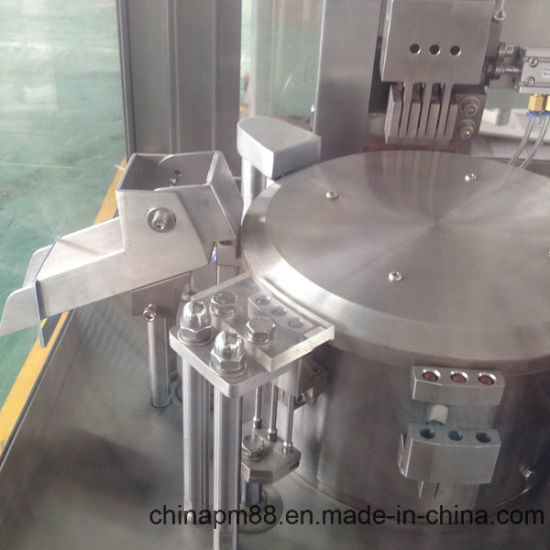

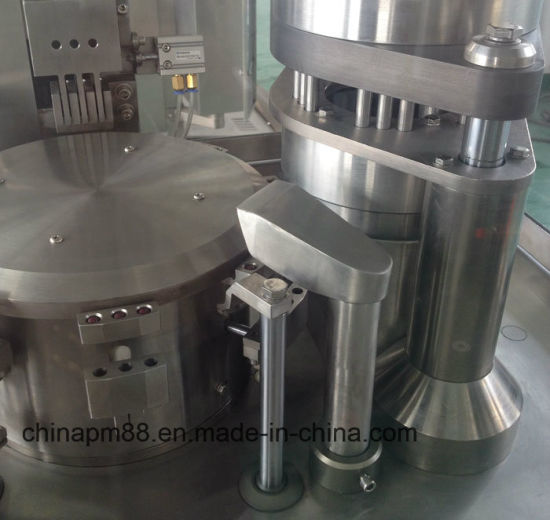

3. Large cam mechanism keeps the rotating table of mould together with the whole equipment running in balance, and completely guarantees the machine operating with highest precision and accuracy.

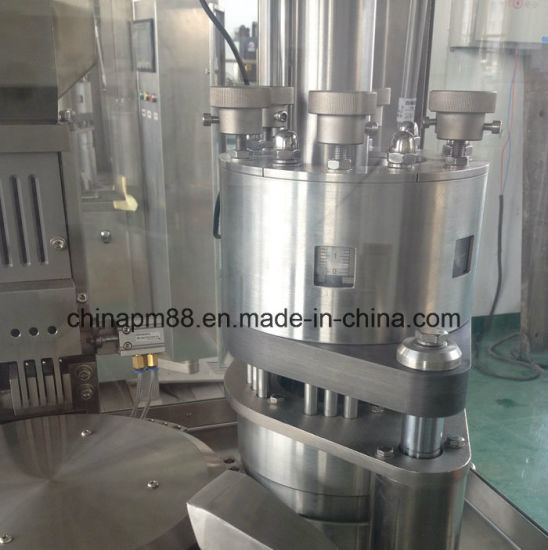

4. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.

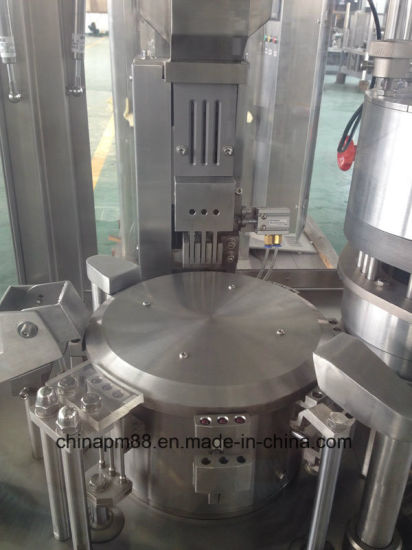

5. Quick and accurate part changing system, easy to remove rotary table and ring carrier assembly.
6. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
7. Touching-Screen, PLC program control panel with LCD.
8. Easy speed selection and closed capsule length adjustment.
| Model | NJP-400 |
| Capacity | 400 capsules/min |
| No. of Dose | 3 |
| Hard Capsule Size | 00#, 0#, 1#, 2#, 3#, 4# |
| Total Power | 3Kw |
| Overall Weight | 700Kg |
| Machine Dimension | 730mm. (L) x 950mm(W) x 1700mm(H) |
| Accuracy | + 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity. |
