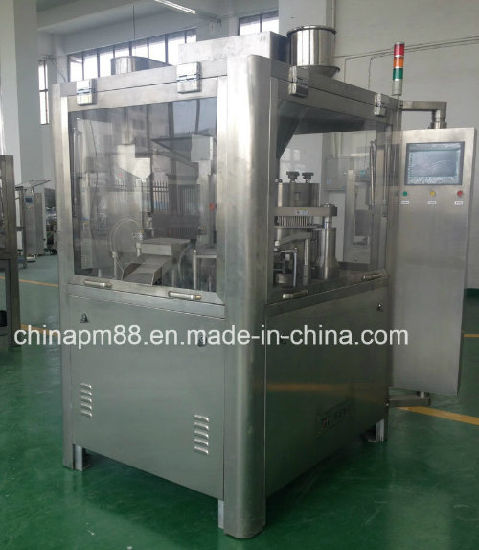

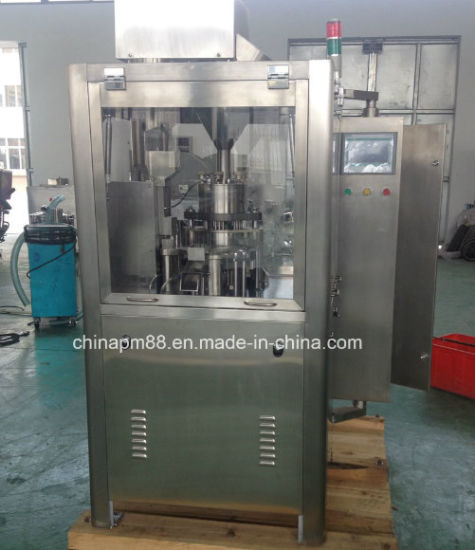

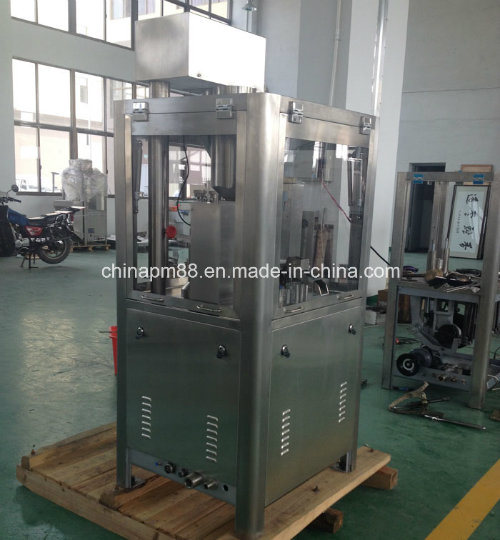

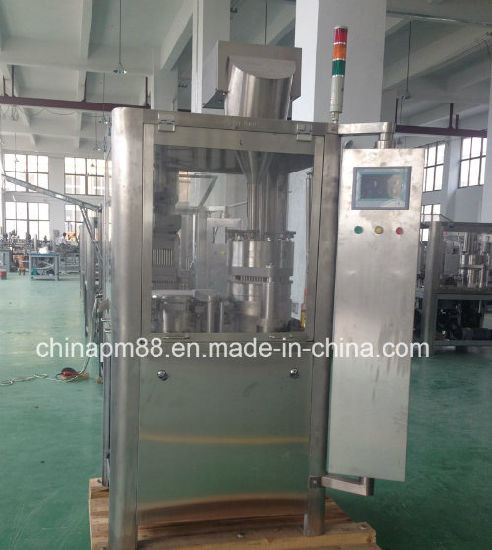

China Encapsulation Machine Fully Automatic Small Capsule Filler (NJP-200)

Quantity:
  • Shanghai, China
  • 5000PCS/Y
  • L/C, T/T
  • NJP-200, 400
  • Customized
  • New
  • 1 Year
  • Designed for Small Scaled Manufacturing
  • syq
  • Standard Packaging for Export
  • CE GMP
  • China
  • 8419303090
  • Pharmaceutical Packaging Machinery
  • Capsule
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized

This model is designed for pharmaceutical scientific researching institute, hospital, and small-scaled pharmaceutical factory.It is applied to fill the medicine or chemicals (powder, pellet, granule, pill) into hard capsules, also can be used to fill vitamin, foodstuff and animal drug, etc.
It has been replacing the semi-automatic capsule filling machine with its high working efficiency and the outstanding features.

Salient Features

1.Electrical Appliance control system approved to CE, and international standard.
2.Fully closed rotating table and dosage stations for integration of the whole capsule filling plants, which conforms to GMP norms.
3.Large cam mechanism keeps the rotating table of mould together with the whole equipment running in balance, and completely guarantees the machine operating with highest precision and accuracy.
4.Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
5.Quick and accurate part changing system, easy to remove rotary table and ring carrier assembly.
6.Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
7.Touching-Screen, PLC program control panel with LCD.
8.Easy speed selection and closed capsule length adjustment.

Technical Parameters:

Model NJP-200C
Capacity 200 capsules/min
No. of Dose 2
Hard Capsule Size 00#, 0#, 1#, 2#, 3#, 4#
Total Power 3Kw
Weight 700Kg
Overall Dimension 580 x 900 x 1700mm(H)
Accuracy + 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity.


Patent Design of
Fully Closed Rotating Table & Fully Closed Dosage Station.

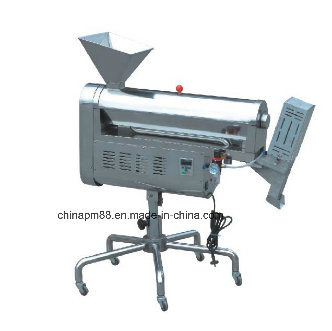

THIS MACHINE COULD WORK WITH CAPSULE POLISHING MACHINE:

China Encapsulation Machine Fully Automatic Small Capsule Filler (NJP-200)

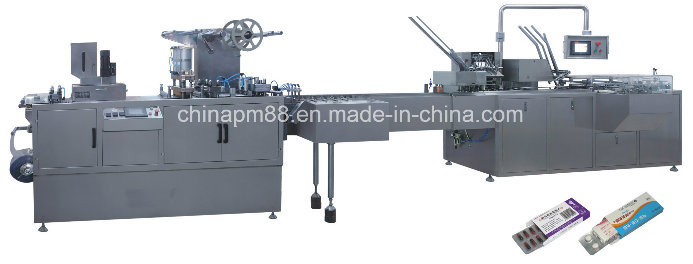

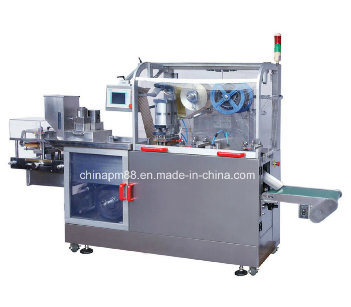

AND BLISTER PACKAGING MACHINE:

China Encapsulation Machine Fully Automatic Small Capsule Filler (NJP-200)
AND CARTONING MACHINE:

China Encapsulation Machine Fully Automatic Small Capsule Filler (NJP-200)
