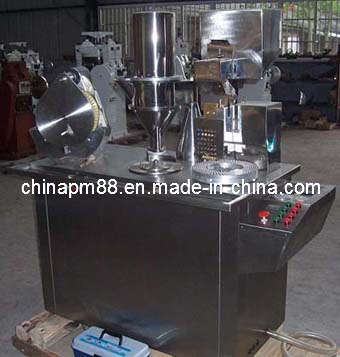

The DTJ-C Semi Automatic Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance.Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the functions of capsule positioning, separation and locking etc.Taking place of manual capsule-filling, it can reduce labor intensity and raise productivity.Its filling amounts are accurate and up to sanitary standards for pharmaceutics.
The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump.
China machine-made capsules or the imported capsules are applicable to this machine, with which the finished product qualification rate can be above 97%.
Specifications:
1.Capacity:25, 000 capsules/h
2.Applicable capsules:0#, 1#, 2#, 3# machine-made standard capsules
3.Filled medicine type:Not adhesive or wet powders and very small granules
4.Total power:2.12Kw
5.Air pressure:0.03m3/min, 0.7MPa

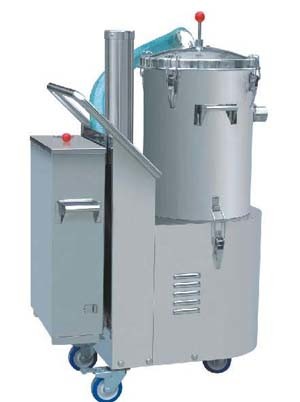

6.Vacuum pump:Evacuating rate:40m3/h
7.External dimensions(m):100*780*1600 (L*W*H)
8.Weight:330Kg/450kg

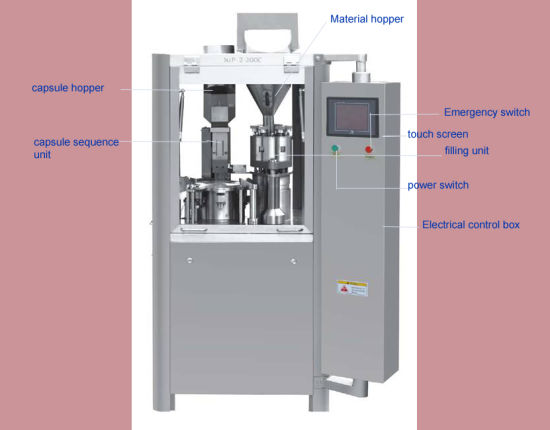

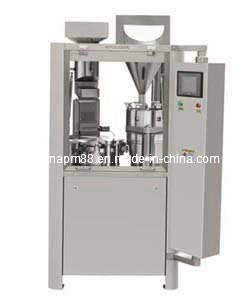

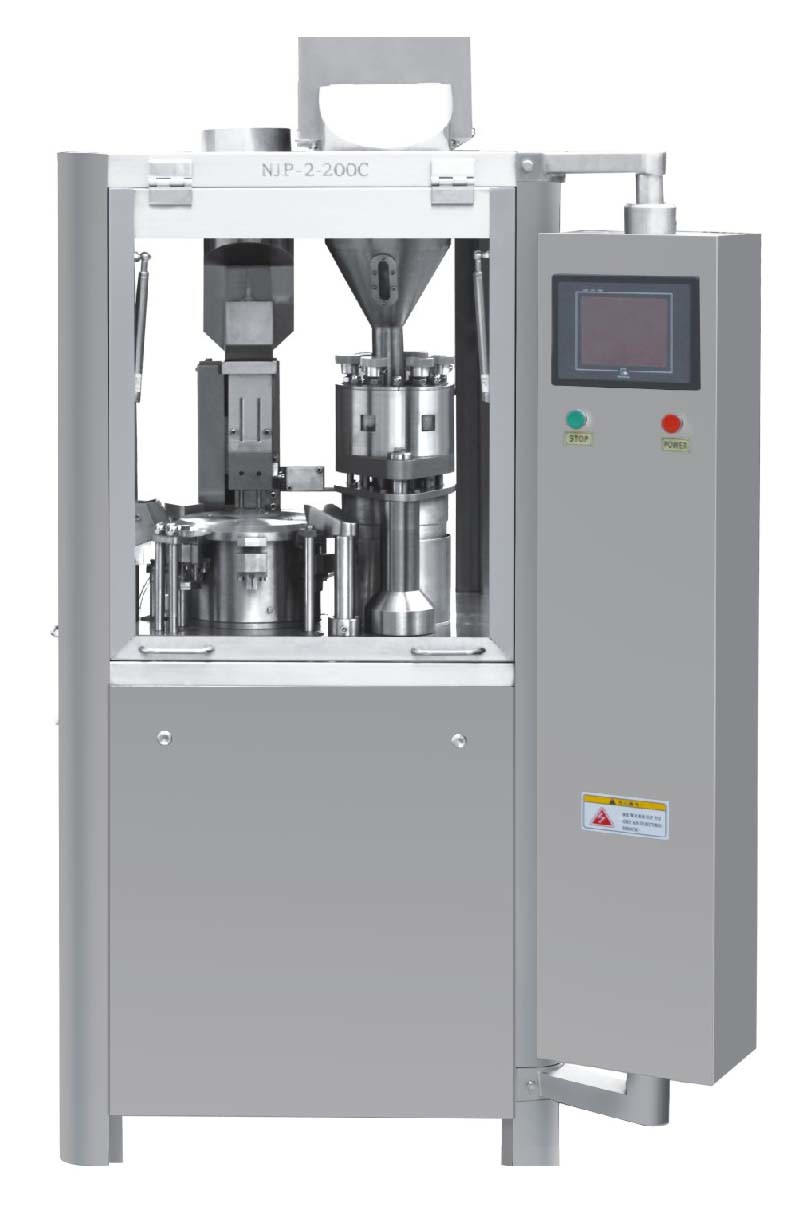

You can also choose: NJP-2-200C
