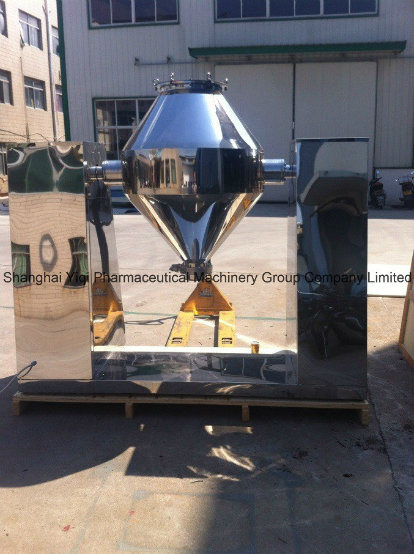

W Series Double Cone Stirring Blender Machine (W-300, W-500))

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
1000/Y
Payment Terms:
L/C, T/T, Western Union
Model NO.:
W-300, 500, 1000, 2000
Customized:
Non-Customized
Condition:
New
Warranty:
1 Year
Fully Made of Stainless Steel:
Easy to Feeding and Discharging Products
Trademark:
syq
Transport Package:
Wooden Case
Specification:
GMP
Origin:
Jiangsu Province
HS Code:
8479899090
Type:
Preparation Machinery
Finished Dosage Form:
Granules
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

Application
Th is model double cone mixer is also called conical blender, which is designed on the basis of Japan technology and combined with our more than 18 years of manufacturing experiences with improvement of high efficiency and easy operation. It is Widely used in feed, food, pesticides, dyes, pigments, plastic, resin, chemical raw materials, spices, cosmetics, medical and all kinds of powder additives and other hybrid, and can also be applied to the powder blending with a little liquid.

Working principle and features

It is for the blending of materials with different gravity or powder adding with some other aditives. Using internal and external rotation blend ing with high evenness. The mixing barrel can be tilted to any a ngle, convenient for discharging products. With automatic timer for setting of 0-60minutes working and stop automatically. Discharging butterfly valve is made of stainless steel to avoid dust flying and powder leaks. GMP Standard.
The diffusion principle of gravity blending , pressure feedback of material will be cu t into pieces.
The machine is GMP Standard. The Blending chamber is made of high-quality stainless steel inside and outside of the wall by the fine polishing processing, which make sure the whole process of material blending is without any pollution, low consumption, convenient cleaning.The operation is simple, easy to clean, suitable to G.M.P food, pharmaceutical factories. F or l arge volume of blending, vacuum feeding system can be configured to improve work efficiency and improve the working environment.

Specifications of S-Serials

model	W-180	W-300	W-500	W-1000	W-1500	W-2000	W-2500	W-3000	W-4000
Full capacity(m3)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0
(kg/h)	40	60	100	200	300	400	500	600	800
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Rotation (rpm)	12	12	12	12	12	12	12	7.8	7.8
Power (kw)	1.1	1.1	2.2	4	4	7.5	7.5	7.5	11
Dimension (mm)	1400×800 ×1850	1685×800 ×1850	1910×800 ×1940	2765×1500 ×2370	2960×1500 ×2480	3160×1900 ×3500	3386×1900 ×3560	4450×2200 ×3600	4750×2500 ×3680
Rotation (mm)	1850	1850	1950	2460	2540	3590	3650	3700	3730
Weight (kg)	280	310	550	810	980	1500	2150	2500	3200
