High Quality Stainless Steel Corn Grain Flour Powder Mixer

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
400PCS/Y
Payment Terms:
L/C, T/T, Western Union
Model NO.:
WLDH
Layout Type:
Horizontal
Mixing Drum Shape:
Ribbon Blades
Additional Capabilities:
Drying
Operating type:
Continuous Operating
Condition:
New
for Powder Mixing and Blending:
for Pharmaceutical and Chemical Industry
Trademark:
syq
Transport Package:
Strong Wooden Case
Specification:
ISO
Origin:
Jiangsu
HS Code:
8479899090
Mixer Type:
Double Ribbon Mixer
Working:
Ribbon Blender
Stirring Type:
Forced
Application:
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Certification:
CE, ISO
Application Area:
Pharmaceutical

Product Description

The ribbon mixer is widely applied for the mixing of viscous or adhesive powder materials, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.

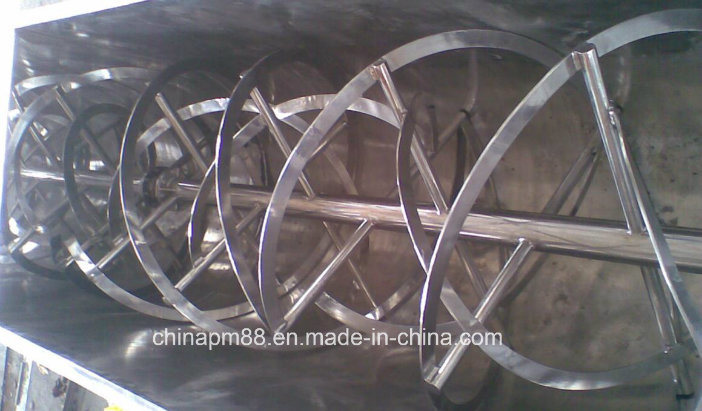

This high efficient ribbon blender is composed of container, screw stirring paddles and transitional parts; The screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre from two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to from convection mixing.
High Quality Stainless Steel Corn Grain Flour Powder Mixer

Technical Parameters:

SPECS m3	0.2	0.5	1	1.5	2	3	4	6	8	10
Working capacity: kg	80-100	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
POWERKW	3	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
G.W.: kg	450	900	1800	2500	3200	4100	5100	6300	7500	8900
