Stainless Steel Blender with 200kg Capacity Powder Mixer

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 1000
Payment Terms: L/C, T/T
Model NO.: W
Layout Type: Horizontal
Mixing Drum Shape: Conical
Operating type: Cycle Operating
Condition: New
Volume: 600L
Mixing Time: 10mins
Work with: Powder Filling Machine
Could Work Together with: Granulator

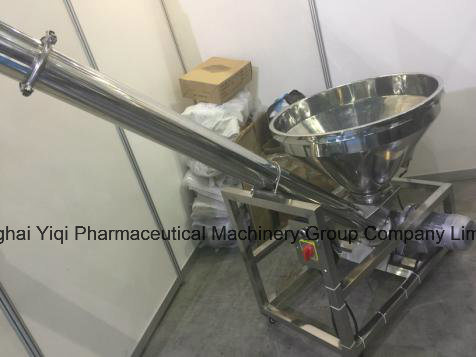

Feeding with: Vibration Lift Feeder
Could Mix: Dry Powder or Granules
It Can Blend: Dry Material or Dry Material and a Little Liquid
Trademark: SYQ
Transport Package: Wood Pack
Specification: 1-5CBM
Origin: Shanghai
HS Code: 8479899090
Mixer Type: Powder Mixer
Working: High Speed Mixer
Stirring Type: Diving
Application: Powder, Granules
Certification: CE
Application Area: Agricultural Chemicals

Product Description

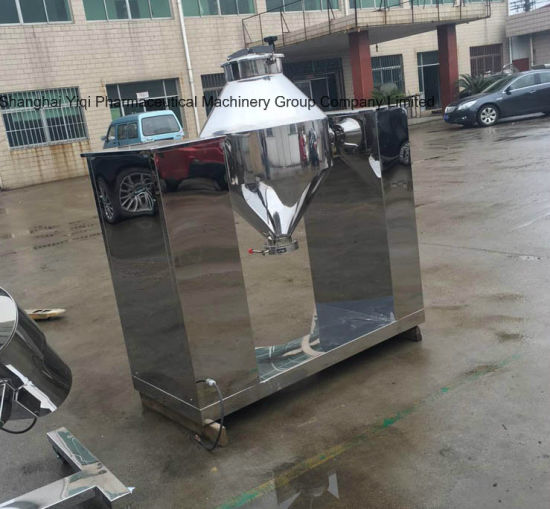

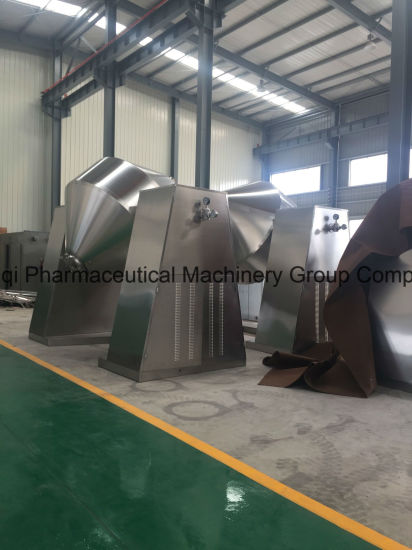

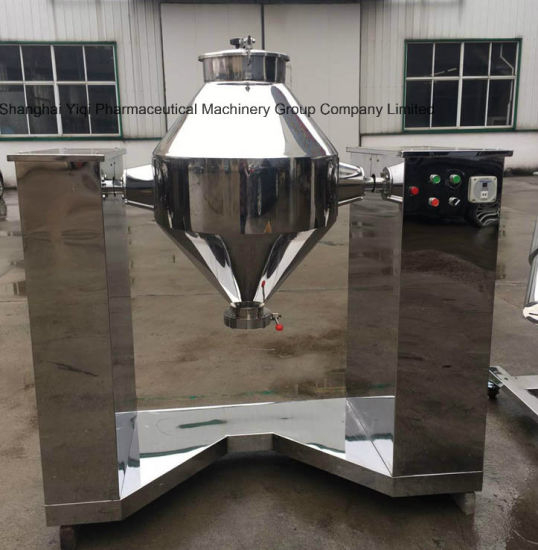

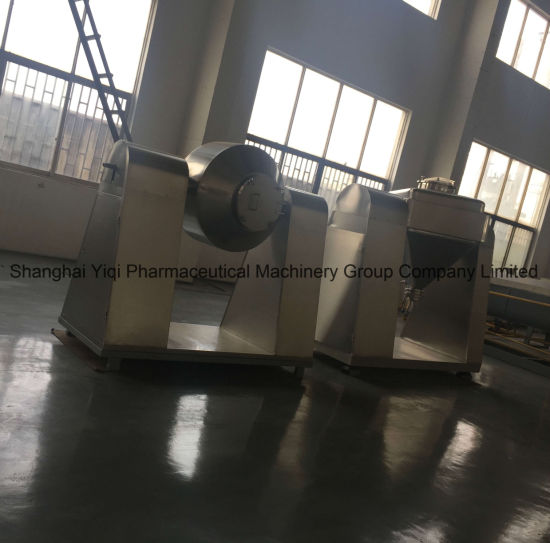

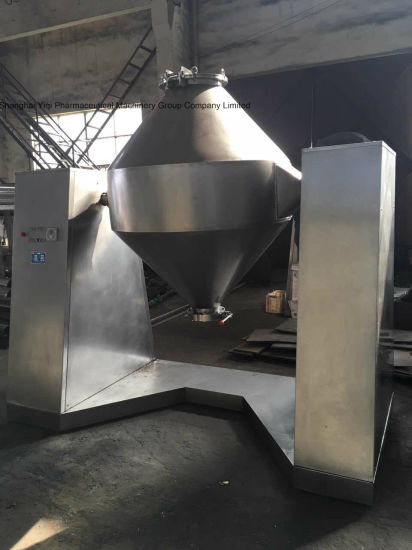

Double Cone Mixing Machine

Th is blender is designed on the basis of Japan technology and combined with our more than 18 years of manufacturing experiences with improvement of high efficiency and easy operation. It is Widely used in feed, food, pesticides, dyes, pigments, plastic, resin, chemical raw materials, spices, cosmetics, medical and all kinds of powder additives and other hybrid, and can also be applied to the powder blending with a little liquid.

Working principle and features

It is for the blending of materials with different gravity or powder adding with some other aditives. Using internal and external rotation blend ing with high evenness. The mixing barrel can be tilted to any a ngle, convenient for discharging products. With automatic timer for setting of 0-60minutes working and stop automatically. Discharging butterfly valve is made of stainless steel to avoid dust flying and powder leaks. GMP Standard.
The diffusion principle of gravity blending , pressure feedback of material will be cutted into pieces.
The machine is GMP Standard. The Blending chamber is made of high-quality stainless steel inside and outside of the wall by the fine polishing processing, which make sure the whole process of material blending is without any pollution, low consumption, convenient cleaning.The operation is simple, easy to clean, suitable to G.M.P food, pharmaceutical factories. F or l arge volume of blending, vacuum feeding system can be configured to improve work efficiency and improve the working environment.

M ain technical parameters:

Model	W-200	W-500	W-1000	W-1500	W-2000	W-2500	W-3000
Full volume(m3)	0.2	0.5	1	1.5	2	2.5	3
Working capacity (kg/batch)	40-80	100-200	200-400	300-500	400-800	500-1000	600-1200
Mixing time(minute)	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Speed(r/m)	12	12	12	12	12	12	7.8
Power(kw)	1.1	2.2	4	4	7.5	7.5	7.5
Overall dimensions (mm)	1500×650 ×1850	1910×800 ×1940	2700×1000 ×2370	2900× 1000 ×2600	3200×1300 ×3200	3386×1900 ×3560	4450×2200 ×3600
