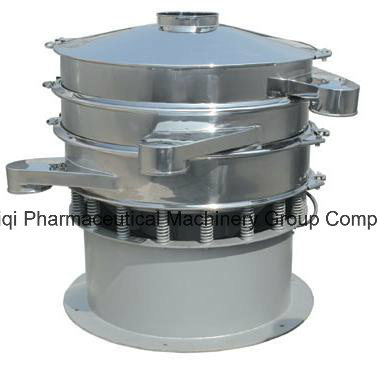

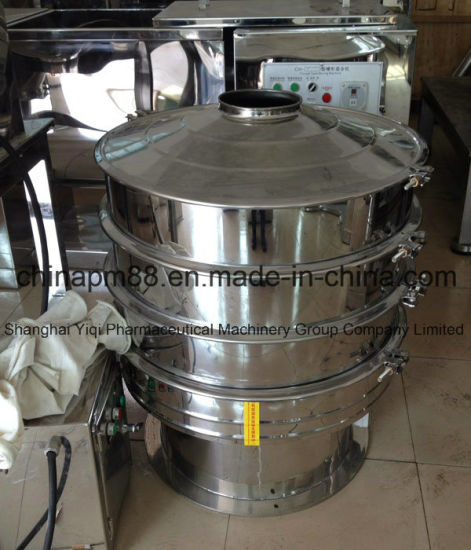

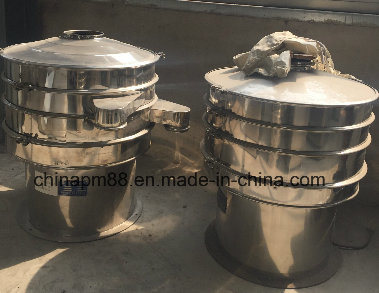

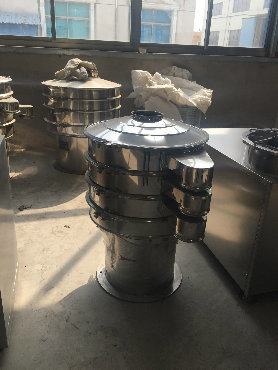

Auxiliary Machinery of Powder Mixing and Packing Line Vibration Sifter Machine

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 6000
Payment Terms: L/C, T/T
Model NO.: ZS Series
Shaft Number: Single
Running Track: Circular Vibrating Screen
Supporting Device: Coil Spring
Warranty: 4 Years
Customized: Non-Customized
Condition: New
Weight: 500kg
Trademark: SYQ
Transport Package: Wood
Specification: 800mm diameter
Origin: Shanghai
HS Code: 8479820090
Type: Circular
Function: High Frequency Vibrating Screen
Transmission Structure: Electromagnetic Shaker
Usage: Mine Shaker, Experiments Shaker, Lightweight Fine Shaker
Works: Vibration
Object: Food Processing

Product Description

This machine is used in pharmaceutical, chemical and food industries. It is ideal filtering & sifting machine for raw material of mixture of powder, small particles and bigger granule and the continuous production process.

Feature:

This machine is composed of chute, oscillating chamber, shafts connector and motor. There is eccentric wheel, rubber parts, major shaft, bearings and so on. It has many advantages such as compact structure, small size, less powder, low noise, high productivity, low energy consumption, easy-move & maintenance and so on.

Technical parameters:

Model	ZS-350	ZS-515	ZS-650	ZS-800	ZS-1000	ZS-1500
capacity kg/h	40-500	60-600	80-800	150-1200	300-2000	350-2800
meshes	12-200	12-200	12-200	12-200	5-325	5-325
Power(kw)	0.55	0.55	0.55	0.75	1.5	2.2
Speed (rpm)	1380	1370	1370	1500	1500	1500
overall Dimension(mm)	540×540×1060	710×710×1290	880×880×1350	1000×1000×1400	1100×1100×1200	1600×1600×1200
Weight(kg)	100	180	250	300	350	400
