High Quality China Made Powder Mixer Machine

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 8000
Payment Terms: L/C, T/T, Western Union
Model NO.: dsh
Capacity: 180-6000kg
Mixing Time: 4-10minutes
Trademark: SYQ
Transport Package: Polywood Case
Specification: 0.3-10CBM
Origin: Shanghai
HS Code: 8421919
Type: Preparation Machinery
Finished Dosage Form: Granules
Precision: High Precision
Certification: CE, ISO
Voltage: 380V
Condition: New

Product Description

It is widely used in chemical, fertilizer, pesticides, dyes, breeding, food, pharmaceutical, health food, bioengineering and nuclear materials industries.Its is a double screw mixer which is suitable for powder and powder, powder and liquid as well as liquid and liquid mixing. This twin screw mixer has a good adaptability to coarse, fine and ultrafine powder, fibers or flakes mixing.

Description
DSH double screw mixer integrates powder, granule and liquid mixing. The rotation of twin screw mixer is completed by a set of motors and cycloid reducers. With asymmetric mixing by two screws, the stirring range will be expanded and stirring speed will accelerate.

Features
1. Twin screw blender is greatly adapted to mixed materials.
2. This machine has no over-hearting phenomenon to sensitive materials.
3. Double screw mixer will not grind particulate materials.
4. This twin screw mixer will not produce segregation phenomenon when it comes to poor proportion materials.

Main Technical Parameters of Double Screw Mixer

Model	DSH0.3	DSH0.5	DSH1	DSH2	DSH4	DSH6	DSH10
Overall Volume (m3)	0.3	0.5	1	2	4	6	10
Loading Factor	0.4 to 0.6
Particle Size of Mixing Machine (μm)	40 to 3000
Working Conditions	Under normal temperature and normal pressure, dust seal
Production Capacity of Each Time	180	300	600	1200	2400	3600	6000
Power of Mixing Machine (KW)	2.2	2.2	5.5	5.5	11	20.7	30.7
Mixing Time (min)	4 to 10 (Special materials determined by experiment.)
Total Weight (kg)	500	1000	1200	1500	2800	3500	4500

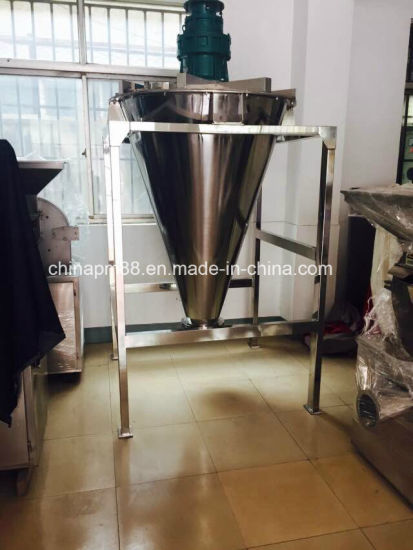

D SH Model Double Screw Conical Mixer
It is also named as DSH Series double screw cone mixer/double screw mixer / Helix Mixer/Nauta Mixer/ Pagoda shape mixer/vertical double screw cone mixer/ double screw conical mixer
