Pesticide Manufacturing Machine Chemical Mixing Machine

  • Shanghai, China
  • 8000
  • L/C, T/T, Western Union
  • dsh
  • Verticle
  • Conical
  • Cycle Operating
  • New
  • 180-6000kg
  • 4-10minutes
  • SYQ
  • Polywood Case
  • 0.3-10CBM
  • Shanghai
  • 8421919
  • Double Screw Cone Mixer
  • High Speed Mixer
  • Spiral
  • Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules, Powder and Powder
  • CE, ISO, CCC
  • Pharmaceutical

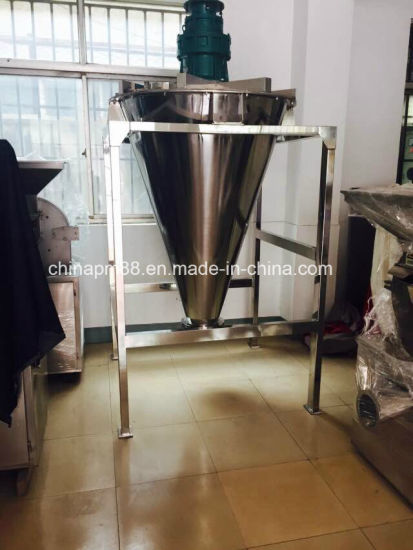

D SH Model Double Screw Conical Mixer
It is also named as DSH Series double screw cone mixer/double screw mixer / Helix Mixer/Nauta Mixer/ Pagoda shape mixer/vertical double screw cone mixer/ double screw conical mixer

DSH double screw mixer is suitable for powder and powder, powder and liquid as well as liquid and liquid mixing. It is widely used in chemical, fertilizer, pesticides, dyes, breeding, food, pharmaceutical, health food, bioengineering and nuclear materials industries. This twin screw mixer has a good adaptability to coarse, fine and ultrafine powder, fibers or flakes mixing.

DSH double screw mixer integrates powder, granule and liquid mixing. The rotation of twin screw mixer is completed by a set of motors and cycloid reducers. With asymmetric mixing by two screws, the stirring range will be expanded and stirring speed will accelerate.

1. Twin screw blender is greatly adapted to mixed materials.
2. This machine has no over-hearting phenomenon to sensitive materials.
3. Double screw mixer will not grind particulate materials.
4. This twin screw mixer will not produce segregation phenomenon when it comes to poor proportion materials.

Main Technical Parameters of Double Screw Mixer
Model DSH0.3 DSH0.5 DSH1 DSH2 DSH4 DSH6 DSH10
Overall Volume (m3) 0.3 0.5 1 2 4 6 10
Loading Factor 0.4 to 0.6
Particle Size of Mixing Machine (μm) 40 to 3000
Working Conditions Under normal temperature and normal pressure, dust seal
Production Capacity of Each Time 180 300 600 1200 2400 3600 6000
Power of Mixing Machine (KW) 2.2 2.2 5.5 5.5 11 20.7 30.7
Mixing Time (min) 4 to 10 (Special materials determined by experiment.)
Total Weight (kg) 500 1000 1200 1500 2800 3500 4500
