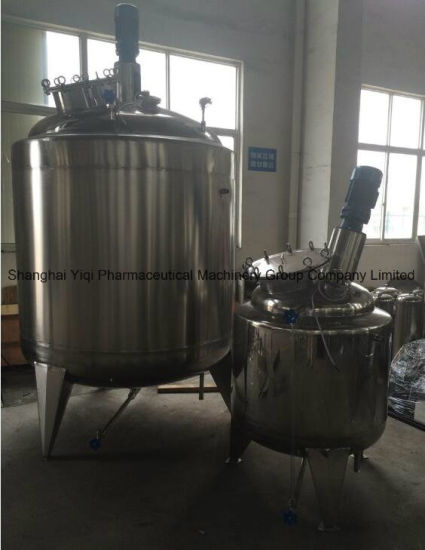

Stainless Steel Mixing Tank Reactor Ss304 1500L

Quantity:
  • Shanghai, China
  • 40000
  • L/C, T/T, Western Union
  • 1500L
  • Plate Tower Reactor
  • Hot Water Heating
  • Jacketed
  • Automatic
  • New
  • SYQ
  • Wooden Case
  • 17CBM
  • Shanghai
  • 8479909090
  • Tank Reactor
  • Stainless Steel
  • >1000L
  • Filling Tube
  • Negative
  • Paddle Agitator
Application:
  • Made of stainless steel 304/316
    2. Mixing milk, juice, or any other viscous liquid in the chemical, pharmaceuical, and food industry.
  • 3. The size and working capacity could be customized.
4. can mix liquid and power to make a mixture.
5. Mixing speed: can be with different fixed mixing speed.
6. D ue to some production reqeust, you may need the mixing tanks with variable speed , i n special request, VFD is for option.

Main technical parameters:
Voume of the mixing tank 1500L
Type of tank Vertical
Material SS304
Mixing type paddle agitator
Power of motor 1.5KW
Heating Miller plate steam heating
Temperature 130ºC
Thickness of innner wall 4mm
Miller plate thickness 3mm
Exterior cover steel 1.5mm
Heat preservation Pearlite
Manhole 50mm
Cleaning CIP washing head
Pressure instrument pressure gage
Valve Safety valve
Other parts Feeding and discharging ports, viewing light and mirror
G. W 400kg

Stainless Steel Mixing Tank Reactor Ss304 1500L
